APV USB-RT20G Real-Time Spectrum Analyzer with 100MHz Real-time BW
  • APV USB-RT20G Real-Time Spectrum Analyzer with 100MHz Real-time BW

APV USB-RT20G Real-Time Spectrum Analyzer with 100MHz Real-time BW

APV USB-RT20G
AppVision

Compact USB Real-Time Spectrum Analyzer

  • 9 kHz~20 GHz real-time spectrum analyzer
  • Superheterodyne digital receiver architecture, 19 segments pre-selected filter
  • 9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB
  • 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB
  • 100 MHz analysis bandwidth with adjustable sampling rate, 1.2 THz/sec spectrum sweep speed
  • FPGA based digital signal processing
  • Core module supported, light as 195g, size 125×60×15mm, power consumption 10-14 W
  • Highly compatible API interfaces and SAStudio4 GUI
  • Compatible with ARM and x86 processors, Linux and Windows operating systems
  • Operating temperatures range from - 20°C/- 40°C to 65°C (option)
  • Built-in OCXO (option), temperature drift≤0.15 ppm
$19,800.00
Quantity
Buy now, get it in two-week

Description

APV USB-RT20G Overview:

The APV USB-RT20G  is a Compact USB Real-time Spectrum Analyzer that operates from 9 kHz to 20 GHz. It is based on the superheterodyne architecture and has an analysis bandwidth of 100 MHz with a sweep speed of 1.2 THz/s.

This spectrum analyzer provides over 60 dB of image suppression, over 90 dB of IF rejection, and SSB phase noise of -131 dBc/Hz (at 10 MHz offset).

It is powered by a USB C port and is compatible with ARM and x86 processors, Linux, and Windows operating systems.

The analyzer measures 139 x 69 x 20 mm and has 2.92 mm (female) connectors.

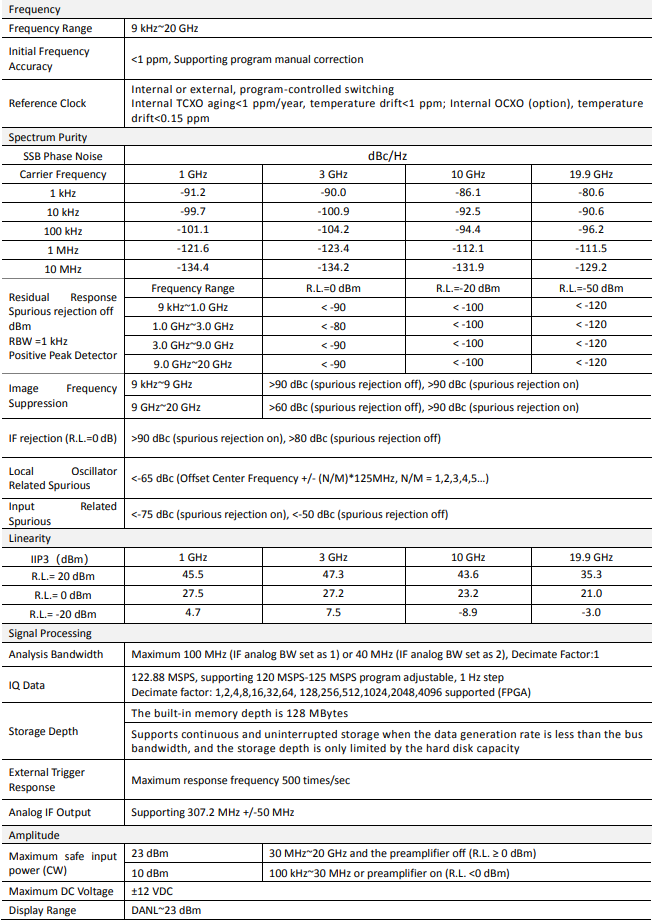

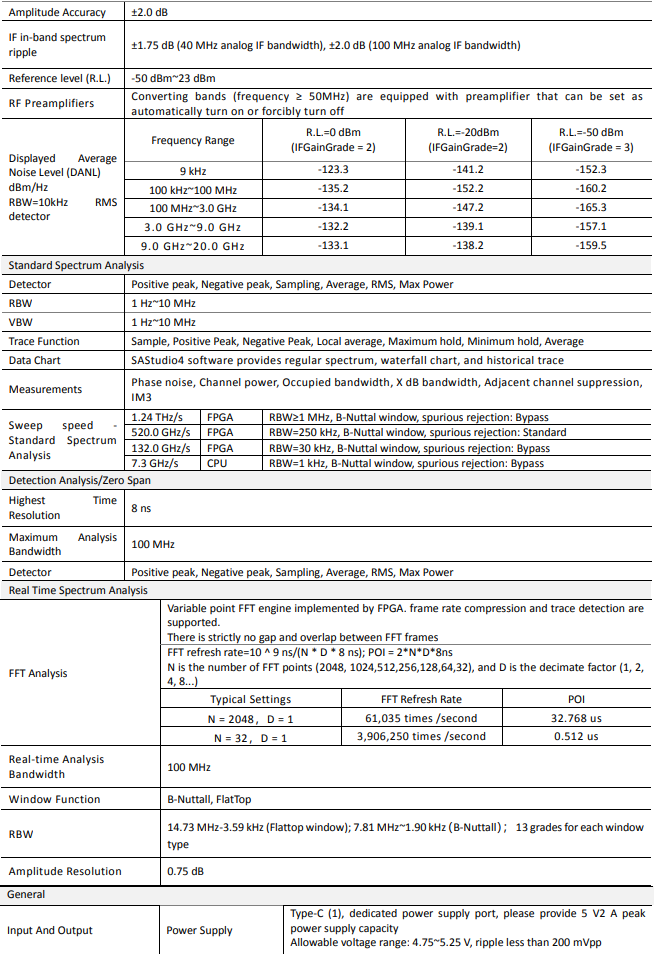

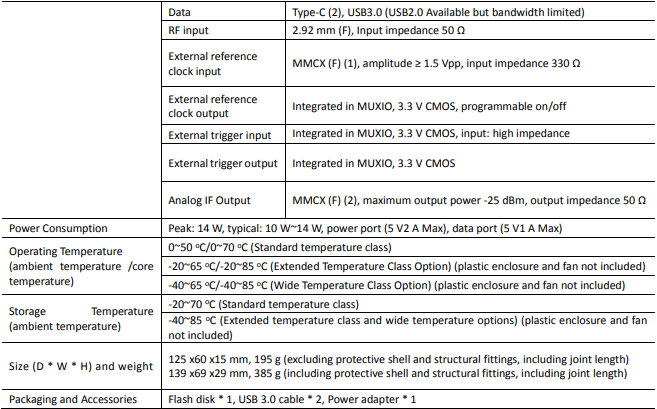

Specification:

Product Details
APV USB-RT20G

Data sheet

Frequency Range
1GHz
Analyzer function
Spectrum analysis
