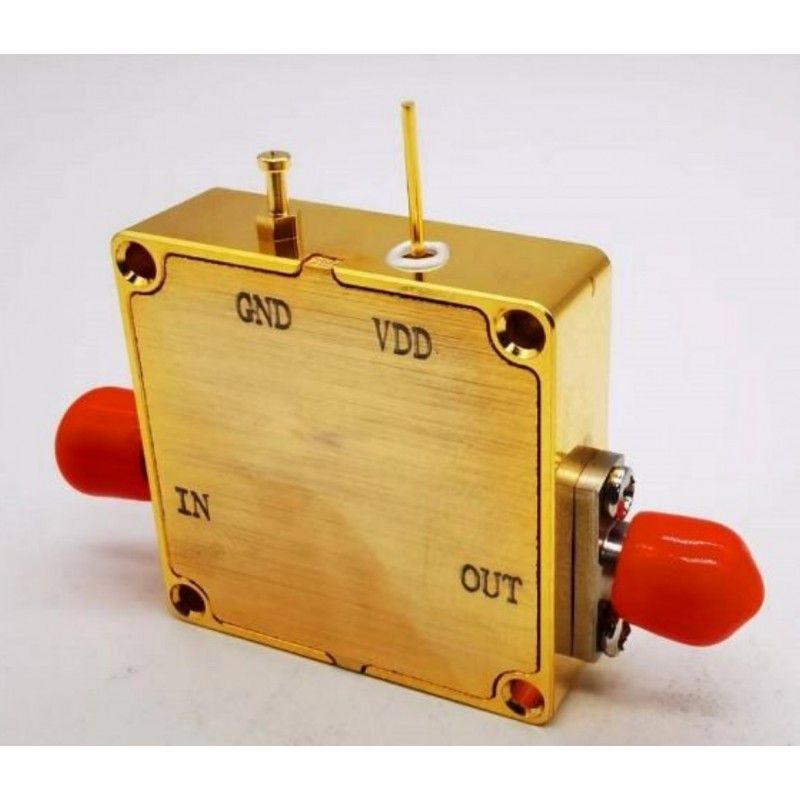

AppVision Coaxial Low Noise Power Amplifier APV-LNA-0003-2801
AppVision APV-LNA-0003-2801
✓ Frequency: 100MHz-3.5GHz
✓ Small signal gain: 28dB
✓ NF=1dB
✓ Single Power Supply
Description
Applications:
✓ 5G Communication
✓ Test Equipment
✓ ROF (RF Over Fiber)
✓ Radar System
Overview:
APV-LNA-0003-2801 is high gain low noise amplifier with 28dB gain with NF=1dB in the frequency of 100MHz-3.5GHz. The DC power requirement is +5V/100mA. The module is with SMA connector.

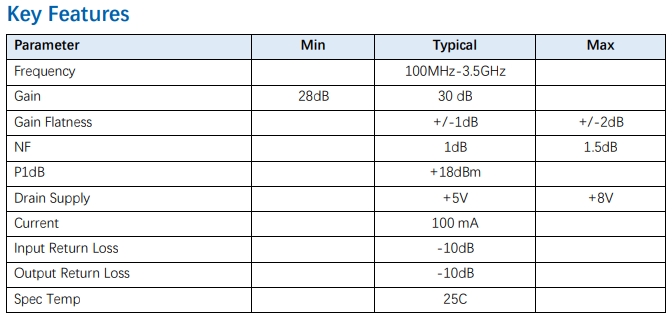

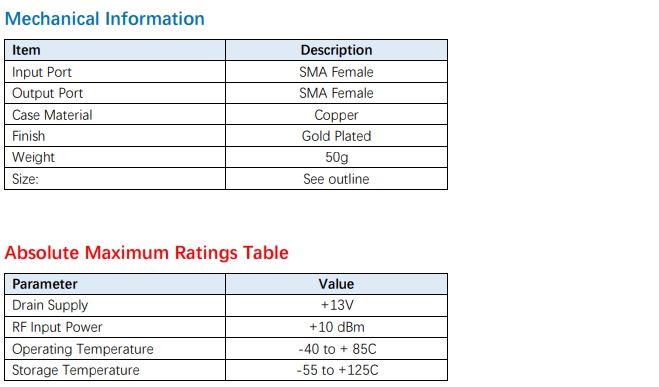

Specifications:
Product Details
AppVision APV-LNA-0003-2801
Data sheet
- Frequency Range
- 3.5G
- GAIN
- 28dB
- NF
- 1
