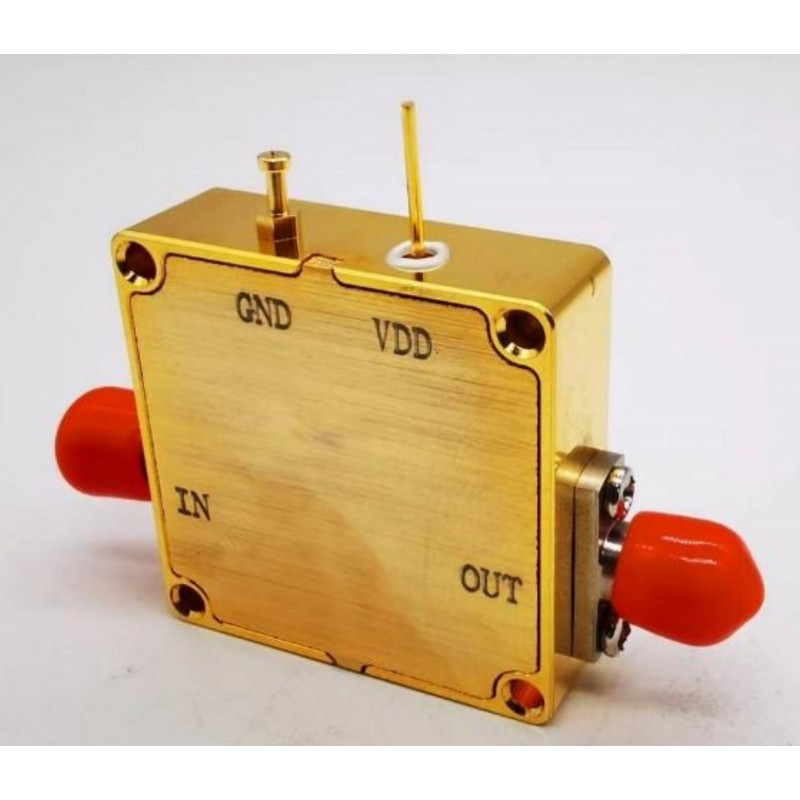

AppVision Coaxial Low Noise Power Amplifier APV-LNA-0020-1503
AppVision APV-LNA-0020-1503
50kHz-20GHz Low Noise Amplifier
Description
Product Details
AppVision APV-LNA-0020-1503

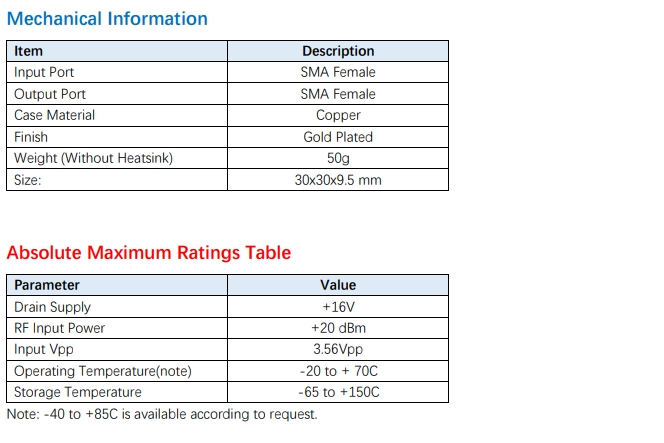

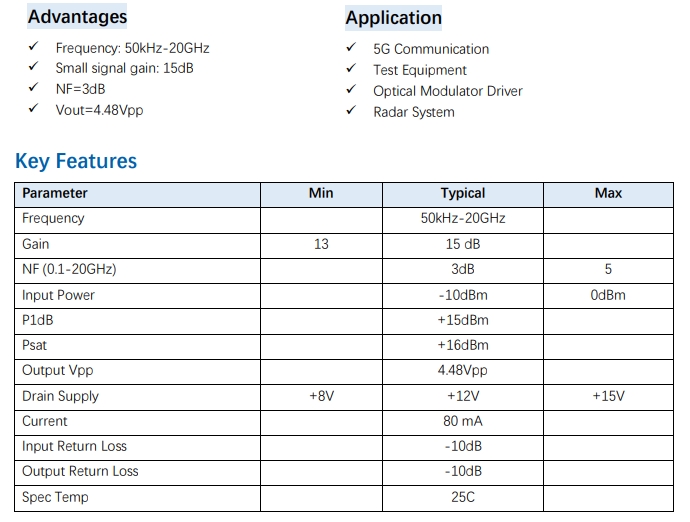

Data sheet
- Frequency Range
- 20G
- GAIN
- 15dB
- NF
- 3
