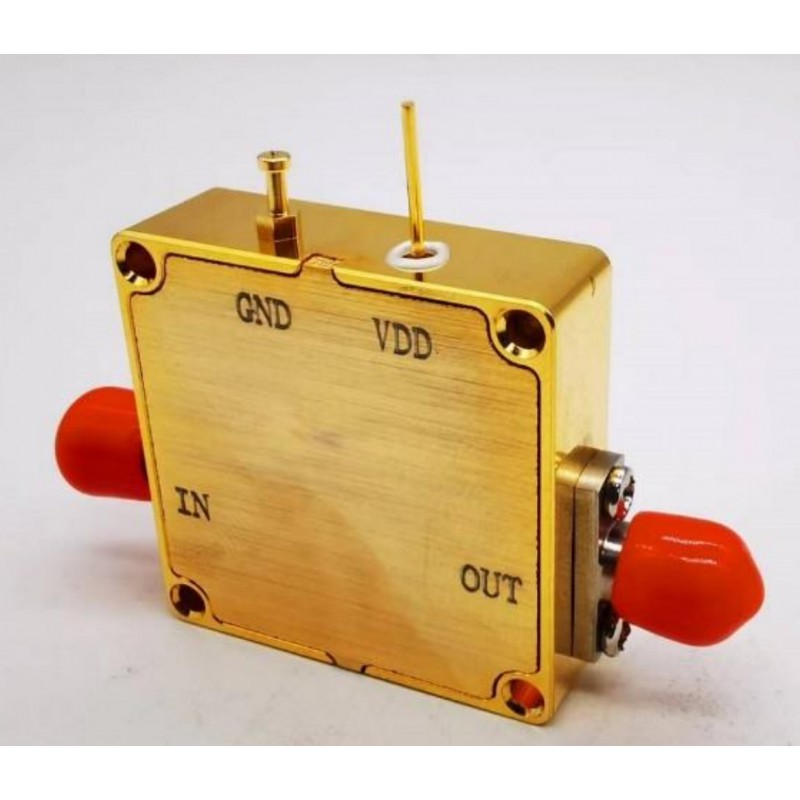

AppVision Coaxial Low Noise Power Amplifier APV-LNA-0118-2702P22
AppVision APV-LNA-0118-2702P22
1-18GHz High Power LNA Gain=27dB, Pout=+22dBm, NF=2dB
Description
APV-LNA-0118-2702P22 is high power Low noise amplifier with +22dBm output power in the frequency of 1-18GHz. The DC power requirement is +12V/250mA. The module is with SMA connector.
Product Details
AppVision APV-LNA-0118-2702P22

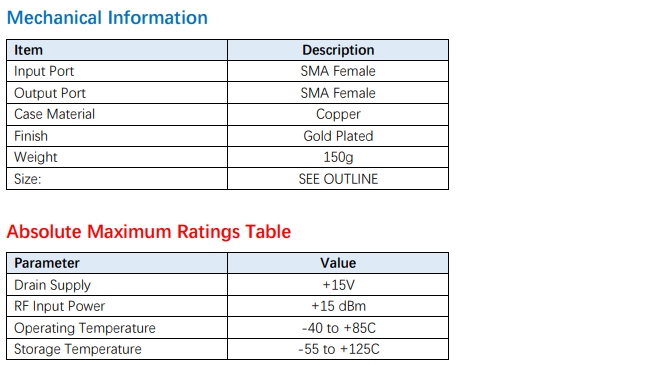

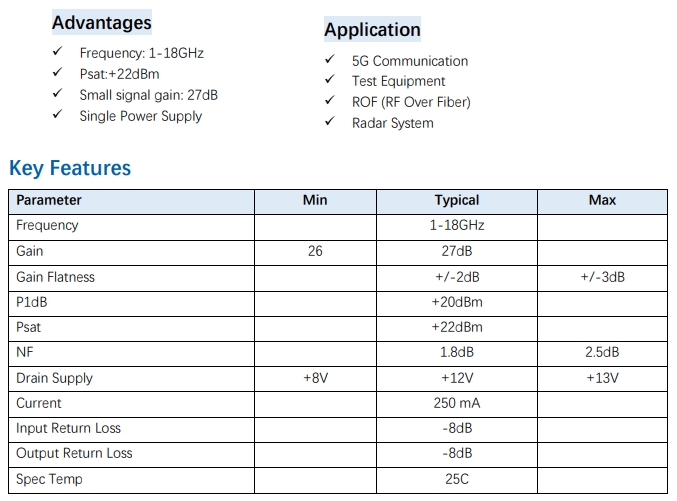

Data sheet
- Frequency Range
- 18G
- GAIN
- 27dB
- NF
- 1.8dB
- Psat
- 22dBm
