1. Octave RF coverage (S, C, X, Ku, and Ka)
2. Multi-octave RF coverage 1.5M ~ 26.5GHz
3. 2GHz or above instantaneous signal bandwidth
4. Amplitude Equalization and Group Delay Equalization
5. Variety of commonly sued IF and bandwidth combinations
6. Choices of coherent multi-channel or non-coherent multi-channel
7. Excellent phase noise specification ≤-100dBc/Hz@10KHz
8. Broadband IQ modulation and demodulation (2GHz signal bandwidth)
9. Internal and external reference switching

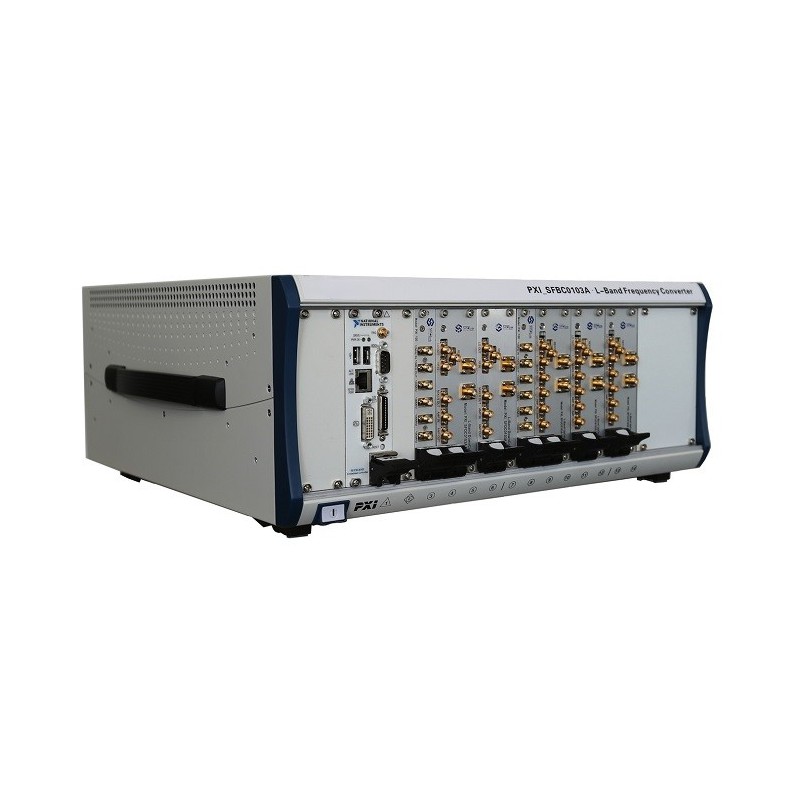

AppVision M Series Multi-Channel Microwave Up/Downconverter is a modular frequency converter based on the mainstream standard bus (PXI/CPCI/VPX etc.) that has a high integration, high scalability, and good cost/performance ratio. The RF signal of this series of converter covers single octave and multi-octave, and the frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices. It is mainly used for wireless communication MIMO, signal monitoring system, GPS, and electronic countermeasures system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. PXI/CPCI/VPX are all standard buses that are easy to use – plug and play, reliable, and convenient.
T&M Systems
Satellite Communications
MIMO
Reference: UD Box 5G
RF: 24-44 GHz; IF: 0.01- 14 GHz Built-in LO with 24-44 GHz control range Highly precise OCXO reference clock 10 MHz output and 100 MHz input/output synchronization Bi-directional circuit topology TMYTEK-made accessories, i.e. amplifier, band-pass filter (optional) CE/FCC/UKCA/ICES certified
Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
Reference: AppVision C Series Downconverter
Brand: AppVision
Features & Benefits: 1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing...
Reference: UD Board
• RF: 23 to 30 GHz • IF: 2.6 to 5.8 GHz • External LO Input Range: 4.75 to 6.75 GHz • On-chip x4 LO Frequency Multiplier • Up Conversion Gain: 11.5 dB (typical) • Down Conversion Gain: 7 dB (typical) • Tiny and Compact
Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
Reference: AppVision C Series Upconverter
Brand: AppVision
Features & Benefits: 1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing...
Reference: AppVision A Series Upconverter
Brand: AppVision
Features & Benefits: 1. Multi-octave RF coverage (0.5 ~ 67GHz) 2. 4GHz or above instantaneous signal bandwidth 3. Amplitude Equalization and Group Delay Equalization 4. Variety of commonly used IF and bandwidth combinations 5. Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10KHz 6. Internal and external reference switching 7. Remote...
Reference: AppVision D Series Up/Downconverter
Brand: AppVision
Features & Benefits: 1. Multi-octave RF coverage (0.5 ~ 40GHz) 2. Octave RF coverage S, C, X, Ku, and Ka 3. 2GHz or above instantaneous signal bandwidth 4. Amplitude Equalization and Group Delay Equalization 5. Variety of commonly used IF and bandwidth combinations 6. Choices of coherent dual-channel or non-coherent dual-channel 7. Excellent...
Reference: AppVision A Series Downconverter
Brand: AppVision
Features & Benefits: 1. Multi-octave RF coverage (0.5 ~ 67GHz) 2. 4GHz or above instantaneous signal bandwidth 3. Amplitude Equalization and Group Delay Equalization 4. Variety of commonly used IF and bandwidth combinations 5. Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10KHz 6. Internal and external reference switching 7. Remote...
1. Octave RF coverage (S, C, X, Ku, and Ka)
2. Multi-octave RF coverage 1.5M ~ 26.5GHz
3. 2GHz or above instantaneous signal bandwidth
4. Amplitude Equalization and Group Delay Equalization
5. Variety of commonly sued IF and bandwidth combinations
6. Choices of coherent multi-channel or non-coherent multi-channel
7. Excellent phase noise specification ≤-100dBc/Hz@10KHz
8. Broadband IQ modulation and demodulation (2GHz signal bandwidth)
9. Internal and external reference switching
