1. Multi-octave RF coverage (0.5 ~ 67GHz)
2. 4GHz or above instantaneous signal bandwidth
3. Amplitude Equalization and Group Delay Equalization
4. Variety of commonly used IF and bandwidth combinations
5. Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10KHz
6. Internal and external reference switching
7. Remote programming

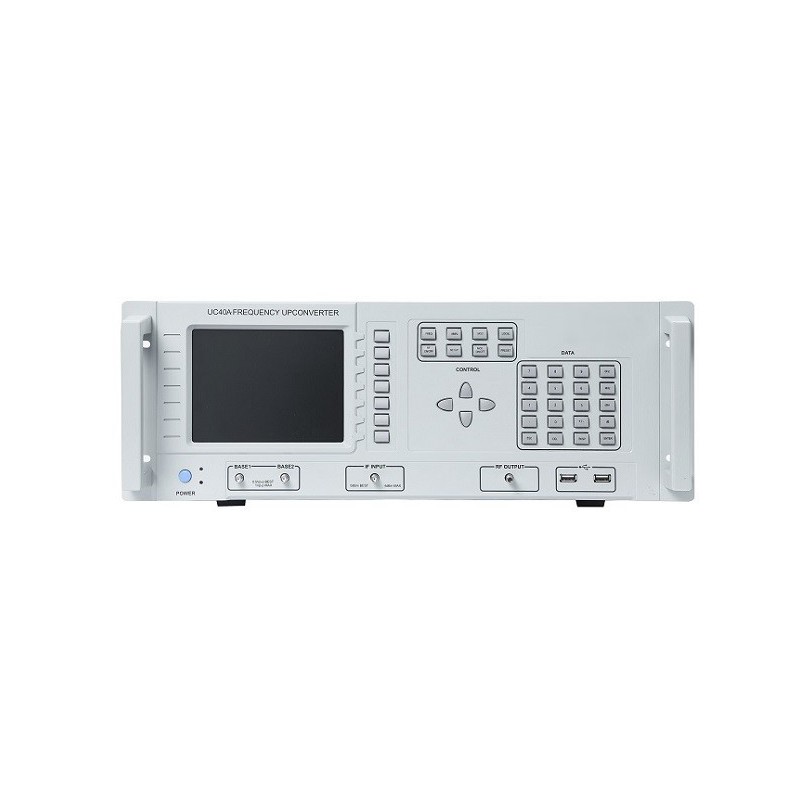

AppVision APVUC-A Series Multi-Octave Upconverter belongs to our microwave upconverter series that has a high performance and an octave overage by RF signal. Its frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices. This series of converter is mainly used for electronic countermeasure system, radar system, and satellite communication system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. A Series Microwave Upconverter is available in both 2U and 4U sizes.
T&M Systems
Satellite Communications
MIMO
|
Specifications of APVUC-A Series Multi-Octave Upconverter |
||||||
|
|
APVUC20A |
APVUC26A |
APVUC40A |
APVUC50A |
APVUC67A |
|
|
Output Characteristics |
Frequency Range |
0.5～20GHz |
0.5～26.5GHz |
0.5～40GHz |
0.5～50GHz |
0.5～67GHz |
|
P-1dB Compression Point |
≥15dBm |
≥15dBm |
≥13dBm |
≥10dBm |
≥10dBm |
|
|
Frequency Tuning Step Size |
10Hz |
|||||
|
IM3 Output |
≤-36dBc (△5MHz, maximum gain, power output: 20dBm) |
|||||
|
Output VSWR |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.5 |
≤2.5 |
|
|
Output Impedance |
50Ω |
|||||
|
Input Characteristics |
Input Frequency |
70±20MHz,140±40MHz,0.72±0.25GHz,1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz ,3±2GHz(Select between single or multiple IF inputs) |
||||
|
Maximum Power Input |
+10dBm (Operating) |
|||||
|
Input Impedance |
50Ω |
|||||
|
Input VSWR |
≤1.4 |
|||||
|
Transfer Characteristics |
Gain |
0～15dB （Minimum signal power output -100dBm or below, ATT110 support） |
||||
|
Tunning Step Size |
0.1dB |
|||||
|
Programming Resolution |
≤±1dB |
|||||
|
Level Stability |
≤±0.5dB p-p maximum/day at room temperature |
|||||
|
Gain Flatness |
≤±0.3dB/40MHz, ≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤±2dB/2000MHz |
|||||
|
≤±3dB/4000MHz,≤±2dB/Full Band |
||||||
|
Inband Frequency Clutter |
≤-55dBc (Excluding output harmonics) |
|||||
|
RF Shutdown Feature |
≥80dB |
|||||
|
Phase Noise (dBc/Hz) |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
≤-50@10Hz |
|
|
≤-80@100Hz |
≤-80@100Hz |
≤-75@100Hz |
≤-75@100Hz |
≤-75@100Hz |
||
|
≤-95@1KHz |
≤-95@1KHz |
≤-95@1KHz |
≤-95@1KHz |
≤-95@1KHz |
||
|
≤-102@10KHz |
≤-102 @10KHz |
≤-100@10KHz |
≤-100@10KHz |
≤-100@10KHz |
||
|
≤-102@100KHz |
≤-102@100KHz |
≤-100@100KHz |
≤-100@100KHz |
≤-100@100KHz |
||
|
≤-108@1MHz |
≤-108 @1MHz |
≤-105@1MHz |
≤-105 @1MHz |
≤-105 @1MHz |
||
|
Reference Characteristics |
Internal Reference Frequency Stablity |
±2e-8 (0℃～+50℃, after 30min power on) |
||||
|
Internal Reference Frequency Accuracy |
0.05ppm |
|||||
|
Internal Reference Power Output |
5±2dBm，50Ω，10MHz，Sine wave |
|||||
|
External Reference Power Input |
5±2dBm，50Ω，10MHz，Sine wave |
|||||
|
Reference Phase Noise |
≤-125dBc/Hz@10Hz |
|||||
|
≤-140dBc/Hz@100Hz |
||||||
|
≤-150dBc/Hz@1KHz |
||||||
|
≤-155dBc/Hz@10KHz |
||||||
|
≤-155dBc/Hz@100KHz |
||||||
|
Physical Characteristics |
RF Output port |
2.92mm-k |
2.92mm-k |
2.92mm-k |
2.4mm-k |
1.85mm-k |
|
Input and Output Ports |
RF Output: 2.92mm K-KFD |
|||||
|
IF Input: SMA-KFD |
||||||
|
I/Q Input: SMA-KFD |
||||||
|
External Reference Input: BNC female |
||||||
|
Internal Reference Output: BNC female W |
||||||
|
External Pulse Modulation Input: BNC female |
||||||
|
Internal Pulse Modulation Output: BNC female |
||||||
|
Control Interface |
RJ-45（TCP/IP over Ethernet ）/RS422 |
|||||
|
Power Supply |
AC,176～264VAC，45Hz～65Hz，Power consumption 140W |
|||||
|
Overall Dimensions/Weight |
APVUC12A/APVUC20A are 2U：483mm*90mm*550mm 15Kg |
|||||
|
APVUC26A/APVUC40A/APVUC50A are 4U：483mm*180mm*550mm 25Kg |
||||||
|
Environment |
Operating |
Temperature: 0℃～+50℃ |
||||
|
Humidty: up to 95% @30°C, Noncondensing |
||||||
|
Height: 3000 meters |
||||||
|
Nonoperating |
Temperature: -30℃～+70℃ |
|||||
|
Humidty: Up to 95% @40°C, Noncondensing |
||||||
|
Height: 12000 meters |
||||||
|
Shock and Vibration: Regular road transport/air transport |
||||||
