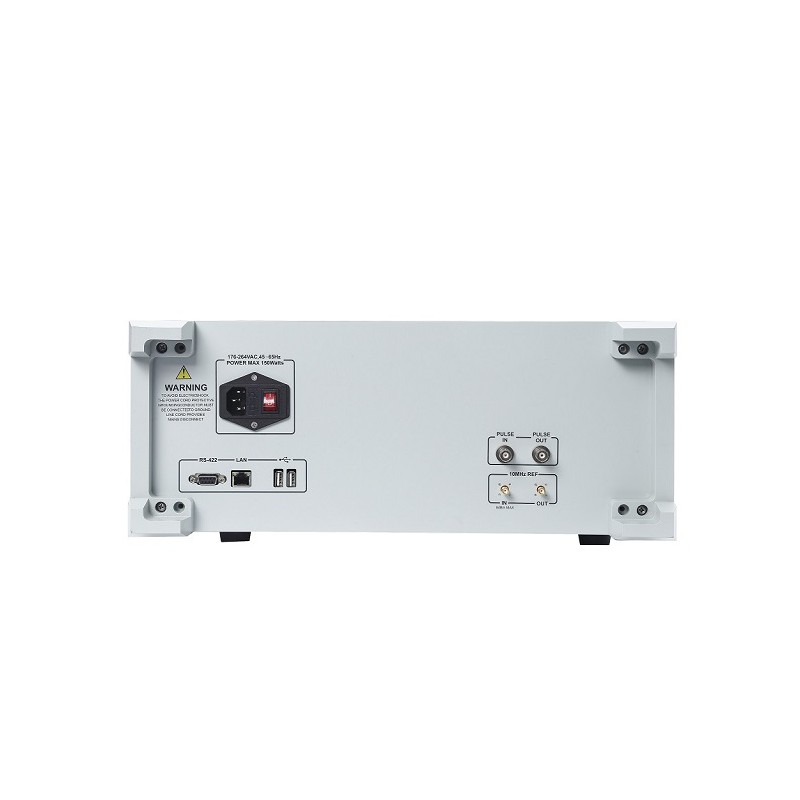

AppVision APVDC-A Series Multi-Octave Downconverter belongs to our microwave downconverter series that has a high performance and an octave overage by RF signal. Its frequency step is precise and accurate to 10Hz with a variety of IF and signal bandwidth choices. This series of converter is mainly used for electronic countermeasure system, radar system, and satellite communication system. Its excellent phase noise, clutter suppression, and in-band flatness data can provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. A Series Microwave Downconverter is available in both 2U and 4U sizes.
Applications:
T&M Systems Satellite Communications MIMO
Specifications:
Specifications of APVDC-A Series Multi-Octave Downconverter
Features & Benefits:
1. Multi-octave RF coverage (0.5 ~ 40GHz) 2. Octave RF coverage S, C, X, Ku, and Ka 3. 2GHz or above instantaneous signal bandwidth 4. Amplitude Equalization and Group Delay Equalization 5. Variety of commonly used IF and bandwidth combinations 6. Choices of coherent dual-channel or non-coherent dual-channel 7. Excellent...
Features & Benefits:
1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing...
• RF: 6 to 20 GHz
• IF: 1 to 10 GHz
• Adjustable LO frequency: 6 to 20 GHz
• Conversion Loss: 10 dB (typical)
• Integrated with an internal LO source
• Simultaneously up and down conversion for each channel
• Ideal for WiFi-6/7, UWB, LEO applications
Features & Benefits:
1. Octave RF coverage (S, C, X, Ku, and Ka)
2. Multi-octave RF coverage 1.5M ~ 26.5GHz
3. 2GHz or above instantaneous signal bandwidth
4. Amplitude Equalization and Group Delay Equalization
5. Variety of commonly sued IF and bandwidth combinations
6. Choices of coherent multi-channel or non-coherent multi-channel
7. Excellent...
• RF: 6 to 20 GHz
• IF: 1 to 10 GHz
• Adjustable LO frequency: 6 to 20 GHz
• Conversion Loss: 10 dB (typical)
• Integrated with an internal LO source
• Simultaneously up and down conversion for each channel
• Ideal for WiFi-6/7, UWB, LEO applications
• RF: 23 to 30 GHz
• IF: 2.6 to 5.8 GHz
• External LO Input Range: 4.75 to 6.75 GHz
• On-chip x4 LO Frequency Multiplier
• Up Conversion Gain: 11.5 dB (typical)
• Down Conversion Gain: 7 dB (typical)
• Tiny and Compact
Features & Benefits:
1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing...
Features & Benefits:
1. Multi-octave RF coverage (0.5 ~ 67GHz) 2. 4GHz or above instantaneous signal bandwidth 3. Amplitude Equalization and Group Delay Equalization 4. Variety of commonly used IF and bandwidth combinations 5. Excellent phase noise specification (67GHz): ≤-100dBc/Hz@10KHz 6. Internal and external reference switching 7. Remote...
