1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing and combination alarm

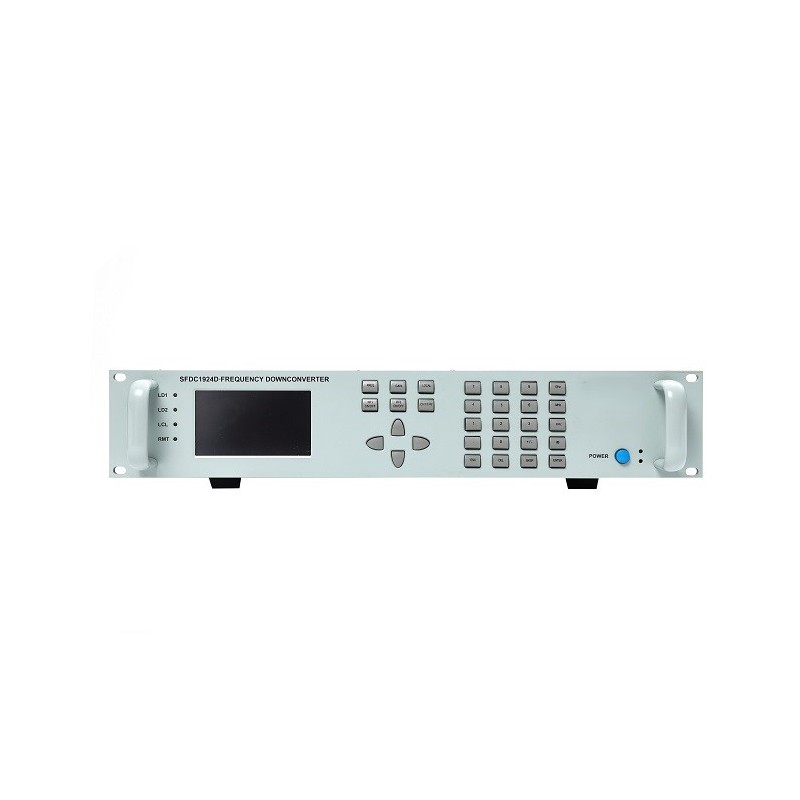

AppVision APVDC-C Series Microwave Downconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave downconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. APVDC-C Series Microwave Downconverter has a standard 2U size.
Applications:
T&M Systems Satellite Communications MIMO
Specifications:
Specifications of APVDC-C Series Microwave Downconverter
APVDC0204C
APVDC0408C
APVDC0818C
APVDC1826C
APVDC2640C
APVDC1840C
Input Characteristics
Input Frequency Range
2～4GHz
4～8GHz
8～18GHz
18～26.5GHz
26.5～40GHz
18～40GHz
Frequency Tuning Step Size
1Hz
Maximum Input of Signal Power
-30dBm(Operating) +10dBm(Damaged)
Input LO Leakage
≤-80dBm
Input VSWR
≤1.4
≤1.4
≤1.4
≤1.5
≤1.5
≤2.2
Input Impedance
50Ω
Output Characteristics
Output Frequency
70±20MHz,140±40MHz, 0.72±0.25GHz，1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz(Select between single or multiple IF input)
P-1 dB Compression Point
≥+13dBm
IM3 Output
≤-60dBc (△5MHz, Maximum gain, Power output: 2*-10dBm)
