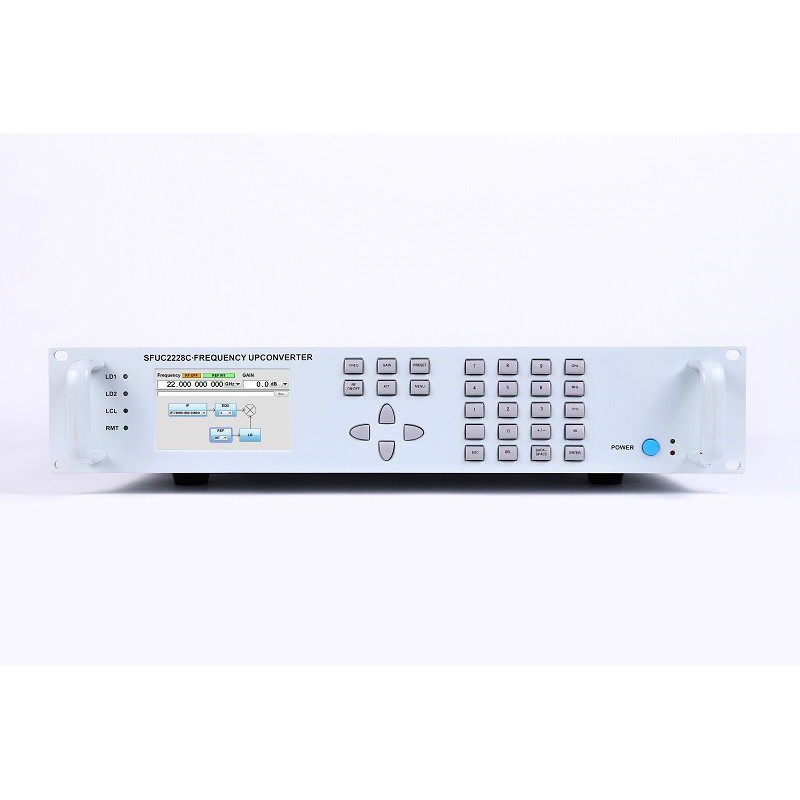

AppVision C Series Microwave Upconverter

AppVision C Series Upconverter
AppVision

Features & Benefits:

1.Octave RF coverage (S, C, X, Ku, and Ka)
2.2GHz or above instantaneous signal bandwidth
3.Amplitude Equalization and Group Delay
4.Variety of commonly used IF and bandwidth combinations
5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz
6.Internal and external reference switching
7.Remote programming
8.Self-testing and combination alarm

Quantity

Description

Overview:

AppVision APVUC-C Series Microwave Upconverter is a broadband frequency converter that is dedicated for satellite communication. It has a high performance, high reliability and an octave covered by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signal bandwidth choices. It is equipped with functions like self-testing and combination alarm which is suitable for long-time uninterrupted use, guaranteed safety and reliability. This microwave downconverter is mainly designed for satellite communication system, signal monitoring system, and electronic countermeasure system with an excellent phase noise, clutter suppression, and in-band flatness data. It is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through network remotely. APVUC-C Series Microwave Downconverter has a standard 2U size.

Applications:

T&M Systems
Satellite Communications
MIMO

Specifications:

Specifications of APVUC-C Series Microwave Upconverter

　

APVUC0204C

APVUC0408C

APVUC0818C

APVUC1826C

APVUC2640C

APVUC1840C

Output Characteristics

Frenquency Range

2～4GHz

4～8GHz

8～18GHz

18～26.5GHz

26.5～40GHz

18～40GHz

P-1dB Compression Point

≥15dBm

≥15dBm

≥15dBm

≥15dBm

≥13dBm

≥13dBm

Frequency Tuning Step Size

1Hz

IM3 Output

≤-36dBc (△5MHz, Maximum Gain, Power Output: 20dBm)

Voltage Standing Wave Ratio

≤1.4

≤1.4

≤1.5

≤1.5

≤1.5

≤2.2

Output Impedance

50Ω

RF Signal Monitoring

 -20dBc (Typ)

Input Characteristics

Input Frequency

70±20MHz,140±40MHz,0.72±0.25GHz，1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz (Select between single or multiple IF input)

Maximum Power Input

 +10dBm (Operating)

Input Impedance

50Ω

Voltage Standing Wave Ratio

≤1.4

Transfer Characteristics

Gain

0～30dB

Tuning Step Size

0.1dB

Programming Resolution

≤±1dB

Level Stability

≤±0.5dB p-p maximum/day at room tempertature

Gain Flatness

≤±0.3dB/40MHz, ≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤±2dB/2000MHz
≤±2dB/Full Band

 Inband Frequency Clutter

    Signal Related

≤-60dBc (0dBm output, excluding output harmonics )

 Signal Non-related

≤-60dBm

Group Delay
(80% Signal Bandwidth)

  Linear: ≤0.03ns/MHz
  Parabola: ≤0.01ns/MHz2
  Jitter: ≤1ns

AM/PM Conversion

≤0.1º/dB (Maximum gain, 0dBm output)

Conversion Sense

Non-inverted

RF Shutdown Feature

≥80dB

Phase Noise (dBc/Hz)

≤-50@10Hz

≤-50@10Hz

≤-50@10Hz

≤-50@10Hz

≤-50@10Hz

≤-50@10Hz

≤-80@100Hz

≤-80@100Hz

≤-80@100Hz

≤-75@100Hz

≤-75@100Hz

≤-75@100Hz

≤-105@1KHz

≤-100@1KHz

≤-95@1KHz

≤-95@1KHz

≤-95@1KHz

≤-95@1KHz

≤-110 @10KHz

≤-105 @10KHz

≤-102 @10KHz

≤-100 @10KHz

≤-100@10KHz

≤-100 @10KHz

≤-110@100KHz

≤-105@100KHz

≤-102@100KHz

≤-100@100KHz

≤-100@100KHz

≤-100 @100KHz

≤-115 @1MHz

≤-115 @1MHz

≤-108 @1MHz

≤-108 @1MHz

≤-105 @1MHz

≤-105 @1MHz

Reference

Characteristics

Internal Reference Frequency Stablity

±2e-8 (0℃～+50℃, after 30min power on)

Internal Reference Frequency Accuracy

0.05ppm

Internal Referenece Power Output

 5±2dBm，50Ω，10MHz，Sine wave

External Reference Power Input

 5±2dBm，50Ω，10MHz，Sine wave

Reference Phase Noise

≤-125dBc/Hz@10Hz
≤-140dBc/Hz@100Hz
≤-150dBc/Hz@1KHz
≤-155dBc/Hz@10KHz
≤-155dBc/Hz@100KHz

Physical

Characteristics

Input and Output Ports

RF Input: 2.92mm K-KFD

IF Output: SMA-KFD

IF Output Monitoring：SMA-KFD

External Reference Input：BNC female

Internal Reference Output：BNC female W

Control Interface

RJ-45（TCP/IP over Ethernet ）/RS422

Power Supply

AC,176～264VAC，45Hz～65Hz，Power consumption 60W

Overall Dimensions/Weight

2U：483mm*90mm*550mm  15Kg

Environment

Operating

Tempeture：0℃～+50℃

Humidty: up to 95% @30°C, Noncondensing

Height：3000 meters

Nonoperating

Temperature：-30℃～+70℃

Humidty: up to 95% @40°C, Noncondensing

Height：12000 meters

Shock and Vibration: Regular road transport/air transport
