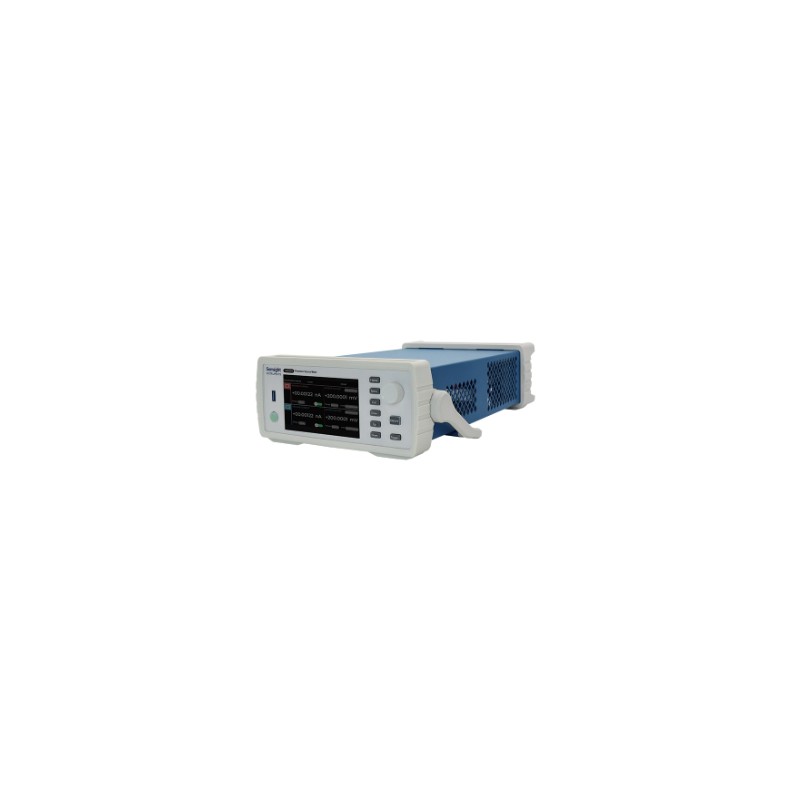

Semight SMU S2027H Single-Channel Precision Source Meter
  • Semight SMU S2027H Single-Channel Precision Source Meter

Semight SMU S2027H Single-Channel Precision Source Meter

Semight SMU S2027H
  • ±60 V、±3 A(DC)、±10A (pulse)
  • The minimum measurement resolution can reach 100 fA/100 nV

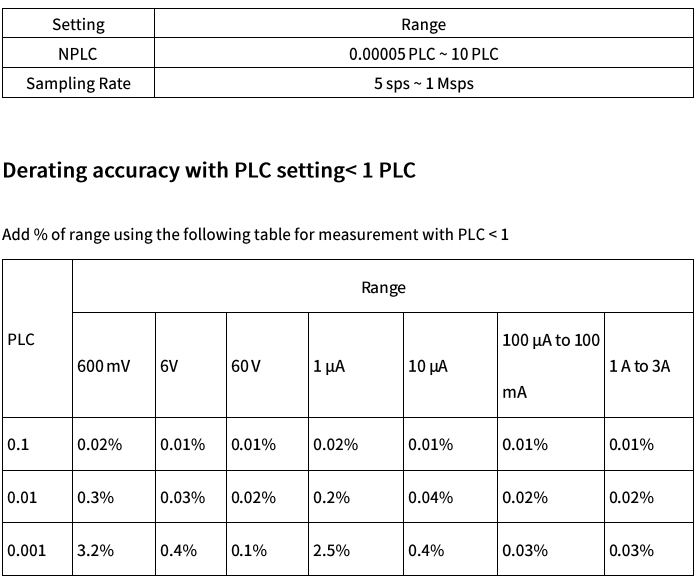

  • Supports up to 1M ADC sampling rate
  • Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Quantity

Description

Product Details
Semight SMU S2027H
