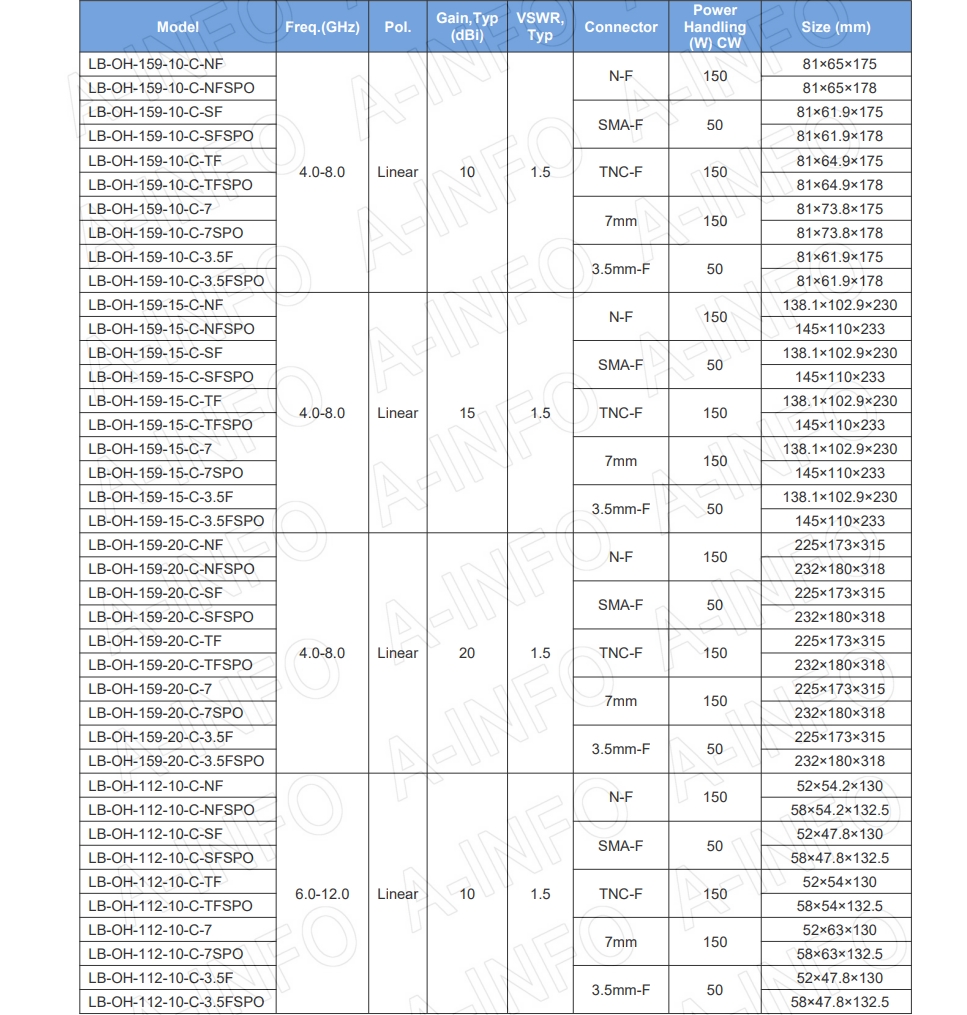

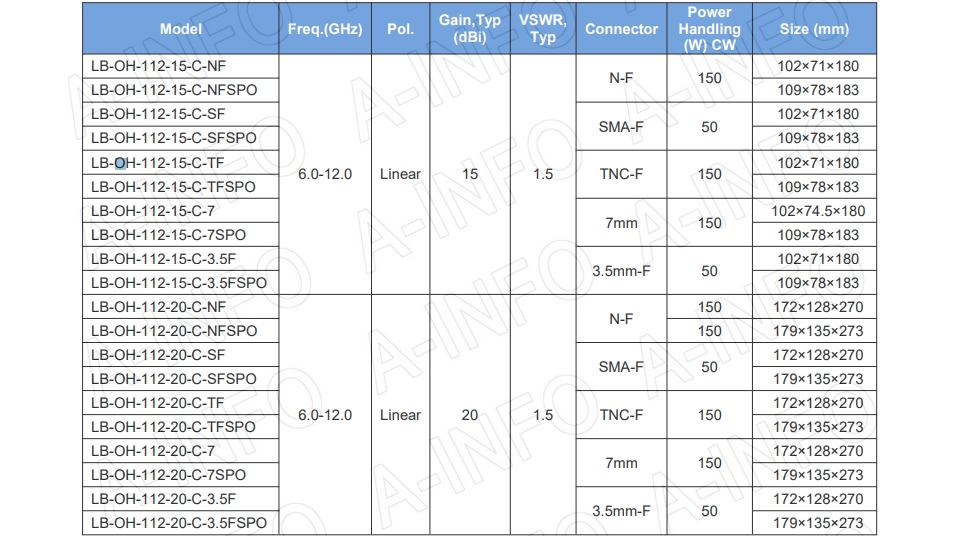

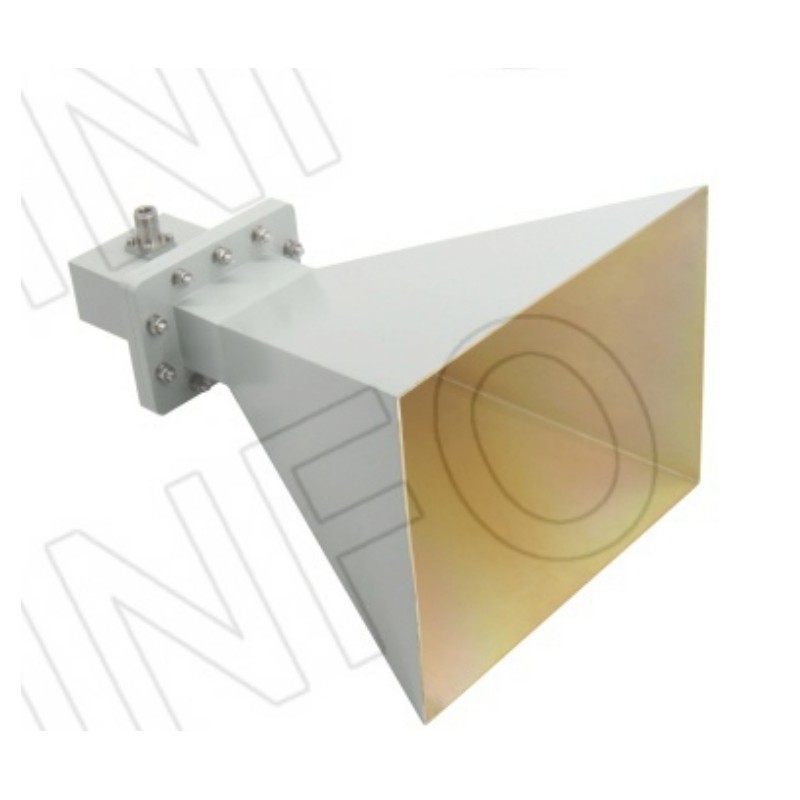

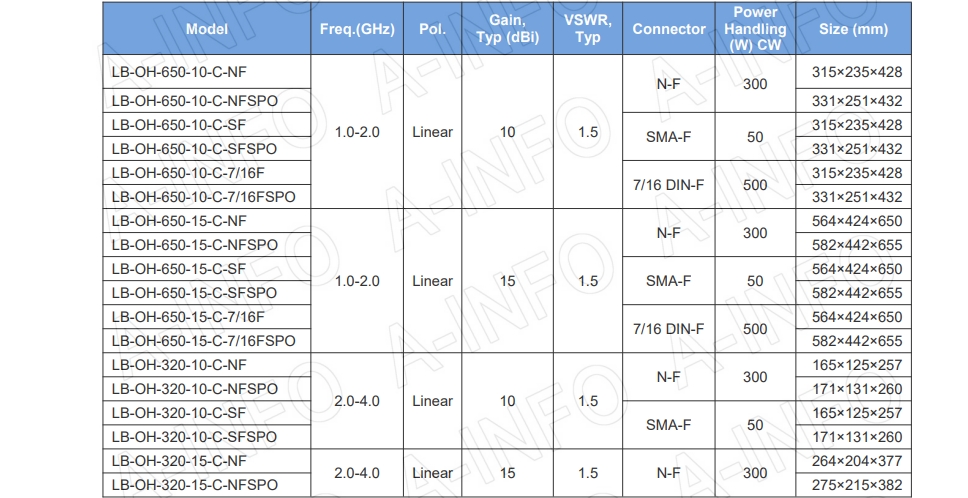

A-INFO 1GHz to 12GHz Octave Horn Antennas

Reference: A-INFO Spot-Focusing Lens Horn Antenna

Brand: A-INFO

A-INFO Spot-Focusing Lens Horn Antenna

The spot-focusing lens horn antenna uses phase correction to achieve excellent focusing performance with minimum antenna size, so that the beams converge at the designed focus to form a focal spot. It supports both linear and circular polarized waveforms, and the focal length and spot size can be customized. The spot-focusing lens horn antennas are...

Reference: A-INFO Broadband Conical Dual Polarization Horn Antenna

Brand: A-INFO

A-INFO 2GHz-40GHz Conical Dual Polarization Horn Antenna

Reference: LB-34-20-C-KF_1

Brand: A-INFO

Standard Gain Horn Antenna, 22-33GHz 20dB Gain WR34 - Part 1

Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...

Reference: LB-CH-28-20-T26

Brand: A-INFO

5G Measurements, 23.5-43.5GHz 20dB Gain, Dual Linear Polarization Corrugated Conical Horn Antenna

Applications: > 5G Applications and Systems  > Millimeter Wave Test  > Near Field, Far Field, CATR, and OTA  > Short Distance Wireless Communication  > UWB Communication Systems  > Radar Systems  > Other Applications

Reference: A-INFO Corrugated Feed Horn Antennas

Brand: A-INFO

A-INFO 0.75GHz to 220GHz Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn...

Reference: A-INFO Conical Horn Antennas

Brand: A-INFO

A-INFO 5.3GHz to 220GHz Conical Horn with EIA Standard Circular WG Interface

The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...

Reference: A-INFO Rectangular Waveguide Probes with Waveguide Interface

Brand: A-INFO

A-INFO 0.32 to 110GHz Rectangular Waveguide Probes with Waveguide Interface, Equipped with Absorber

A-INFO's Open Ended WG Probes have been specifically designed for near-field measurement. The EWG series Open Ended Waveguide Probes are Linear Polarization and are covering the frequency range from 0.32 to 110GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.

Reference: A-INFO Corrugated Conical Horn Antennas

Brand: A-INFO

A-INFO Corrugated Conical Horn Antennas

A-INFO corrugated horn antennas offer a nearly circularly symmetric copolar radiation pattern in a wide bandwidth and very low crosspolarisation.  Radiation pattern is symmetry (Axially Symmetrical Patterns)  Low side lobe      -25dB Typ. over full waveguide band      -40dB Typ. at specified narrow band  Very low crosspolarisation, Low return loss...

Reference: A-INFO Corrugated Feed Horn Antennas

Brand: A-INFO

A-INFO 0.75GHz to 220GHz Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface, Dual Linear Polarization

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn...

Reference: LB-660

Brand: A-INFO

Broadband Horn Antenna, 0.6-6.0 GHz 11dB Gain, N Type Female

Frequency Range :     0.6-6 GHz Gain, Typ:                 11 dB Polarization:              Linear 3dB Beamwidth, E-Plane, Range (Deg.) 33 - 92 3dB Beamwidth, H-Plane, Range (Deg.) 34-56 Cross Pol. Isolation, Typ (dB) : 25 Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed, Far-field...

Reference: A-INFO Broadband Horn Antenna

Brand: A-INFO

A-INFO 100MHz-110GHz Broadband Waveguide Horn Antenna

The LB series broadband waveguide horn antennas are linearly polarized and provide an efficient low cost means of making broadband measurements. A-INFO's horn antenna can cover from 100MHz to 110GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other...

Reference: A-INFO Standard Gain Horn Antennas

Brand: A-INFO

A-INFO 320MHz to 500GHz Standard Gain Horn Antennas

The LB series standard gain horn antennas are linearly polarized and provide an efficient low cost means of making measurements. A-INFO's standard gain horn antenna can cover from 320MHz to 500GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications.

Reference: A-INFO Diagonal Horn Antennas

Brand: A-INFO

A-INFO 750MHz to 220GHz Diagonal Horn Antennas

The LB-DG series diagonal horn antennas are linearly polarized and provide a symmetrical radiation pattern and extremely low side-lobes. A-INFO's diagonal horn antenna can cover from 750MHz to 220GHz frequency range. These horns are ideally suited for illumination of anechoic chamber, antenna far field test, radar cross section (RCS) measurement and other...

Reference: A-INFO Corrugated Feed Horn Antennas

Brand: A-INFO

A-INFO Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface, Dual Linear Polarization, Equipped with Absorber

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn...

Reference: LB-34-20

Brand: A-INFO

Standard Gain Horn Antenna, 22-33GHz 20dB Gain

Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...

Reference: A-INFO Open Boundary Quad-Ridged Horn Antenna

Brand: A-INFO

A-INFO 400MHz-50GHz Open Boundary Quad-Ridged Horn Antenna
