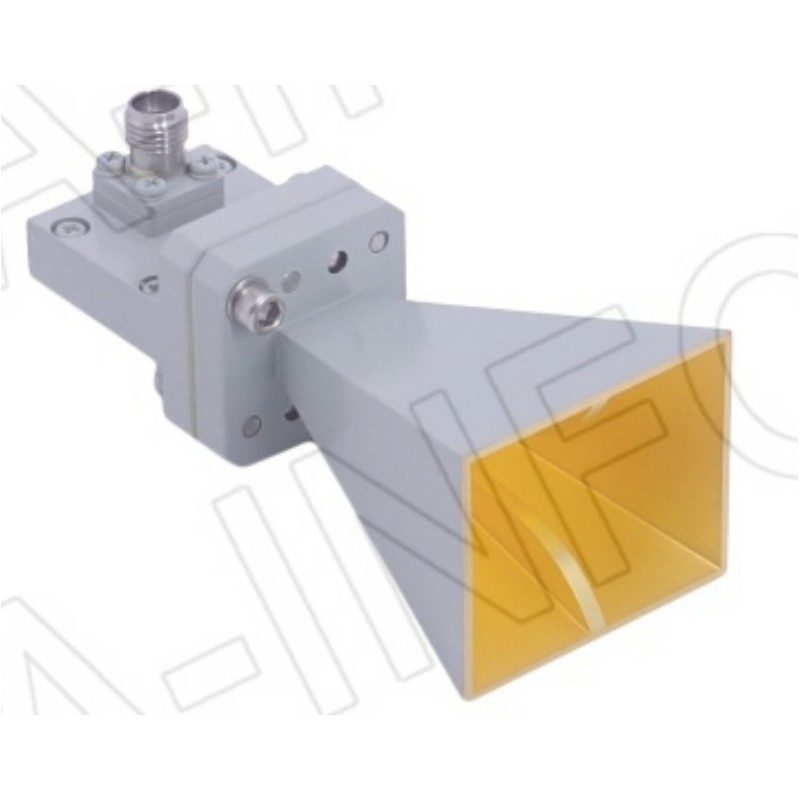

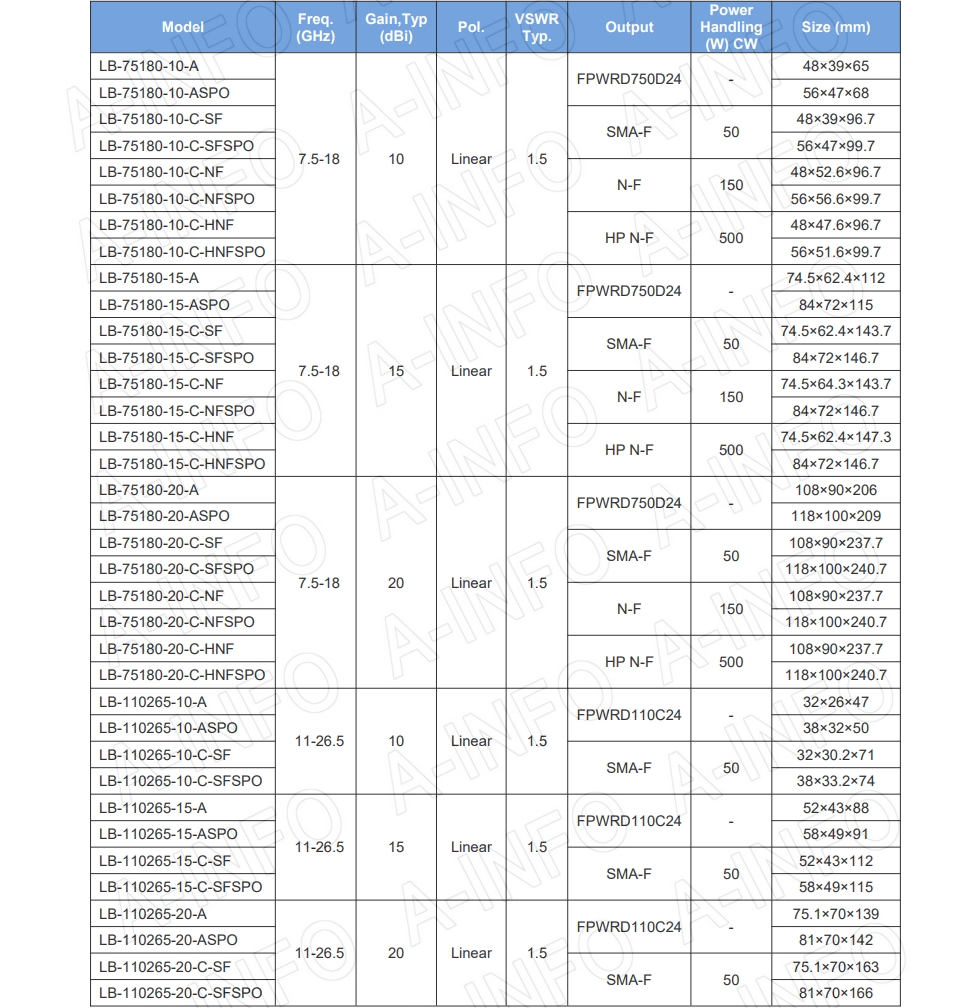

The LB series multi octave horn antennas are linearly polarized and provide an efficient low cost means of making broadband measurements. A-INFO's horn antenna can cover from 840MHz to 40GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications. The LB series horn antennas have high gain, over octave bandwidths, low VSWR and advantages of small size and light weight .
Reference: LB-CH-28-20-T26
Brand: A-INFO
Applications: > 5G Applications and Systems > Millimeter Wave Test > Near Field, Far Field, CATR, and OTA > Short Distance Wireless Communication > UWB Communication Systems > Radar Systems > Other Applications
