Rectangular Waveguide Probes with Endlaunch Coaxial Output

Rectangular Waveguide Probes
A-INFO

A-INFO's Open Ended WG Probes have been specifically designed for near-field measurement. The EWG series Open Ended Waveguide Probes are Linear Polarization and are covering the frequency range from 0.32 to 110GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.

Quantity

Description

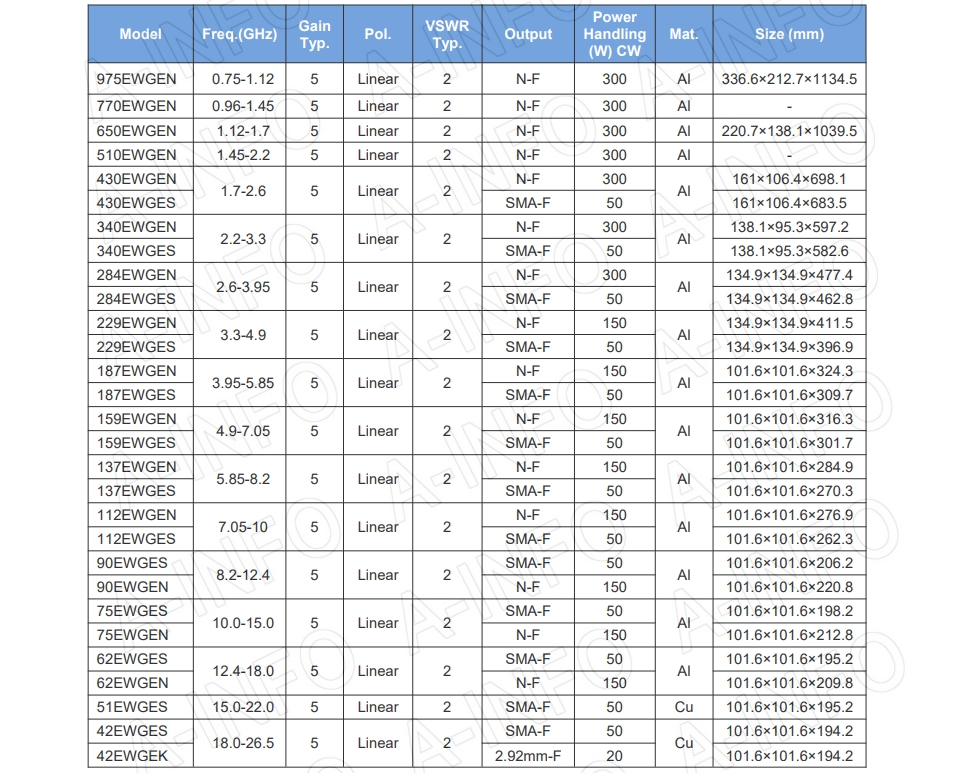

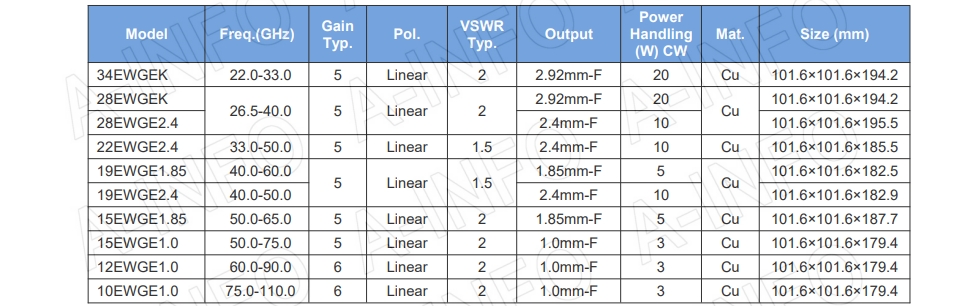

Product Details
Rectangular Waveguide Probes
