The SIGLENT SVA1000X series spectrum & vector network analyzers are powerful and flexible tools for RF signal and network analysis.

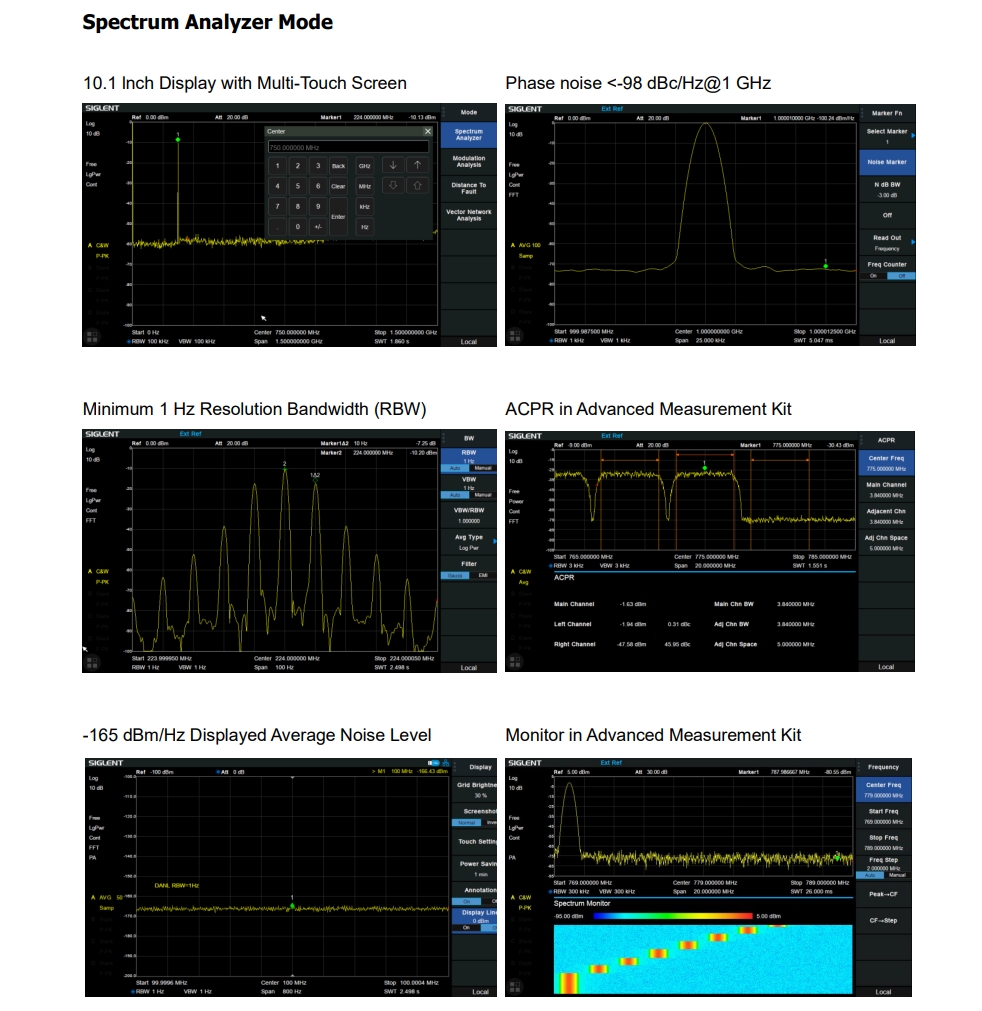

With a frequency range up-to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyzer and a vector network analyzer, optional functions include a distance-to-fault locator, a vector signal modulation analyzer. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
All the Siglent products are eligble for education discount. Please send your inquiry to admin@appvision.com.au to get the discounted quotation if you are from Unviersities, TAFEs, CSIRO, high schools or other education organisations |
||
| SVA1000X-AMK | Advanced measurement kit ,including ACPR, CHPower, OBW and so on. | please send your inquiry to admin@appvision.com.au to get the quotation |
| SVA1000X-EMI | EMI measurement kit | |

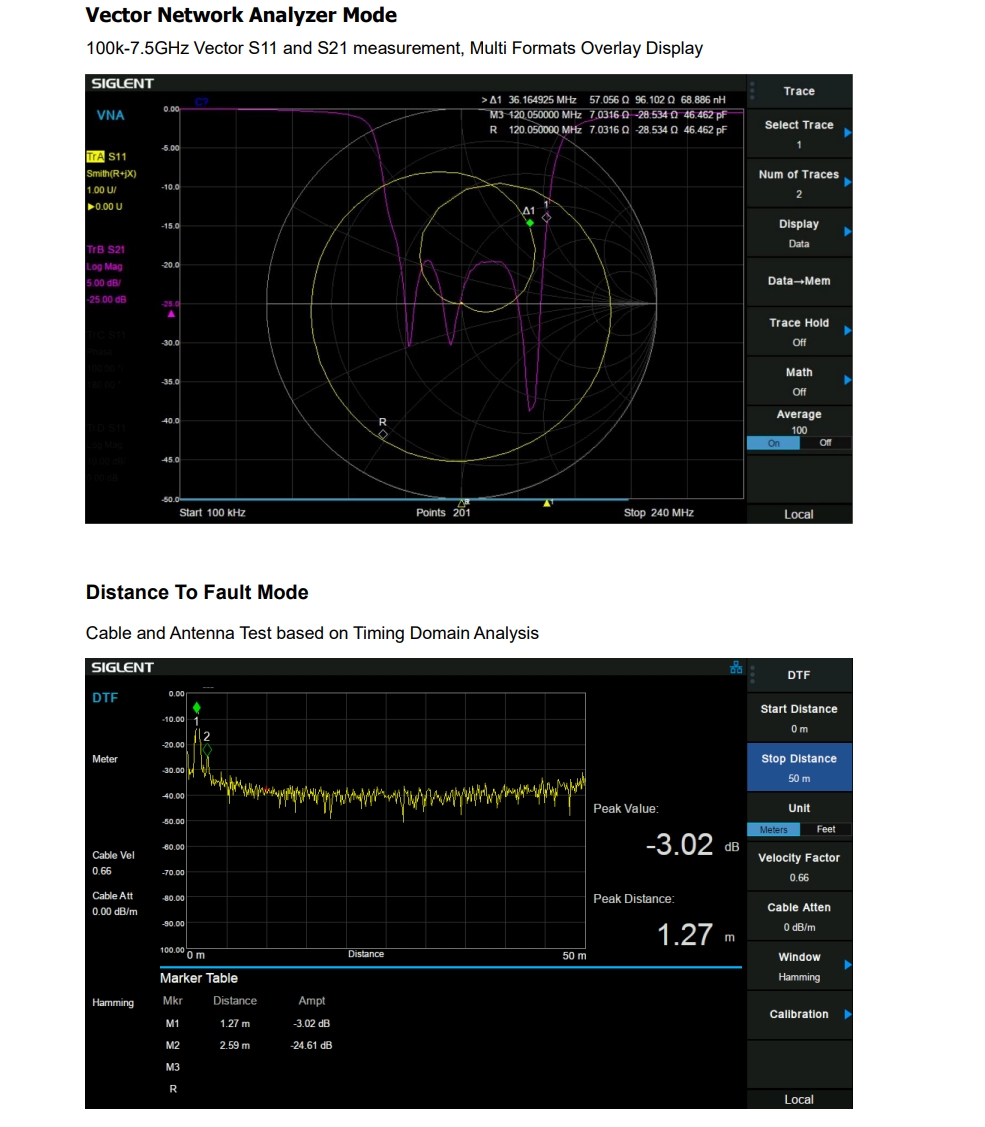

| SVA1000X-DTF | Distance To Fault | |

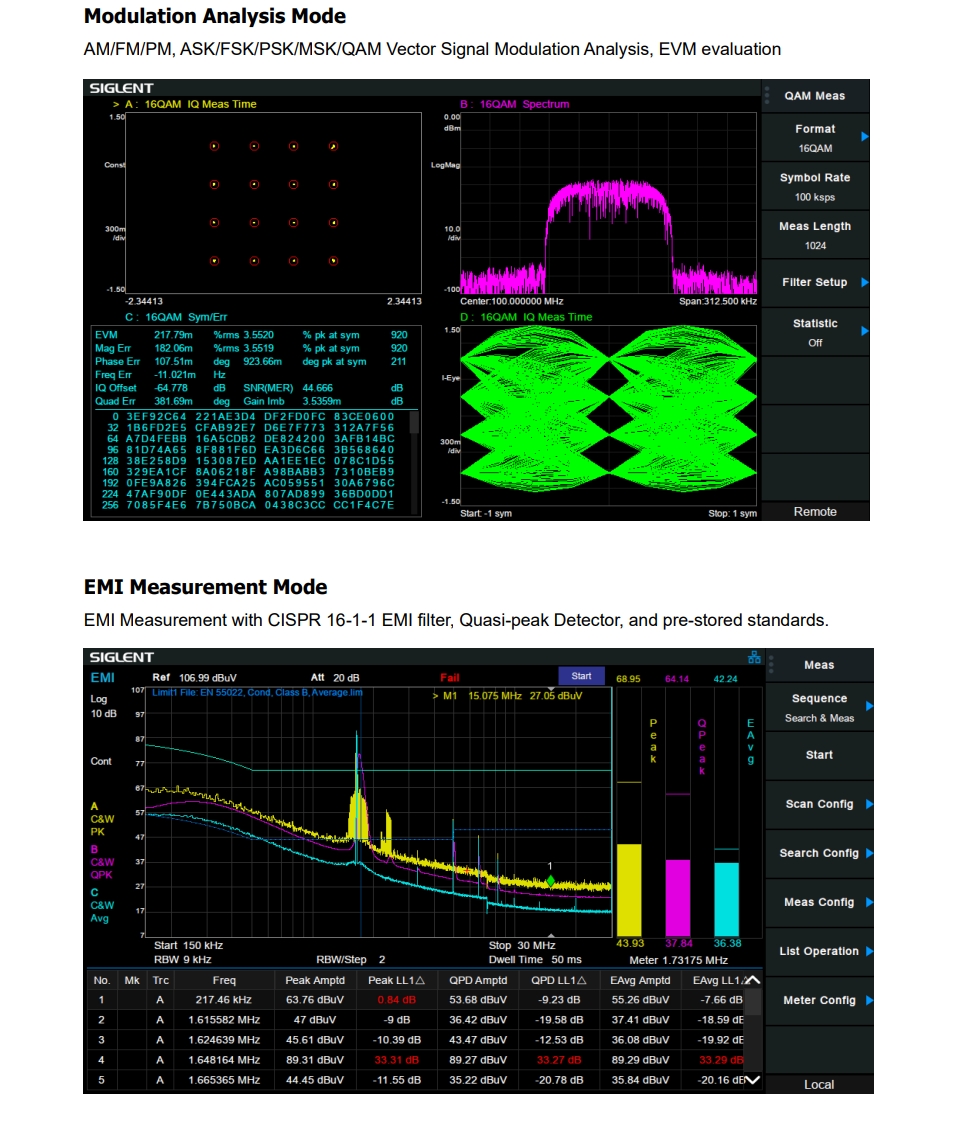

| SVA1000X-DMA | Digital Modulation Analysis Function,including ASK, FSK, MSK, xPSK, xQAM | |
| SVA1000X-AMA | Analog Modulation Analysis Function,including AM，FM | |
Reference: F603FE
Brand: Siglent

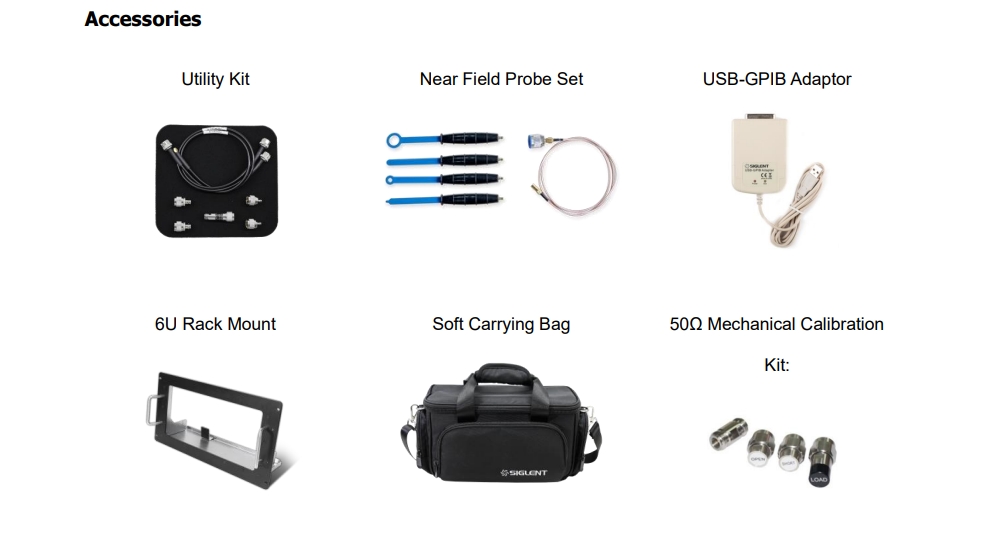

SMA-type Mechanical Calibration Kit Open(M), Short(M), Match(M,50), Through(F-F), 4.5 GHz Siglent 3-year Standard Warranty
Reference: SVA1000X-EMI
Brand: Siglent
Reference: SVA1000X-AMK
Brand: Siglent
Reference: SVA1000X-DTF
Brand: Siglent
Reference: SVA1000X-DMA
Brand: Siglent
Reference: SVA1000X-AMA
Brand: Siglent
Reference: SVA1075X
Brand: Siglent
100 kHz – 7.5 GHz Distance-to-fault (Optional) Frequency Range from 9 kHz to 7.5 GHz -165 dBm/Hz Displayed Average Noise Level (Typ.) -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Siglent 3-year Standard Warranty
Reference: SNA5032A
Brand: Siglent
High performance Vector Network Analyzer. support frequency&power sweep and smart segment sweep mode Support wide variety of RF component test: Amplifier, filter, Cable, High speed digital etc. Frequency Range: 9kHz~26.5GHz 2 Test Port, Internal bias Tee included 125dB dynamic Range IF BW: 10Hz~3MHz Fixture simulator and Time domain analysis function
Reference: SNA5002A
Brand: Siglent
High performance Vector Network Analyzer. support frequency&power sweep and smart segment sweep mode Support wide variety of RF component test: Amplifier, filter, Cable, High speed digital etc. Frequency Range: 9kHz~4.5GHz 2 Test Port, Internal bias Tee included 125dB dynamic Range IF BW: 10Hz~3MHz Fixture simulator and Time domain analysis function
Reference: SNA6032A
Brand: Siglent
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ Frequency resolution:1 Hz Level resolution: 0.05 dB Range of IFBW: 1 HZ~10 MHZ Setting range of output level: 55 dBm~+10 dBm Dynamic range: 135 dB Internal Bias-Tee connections Interface: LAN, USB Device, USB Host, (USB-GPIB) Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Reference: SNA6122A
Brand: Siglent
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ Frequency resolution:1 Hz Level resolution: 0.05 dB Range of IFBW: 1 HZ~10 MHZ Setting range of output level: 55 dBm~+10 dBm Dynamic range: 135 dB Internal Bias-Tee connections Interface: LAN, USB Device, USB Host, (USB-GPIB) Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Reference: SNA6132A
Brand: Siglent
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ Frequency resolution:1 Hz Level resolution: 0.05 dB Range of IFBW: 1 HZ~10 MHZ Setting range of output level: 55 dBm~+10 dBm Dynamic range: 135 dB Internal Bias-Tee connections Interface: LAN, USB Device, USB Host, (USB-GPIB) Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Reference: TRANSCOM-T6
Key Features: Frequency Range: 1MHz to 6.5GHz Low Noise Level：<-120 dBm (IFBW=10 Hz) Low Trace Noise：10 mdB rms (IFBW=3 kHz) High Measurement Speed：120 μs/point (IFBW=30 kHz) Remote Control: LabView Low Power Consumption：18W
Reference: SNA6022A
Brand: Siglent
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ Frequency resolution:1 Hz Level resolution: 0.05 dB Range of IFBW: 1 HZ~10 MHZ Setting range of output level: 55 dBm~+10 dBm Dynamic range: 135 dB Internal Bias-Tee connections Interface: LAN, USB Device, USB Host, (USB-GPIB) Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Reference: SNA5022A
Brand: Siglent
High performance Vector Network Analyzer. support frequency&power sweep and smart segment sweep mode Support wide variety of RF component test: Amplifier, filter, Cable, High speed digital etc. Frequency Range: 9kHz~13.5GHz 2 Test Port, Internal bias Tee included 125dB dynamic Range IF BW: 10Hz~3MHz Fixture simulator and Time domain analysis function
Reference: SVA1032X
Brand: Siglent
100 kHz – 3.2 GHz Distance-to-fault (Optional) Frequency Range from 9 kHz to 3.2 GHz -161 dBm/Hz Displayed Average Noise Level (Typ.) -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Siglent 3-year Standard Warranty
Reference: SNA5012A
Brand: Siglent
High performance Vector Network Analyzer. support frequency&power sweep and smart segment sweep mode Support wide variety of RF component test: Amplifier, filter, Cable, High speed digital etc. Frequency Range: 9kHz~8.5GHz 2 Test Port, Internal bias Tee included 125dB dynamic Range IF BW: 10Hz~3MHz Fixture simulator and Time domain analysis function
Reference: 3674
Brand: Ceyear
500Hz～110GHz 131dB@20GHz SDFR
