SIGLENT SVA1032X 3.2GHz 2-port VNA with Spectrum analysis

Reference SVA1032X

Brand Siglent

100 kHz – 3.2 GHz
Distance-to-fault (Optional)
Frequency Range from 9 kHz to 3.2 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
1 Hz Minimum Resolution Bandwidth (RBW)
Siglent 3-year Standard Warranty

$6,050.00

Quantity

In-stock, same-day dispatch

Description
Product Details

Description

SVA1000X Series Features:

5 Powerful Measurement Functions in 1 Affordable Instrument

Vector Network Analysis + EMI Pre-Compliance Test + Distance-to-Default and Antenna Measurement + Spectrum Analyzer + Modulation Analysis = SVA1000X

As a versatile analyzer for spectrum analysis and network analysis of Siglent Technology, SVA1000X employs advanced microwave technology and modern digital processing algorithms. It has multiple functions and excellent performance. With all the functions and performance of the SSA3000X spectrum analyzer series, also with the built-in 10 M-1.5 G directional coupler, it is a fully functional dual-port single-direction vector network analyzer. It is an ideal tool for education and RF engineers.

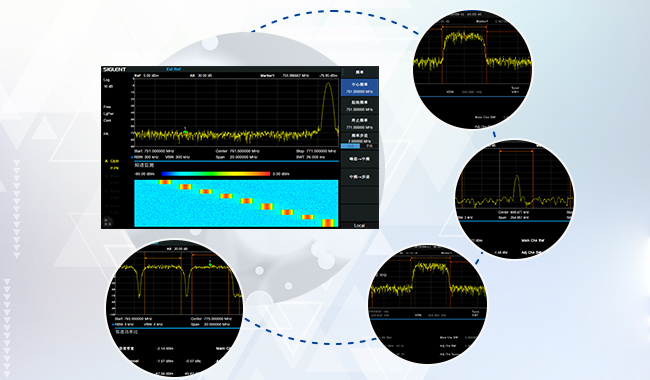

Vector network analysis

The frequency range is from a minimum of 10 MHz to a maximum of 1.5 GHz:

Vector network analysis, support simultaneous measurement of amplitude and phase response, and vector S11 and S21 parameters;

40 dB in single port direction, transmission dynamic range over 70 dB, support for port expansion and configurable speed factor;

Display reflection/transmission coefficient, return/insertion loss, phase, group delay, standing wave ratio, Smith chart, polar circle chart, etc.

DTF cable and antenna measurement, cable and antenna parameter measurement and analysis based on network analysis time domain measurement, can accurately locate cable faults, impedance analysis and other functions;

Support 3.5 G range N-type OSL mechanical calibration;

Low-cost EMI pre-compliance solution

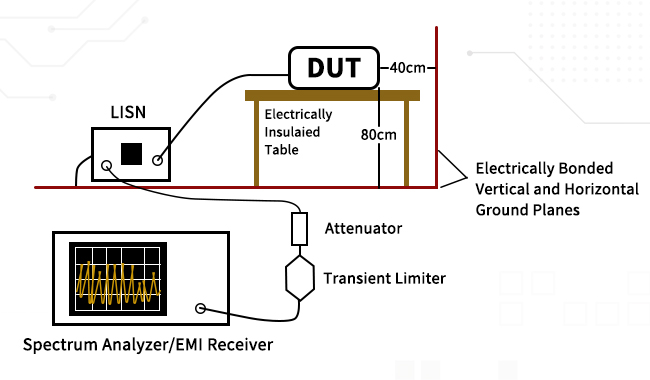

Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:

Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable

Support Limit line , Including EMI international standard limit template, or user-defined limit line

Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time

Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.

Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement

EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process

The PC software also supports the file configuration of the whole process, which is convenient for project management.

Deep analysis of modulated signals

Abundant demodulation analysis:

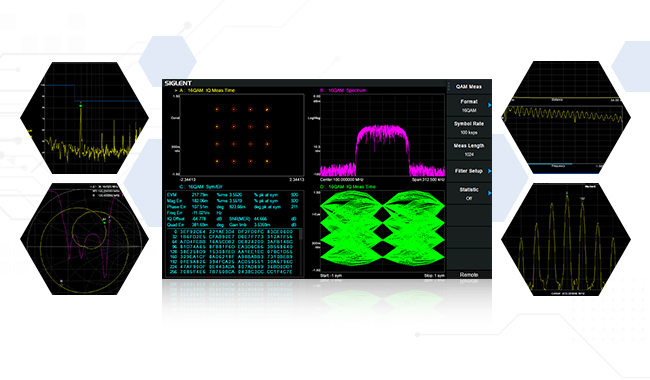

Supports AM/FM analog modulation analysis and complex modulation analysis functions such as ASK/FSK/PSK/MSK/QAM

EVM, amplitude and phase offset error, IQ offset error, gain imbalance and many other data analysis capabilities

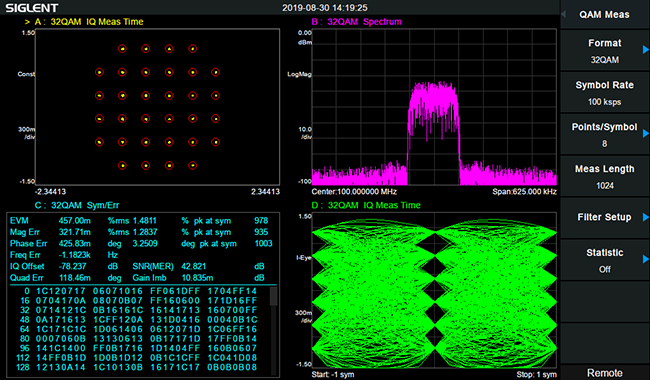

It has various analysis formats such as eye diagram, constellation diagram, phase diagram, time domain, frequency domain and error domain

Abundant power measurement

CHP, Channel Power

ACPR, Adjacent Channel Power Ratio

OBW, Occupied Bandwidth

T-Power, Time Domain Power

CNR, Carrier Noise Ratio

TOI, Third-Order Intercept

Harmonic measurement

Spectrum Monitor

Minimalist design, convenient and easy to use

Modern industrial design, simple display interface and operation mode

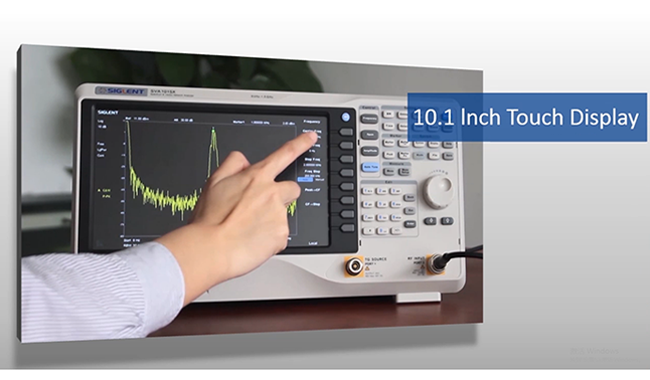

Multi-point capacitive touch screen , support mouse and keyboard

Support screen editing and protection

Advanced remote control: support remote network monitoring based on computer or monbile terminal equipment, FTP file operation

SVA1000Series Models and Main Index

User Manual Data Sheet Programming Guide Service Manual

All the Siglent products are eligble for education discount. Please send your inquiry to admin@appvision.com.au to get the discounted quotation if you are from Unviersities, TAFEs, CSIRO, high schools or other education organisations
SVA1000X-AMK	Advanced measurement kit ,including ACPR, CHPower, OBW and so on.	please send your inquiry to admin@appvision.com.au to get the quotation
SVA1000X-EMI	EMI measurement kit
SVA1000X-DTF	Distance To Fault
SVA1000X-DMA	Digital Modulation Analysis Function,including ASK, FSK, MSK, xPSK, xQAM
SVA1000X-AMA	Analog Modulation Analysis Function,including AM，FM
