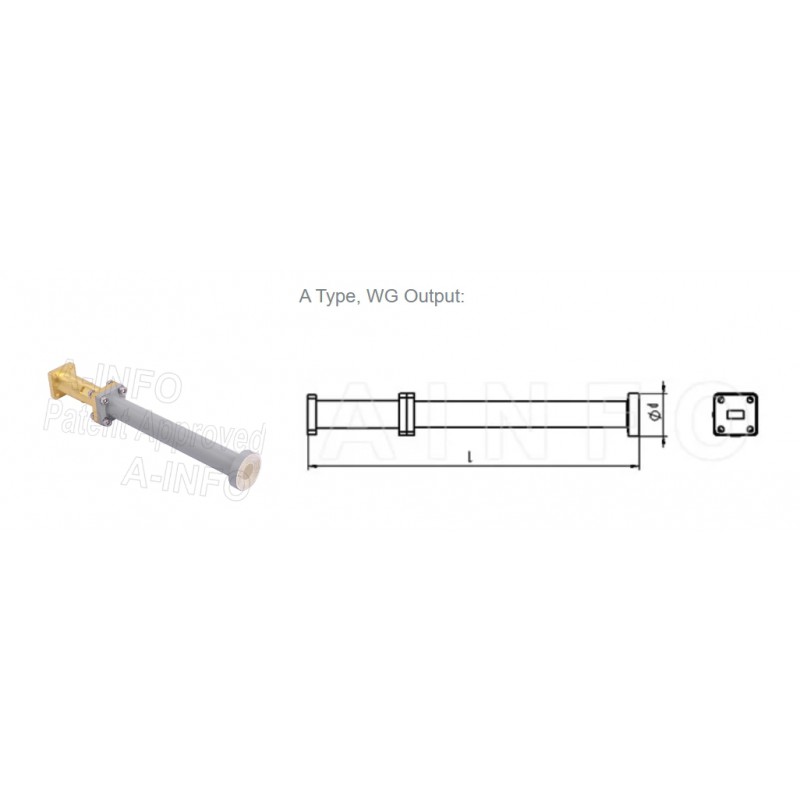

A-INFO 0.75GHz to 220GHz Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface

Reference: A-INFO Standard Gain Horn Antennas

Brand: A-INFO

A-INFO 320MHz to 500GHz Standard Gain Horn Antennas

The LB series standard gain horn antennas are linearly polarized and provide an efficient low cost means of making measurements. A-INFO's standard gain horn antenna can cover from 320MHz to 500GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications.

Reference: A-INFO Conical Horn Antennas

Brand: A-INFO

A-INFO 5.3GHz to 220GHz Conical Horn with Other Circular WG Interface

The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...

Reference: LB-34-20

Brand: A-INFO

Standard Gain Horn Antenna, 22-33GHz 20dB Gain

Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...

Reference: A-INFO Conical Horn Antennas

Brand: A-INFO

A-INFO 5.3GHz to 220GHz Conical Horn with Polarizer and Ortho-Mode Transducer (OMT) - Dual Circular Polarization

The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...

Reference: A-INFO Dual Polarization Waveguide Probes

Brand: A-INFO

A-INFO 2.6 to 220GHz Dual Polarization Waveguide Probes with V Port Endlaunch Coaxial Interface, Equipped with Absorber

A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.

Reference: LB-34-20-C-KF

Brand: A-INFO

Standard Gain Horn Antenna, 22-33GHz 20dB Gain WR34

Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...

Reference: A-INFO Broadband Horn Antenna

Brand: A-INFO

A-INFO 100MHz-110GHz Broadband Waveguide Horn Antenna

The LB series broadband waveguide horn antennas are linearly polarized and provide an efficient low cost means of making broadband measurements. A-INFO's horn antenna can cover from 100MHz to 110GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other...

Reference: A-INFO Broadband Dual Polarization Horn Antenna

Brand: A-INFO

A-INFO 1GHz-67GHz Broadband Dual Polarization Horn Antenna

Reference: A-INFO Corrugated Feed Horn Antennas

Brand: A-INFO

A-INFO 0.75GHz to 220GHz Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface, Dual Linear Polarization

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn...

Reference: A-INFO Dual Polarization Waveguide Probes

Brand: A-INFO

A-INFO 2.6 to 220GHz Dual Polarization Waveguide Probes with Right Angle Coaxial Interface

A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.

Reference: A-INFO Broadband Conical Dual Polarization Horn Antenna

Brand: A-INFO

A-INFO 2GHz-40GHz Conical Dual Polarization Horn Antenna

Reference: A-INFO Conical Horn Antennas

Brand: A-INFO

A-INFO 5.3GHz to 220GHz Conical Horn with Integrated Rectangular WG Transition - Linear Polarization

The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...

Reference: A-INFO Conical Horn Antennas

Brand: A-INFO

A-INFO 5.3GHz to 220GHz Conical Horn with EIA Standard Circular WG Interface

The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...

Reference: A-INFO Open Boundary Quad-Ridged Horn Antenna

Brand: A-INFO

A-INFO 400MHz-50GHz Open Boundary Quad-Ridged Horn Antenna

Reference: A-INFO Diagonal Horn Antennas

Brand: A-INFO

A-INFO 750MHz to 220GHz Diagonal Horn Antennas

The LB-DG series diagonal horn antennas are linearly polarized and provide a symmetrical radiation pattern and extremely low side-lobes. A-INFO's diagonal horn antenna can cover from 750MHz to 220GHz frequency range. These horns are ideally suited for illumination of anechoic chamber, antenna far field test, radar cross section (RCS) measurement and other...

Reference: A-INFO Dual Polarization Waveguide Probes

Brand: A-INFO

A-INFO 2.6 to 220GHz Dual Polarization Waveguide Probes with V Port Endlaunch Coaxial Interface

A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.
