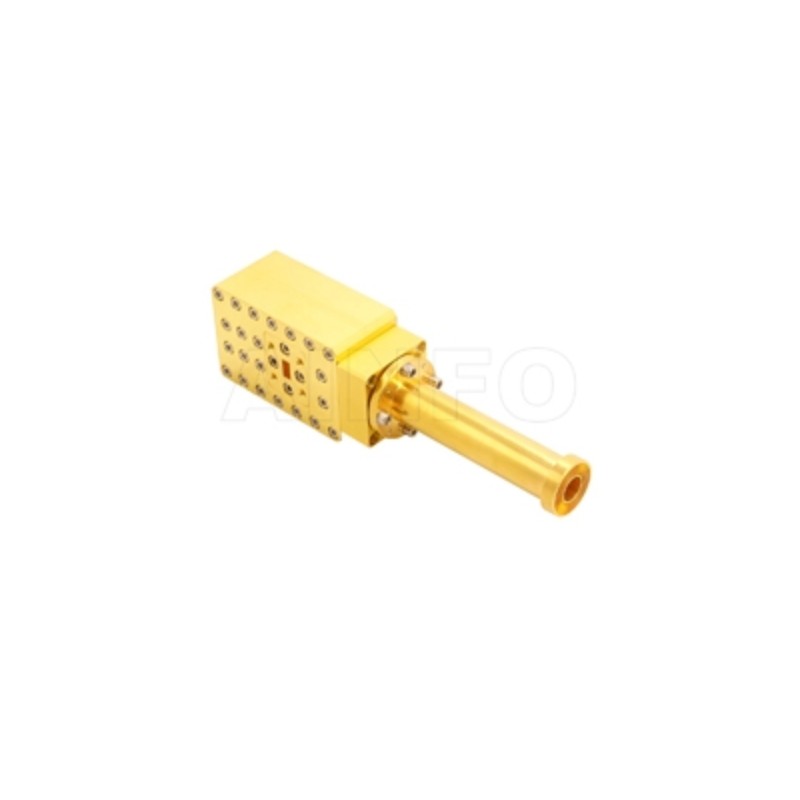

A-INFO 0.75GHz to 220GHz Corrugated Feed Horn Antennas with Waveguide and Coaxial Interface, Dual Linear Polarization

A-INFO Corrugated Feed Horn Antennas
A-INFO

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn antennas can cover from 0.75GHz to 220GHz frequency range. Those feed horn antennas are precisely fabricated to minimize the tolerance of aperture corrugated groove and are ideally suited for Compact Antenna Test Range(CATR), Reflector antennas and other applications. All feed horn antennas have an option of integration with absorber for better gain flatness and radiation pattern.

Quantity

Description

Product Details
A-INFO Corrugated Feed Horn Antennas
