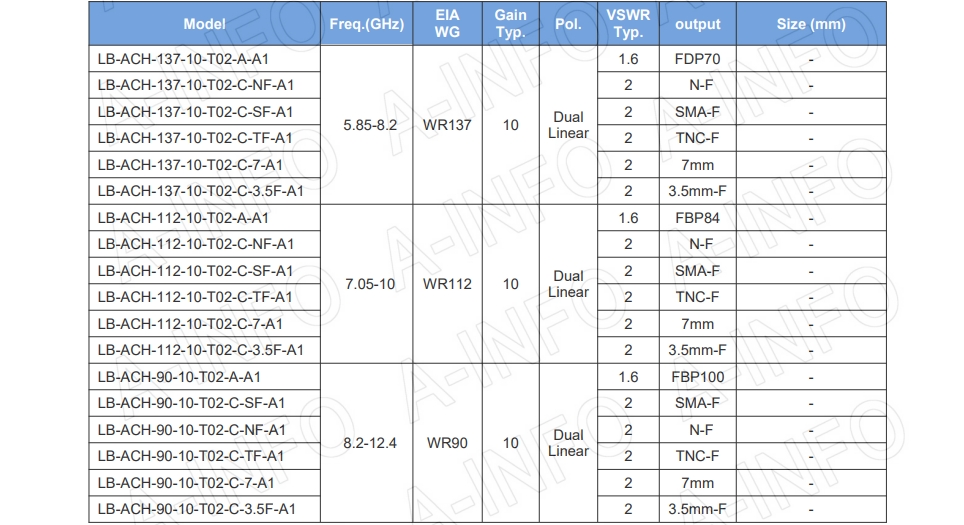

LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn antennas can cover from 0.75GHz to 220GHz frequency range. Those feed horn antennas are precisely fabricated to minimize the tolerance of aperture corrugated groove and are ideally suited for Compact Antenna Test Range(CATR), Reflector antennas and other applications. All feed horn antennas have an option of integration with absorber for better gain flatness and radiation pattern.
Reference: LB-CH-28-20-T26
Brand: A-INFO
Applications: > 5G Applications and Systems > Millimeter Wave Test > Near Field, Far Field, CATR, and OTA > Short Distance Wireless Communication > UWB Communication Systems > Radar Systems > Other Applications
Reference: A-INFO Conical Horn Antennas
Brand: A-INFO
The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...
Reference: A-INFO Diagonal Horn Antennas
Brand: A-INFO
The LB-DG series diagonal horn antennas are linearly polarized and provide a symmetrical radiation pattern and extremely low side-lobes. A-INFO's diagonal horn antenna can cover from 750MHz to 220GHz frequency range. These horns are ideally suited for illumination of anechoic chamber, antenna far field test, radar cross section (RCS) measurement and other...
Reference: A-INFO Octave Horn Antennas
Brand: A-INFO
The LB series octave horn antennas are linearly polarized and provide an efficient low cost means of making measurements. A-INFO's octave horn antenna can cover from 1GHz to 12GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other applications.
Reference: A-INFO Conical Horn Antennas
Brand: A-INFO
The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...
Reference: LB-34-20
Brand: A-INFO
Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...
Reference: A-INFO Rectangular Waveguide Probes with Waveguide Interface
Brand: A-INFO
A-INFO's Open Ended WG Probes have been specifically designed for near-field measurement. The EWG series Open Ended Waveguide Probes are Linear Polarization and are covering the frequency range from 0.32 to 110GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.
Reference: A-INFO Conical Horn Antennas
Brand: A-INFO
The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...
Reference: LB-34-20-C-KF_1
Brand: A-INFO
Frequency Range: 22-33 GHz Waveguide Type: Rectangular Waveguide Size EIA WR: WR34 Gain, Typ: 20 dB Polarization: Linear 3dB Beamwidth, E-Plane, Typ (Deg.) 15 3dB Beamwidth, H-Plane, Typ (Deg.) 17 Cross Pol. Isolation, Typ (dB): 25dB Application: General Purpose Indoor & Outdoor, FixedSolution for: Gain Reference, Antenna Measurement, Reflector Feed,...
Reference: A-INFO Dual Polarization Waveguide Probes
Brand: A-INFO
A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.
Reference: A-INFO Broadband Horn Antenna
Brand: A-INFO
The LB series broadband waveguide horn antennas are linearly polarized and provide an efficient low cost means of making broadband measurements. A-INFO's horn antenna can cover from 100MHz to 110GHz frequency range. These horns are ideally suited for EMI testing, direction finding, surveillance, antenna gain and pattern measurements and other...
Reference: A-INFO Conical Horn Antennas
Brand: A-INFO
The LB-CNH series conical horn antennas have four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular. And YLB series conical horn antennas are Linear Polarization. A-INFO's conical horn antenna can cover from 5.3GHz to 220GHz frequency range. Those conical horns are precisely fabricated to minimize the tolerance of...
Reference: A-INFO Dual Polarization Waveguide Probes
Brand: A-INFO
A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.
Reference: A-INFO Gaussian Optical Lens Horn Antennas
Brand: A-INFO
GL and GLC series Gaussian optical lens horn antenna are especially useful when high gain is required with the minimum size. They are composed by feed and lens in order to apply phase correction and achieve superior performance with minimum size. The antenna employs a corrugated or conical feed horn to offer excellent aperture efficiency, high cross...
Reference: A-INFO Dual Polarization Waveguide Probes
Brand: A-INFO
A-INFO's Dual Polarization WG Probes have been specifically designed for near-field measurement. The EWG series Dual Polarization Waveguide Probes are dual Polarization and are covering the frequency range from 2.6 to 220GHz by using standard WG band. All probes have an option of integration with absorber for better gain flatness and radiation pattern.
LB-ACH series corrugated feed horn antennas have features like: rotationally symmetric radiation pattern, low cross polarization and stable amplitude taper within operating frequency. There are four kinds of polarization options: Linear, Circular(RHCP/LHCP), Dual Linear and Dual Circular for LB-ACH series feed horn antenna. A-INFO's corrugated feed horn antennas can cover from 0.75GHz to 220GHz frequency range. Those feed horn antennas are precisely fabricated to minimize the tolerance of aperture corrugated groove and are ideally suited for Compact Antenna Test Range(CATR), Reflector antennas and other applications. All feed horn antennas have an option of integration with absorber for better gain flatness and radiation pattern.
