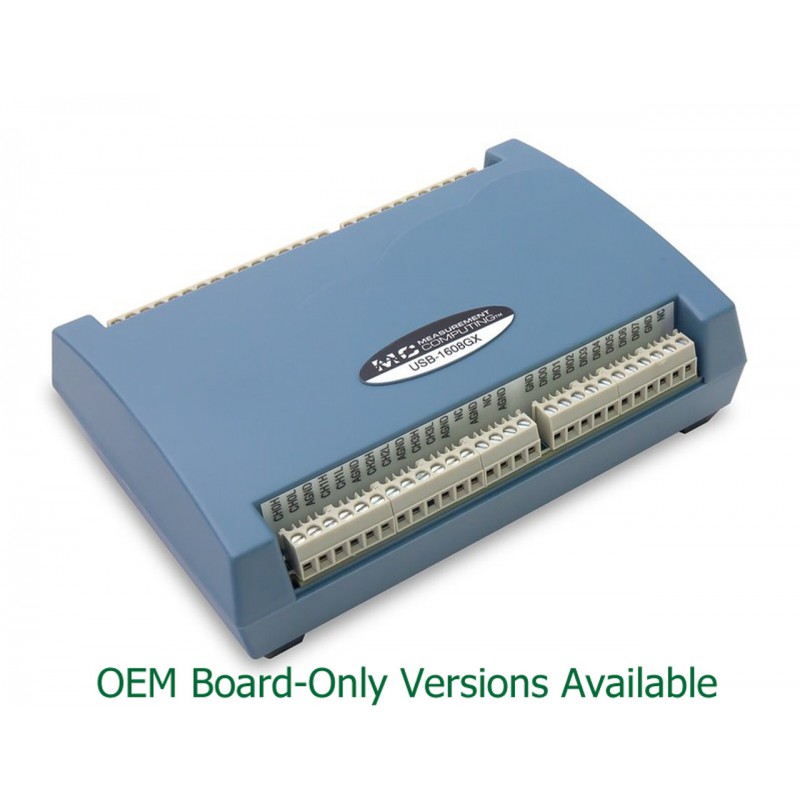

The USB-1608GX and USB-1608GX-2AO are multifunction, high-speed, analog and digital I/O USB devices. Each device offers up to 16 SE/8 DIFF analog inputs, eight digital I/O channels, two counter inputs, and one timer output. The USB-1608GX-2AO features two, 16-bit analog output channels with DAC rates up to 500 kS/s.
USB-1608G-OEM: DAQ device with 16 SE/8 DIFF analog inputs, 16-bit resolution, 250 kS/s sample rate, 8 digital I/O, and 2 counter inputs. OEM version removes enclosure and screw terminals and adds headers.
USB-1608GX-2AO-OEM: DAQ device with 16 SE/8 DIFF analog inputs, 16-bit resolution, 500 kS/s sample rate, 2 analog outputs, 8 digital I/O, and 2 counter inputs. OEM version removes enclosure and screw terminals and adds headers.
Key Features
16 single-ended (SE) or eight differential (DIFF) analog input channels
Up to eight analog inputs can be configured for thermocouples measurements
24-bit resolution
1 kS/s sample rate
Two 16-bit analog output channels
Eight digital I/O channels
Two counter channels (32-bit) that count TTL pulses
500 VDC input isolation between field wiring...
Key Features
USB-201 & USB-202: 100 kS/s sample rate
USB-205: 500 kS/s sample rate
USB-202 & USB-205: Two analog outputs
Eight SE analog inputs
12-bit resolution
+/-10 V input range
Eight digital I/O
One 32-bit event counter input
External pacer I/O
No external power required
Key Features
USB-201 & USB-202: 100 kS/s sample rate
USB-205: 500 kS/s sample rate
USB-202 & USB-205: Two analog outputs
Eight SE analog inputs
12-bit resolution
+/-10 V input range
Eight digital I/O
One 32-bit event counter input
External pacer I/O
No external power required
Key Features
8 SE/8 DIFF simultaneous analog inputs
18-bit resolution
200 kS/s/ch sample rate
±10 V, ±5 V, 0-10 V, 0-5 V input ranges
Two 16-bit analog outputs
Four digital I/O
Two counter inputs
Two quadrature encoder inputs
Two timer outputs
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
8 SE/4 DIFF analog inputs
13-bit resolution
1 MS/s sample rate
±20 V, ±10 V, ±5 V, ±2.5 V, 0-10 V input ranges
Four 12-bit analog outputs
16 digital I/O
Two counter inputs
One timer output
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: 3A992.a
Key Features
Analog input
Channels: Up to 48
Resolution: 24-bit
Max sample rate: 10 S/s/ch
Sampling: Simultaneous
Ranges: ±10 V, ±60 VDC (±30 VAC)
Isolation: ±60 V ch-ch (functional); ±500 V ch-ch (peak withstand)
Sensors:
Thermocouple
RTD
Voltage
Digital I/O:
16 channels
Key Features
USB-2627: 16 SE analog inputs
USB-2637: 64 SE analog inputs
16-bit resolution
1 MS/s sample rate
±10 V input range
Four 16-bit analog outputs
24 digital I/O
Four counter inputs
Four timer outputs
No external power required
Key Features
8 SE/4 DIFF analog inputs
16-bit resolution
USB-231: 50 kS/s sample rate
USB-234: 100 kS/s sample rate
±10 V input range
Two 16-bit analog outputs
Eight digital I/O
One counter input
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
USB-2627: 16 SE analog inputs
USB-2637: 64 SE analog inputs
16-bit resolution
1 MS/s sample rate
±10 V input range
Four 16-bit analog outputs
24 digital I/O
Four counter inputs
Four timer outputs
No external power required
Key Features
USB-201 & USB-202: 100 kS/s sample rate
USB-205: 500 kS/s sample rate
USB-202 & USB-205: Two analog outputs
Eight SE analog inputs
12-bit resolution
+/-10 V input range
Eight digital I/O
One 32-bit event counter input
External pacer I/O
No external power required
Key Features
8 SE/4 DIFF analog inputs
16-bit resolution
USB-231: 50 kS/s sample rate
USB-234: 100 kS/s sample rate
±10 V input range
Two 16-bit analog outputs
Eight digital I/O
One counter input
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
Four SE simultaneous analog inputs
16-bit resolution
1.33 MS/s/ch sample rate
±10 V, ±2.5 V, ±500 mV input ranges
32 digital I/O
Two analog outputs
Four counter inputs
Three quadrature encoder inputs
Two timer outputs
