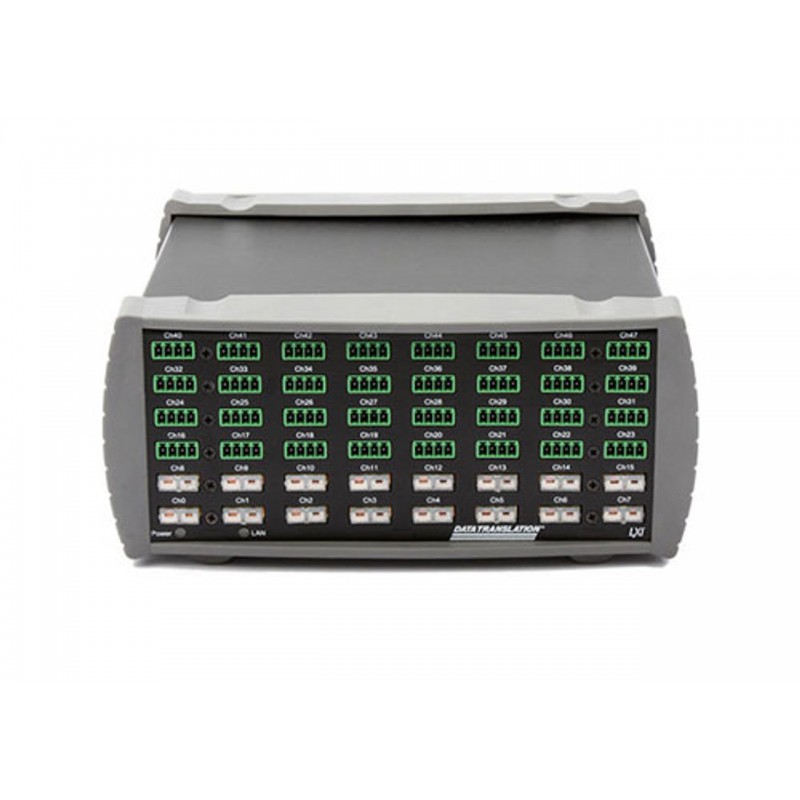

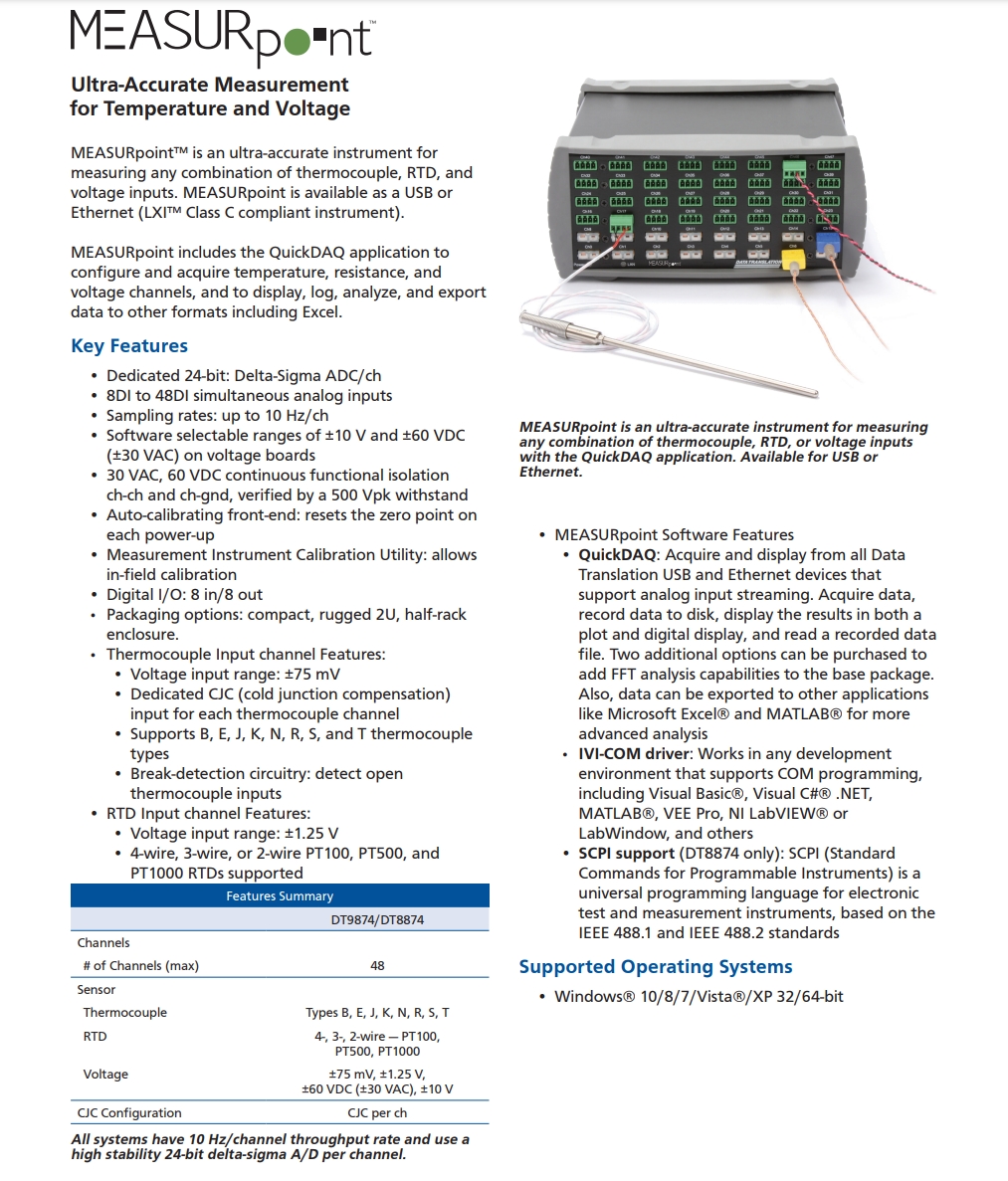

MCC MEASURpoint temperature/voltage remote measurement systems and provide simultaneous analog input and any combination of isolated temperature, resistance, and voltage measurements. These devices feature one A/D per channel and auto calibration in a rugged half rack enclosure for immediate productivity.
Choose from the following options:
DT8874-00T-00R-16V: MEASURpoint Ethernet Instrument; 16 Voltage inputs
DT8874-00T-00R-48V: MEASURpoint Ethernet Instrument; 48 Voltage inputs
DT8874-00T-16R-32V: MEASURpoint Ethernet Instrument; 16 RTD inputs, 32 Voltage inputs
DT8874-00T-40R-08V: MEASURpoint Ethernet Instrument; 40 RTD inputs, 8 Voltage inputs
DT8874-08T-00R-40V: MEASURpoint Ethernet Instrument; 8 Thermocouple inputs, 40 Voltage inputs
Key Features
16 single-ended (SE) or eight differential (DIFF) analog input channels
Up to eight analog inputs can be configured for thermocouples measurements
24-bit resolution
1 kS/s sample rate
Two 16-bit analog output channels
Eight digital I/O channels
Two counter channels (32-bit) that count TTL pulses
500 VDC input isolation between field wiring...
Key Features
8 SE/8 DIFF simultaneous analog inputs
18-bit resolution
200 kS/s/ch sample rate
±10 V, ±5 V, 0-10 V, 0-5 V input ranges
Two 16-bit analog outputs
Four digital I/O
Two counter inputs
Two quadrature encoder inputs
Two timer outputs
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
8 SE/4 DIFF analog inputs
13-bit resolution
1 MS/s sample rate
±20 V, ±10 V, ±5 V, ±2.5 V, 0-10 V input ranges
Four 12-bit analog outputs
16 digital I/O
Two counter inputs
One timer output
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: 3A992.a
Key Features
USB 2.0 Hi-speed, USB bus power
4-CH simultaneous-sampling analog input, up to 2MS/s per channel
500VDC Isolation & 256M samples FIFO
Analog and digital triggering
Removable screw terminals on the module
Lockable USB cable for secure connective
Key Features
USB-201 & USB-202: 100 kS/s sample rate
USB-205: 500 kS/s sample rate
USB-202 & USB-205: Two analog outputs
Eight SE analog inputs
12-bit resolution
+/-10 V input range
Eight digital I/O
One 32-bit event counter input
External pacer I/O
No external power required
Key Features
8 SE/4 DIFF analog inputs
16-bit resolution
USB-231: 50 kS/s sample rate
USB-234: 100 kS/s sample rate
±10 V input range
Two 16-bit analog outputs
Eight digital I/O
One counter input
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
8 SE/4 DIFF analog inputs
16-bit resolution
USB-231: 50 kS/s sample rate
USB-234: 100 kS/s sample rate
±10 V input range
Two 16-bit analog outputs
Eight digital I/O
One counter input
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
Four SE simultaneous analog inputs
16-bit resolution
1.33 MS/s/ch sample rate
±10 V, ±2.5 V, ±500 mV input ranges
32 digital I/O
Two analog outputs
Four counter inputs
Three quadrature encoder inputs
Two timer outputs
Key Features
16 SE/8 DIFF analog inputs
16-bit resolution
500 kS/s sample rate
±10 V, ±5 V, ±2 V, ±1 V input ranges
Two analog outputs (USB-1608GX-2AO only)
Eight digital I/O
Two counter inputs
One timer output
No external power required
Product Compliance:
HTC: 8471.80.9000
ECCN: EAR99
Key Features
USB-2627: 16 SE analog inputs
USB-2637: 64 SE analog inputs
16-bit resolution
1 MS/s sample rate
±10 V input range
Four 16-bit analog outputs
24 digital I/O
Four counter inputs
Four timer outputs
No external power required
