Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

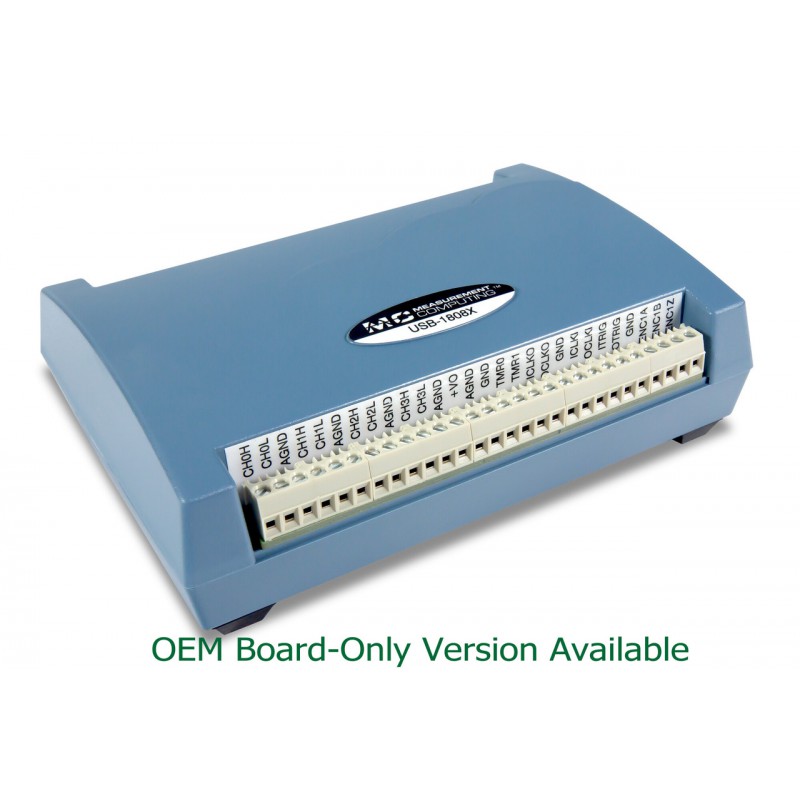

The USB-1808X features eight high-precision, simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs.
USB-1808X-OEM: DAQ device with 8 SE/8 DIFF simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, 2 analog outputs, 4 digital I/O, 2 counter inputs, and 2 quadrature encoder inputs. OEM version removes enclosure and screw terminals and adds headers.
Reference: MCC USB-1608FS-Plus
Brand: Digilent
Key Features 8 SE simultaneous analog inputs 16-bit resolution 100 kS/s/ch sample rate (400 kS/s aggregate) ±10 V, ±5 V, ±2 V, ±1 V input ranges Eight digital I/O One counter input No external power required Product Compliance: HTC: 8471.80.9000 ECCN: EAR99
Reference: MCC USB-1208HS-4AO
Brand: Digilent
Key Features 8 SE/4 DIFF analog inputs 13-bit resolution 1 MS/s sample rate ±20 V, ±10 V, ±5 V, ±2.5 V, 0-10 V input ranges Four 12-bit analog outputs 16 digital I/O Two counter inputs One timer output No external power required Product Compliance: HTC: 8471.80.9000 ECCN: 3A992.a
Reference: MCC USB-200 Series
Brand: Digilent
Key Features USB-201 & USB-202: 100 kS/s sample rate USB-205: 500 kS/s sample rate USB-202 & USB-205: Two analog outputs Eight SE analog inputs 12-bit resolution +/-10 V input range Eight digital I/O One 32-bit event counter input External pacer I/O No external power required
Reference: MCC USB-1608G Series
Brand: Digilent
Key Features 16 SE/8 DIFF analog inputs 16-bit resolution 500 kS/s sample rate ±10 V, ±5 V, ±2 V, ±1 V input ranges Two analog outputs (USB-1608GX-2AO only) Eight digital I/O Two counter inputs One timer output No external power required Product Compliance: HTC: 8471.80.9000 ECCN: EAR99
Reference: MCC USB-1208FS-Plus/1408FS-Plus Series
Brand: Digilent
Key Features Eight SE/four DIFF analog inputs 12-bit resolution (USB-1208FS-plus & USB-1208LS) 14-bit resolution (USB-1408FS-Plus) Two analog outputs 16 digital I/O One counter input USB-1208LS: 1.2 kS/s sample rate USB-1208FS-Plus: 50 kS/s sample rate USB-1408FS-Plus: 48 kS/s sample rate ±10 V (Single-ended mode); ±20 V, ±10 V, ±5 V, ±4 V, ±2.5 V, ±2...
Reference: MCC USB-230 Series
Brand: Digilent
Key Features 8 SE/4 DIFF analog inputs 16-bit resolution USB-231: 50 kS/s sample rate USB-234: 100 kS/s sample rate ±10 V input range Two 16-bit analog outputs Eight digital I/O One counter input No external power required Product Compliance: HTC: 8471.80.9000 ECCN: EAR99
Reference: MCC MEASURpoint
Brand: Digilent
Key Features Analog input Channels: Up to 48 Resolution: 24-bit Max sample rate: 10 S/s/ch Sampling: Simultaneous Ranges: ±10 V, ±60 VDC (±30 VAC) Isolation: ±60 V ch-ch (functional); ±500 V ch-ch (peak withstand) Sensors: Thermocouple RTD Voltage Digital I/O: 16 channels
Reference: USB-1210
Brand: ADLINK
Key Features USB 2.0 Hi-speed, USB bus power 4-CH simultaneous-sampling analog input, up to 2MS/s per channel 500VDC Isolation & 256M samples FIFO Analog and digital triggering Removable screw terminals on the module Lockable USB cable for secure connective
Reference: MCC USB-2600 Series
Brand: Digilent
Key Features USB-2627: 16 SE analog inputs USB-2637: 64 SE analog inputs 16-bit resolution 1 MS/s sample rate ±10 V input range Four 16-bit analog outputs 24 digital I/O Four counter inputs Four timer outputs No external power required
Reference: MCC DT9816-S
Brand: Digilent
Low Cost, Simultaneous USB DAQ Device
Reference: MCC USB-2404-UI
Brand: Digilent
Key Features 4 simultaneous analog inputs 24-bit resolution 100 S/s/ch sample rate Universal inputs measure voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors ±60 V, ±15 V, ±10 V, ±4 V, ±1 V, ±125 mV input ranges 250 Vrms channel to channel isolation No external power required Product Compliance: HTC: 8471.80.9000 ECCN: EAR99
Reference: MCC USB-1604HS-2AO
Brand: Digilent
Key Features Four SE simultaneous analog inputs 16-bit resolution 1.33 MS/s/ch sample rate ±10 V, ±2.5 V, ±500 mV input ranges 32 digital I/O Two analog outputs Four counter inputs Three quadrature encoder inputs Two timer outputs
Reference: MCC USB-200 Series
Brand: Digilent
Key Features USB-201 & USB-202: 100 kS/s sample rate USB-205: 500 kS/s sample rate USB-202 & USB-205: Two analog outputs Eight SE analog inputs 12-bit resolution +/-10 V input range Eight digital I/O One 32-bit event counter input External pacer I/O No external power required
Reference: MCC USB-2408-2AO
Brand: Digilent
Key Features 16 single-ended (SE) or eight differential (DIFF) analog input channels Up to eight analog inputs can be configured for thermocouples measurements 24-bit resolution 1 kS/s sample rate Two 16-bit analog output channels Eight digital I/O channels Two counter channels (32-bit) that count TTL pulses 500 VDC input isolation between field wiring...
Reference: MCC USB-200 Series
Brand: Digilent
Key Features USB-201 & USB-202: 100 kS/s sample rate USB-205: 500 kS/s sample rate USB-202 & USB-205: Two analog outputs Eight SE analog inputs 12-bit resolution +/-10 V input range Eight digital I/O One 32-bit event counter input External pacer I/O No external power required
Reference: MCC USB-230 Series
Brand: Digilent
Key Features 8 SE/4 DIFF analog inputs 16-bit resolution USB-231: 50 kS/s sample rate USB-234: 100 kS/s sample rate ±10 V input range Two 16-bit analog outputs Eight digital I/O One counter input No external power required Product Compliance: HTC: 8471.80.9000 ECCN: EAR99
