ADLINK PCI-9223, 32-CH 16-Bit 500 KS/s ±10V Multi-Function DAQ Cards & 2-CH Encoder
  • ADLINK PCI-9223, 32-CH 16-Bit 500 KS/s ±10V Multi-Function DAQ Cards & 2-CH Encoder
  • ADLINK PCI-9223, 32-CH 16-Bit 500 KS/s ±10V Multi-Function DAQ Cards & 2-CH Encoder

ADLINK PCI-9223, 32-CH 16-Bit 500 KS/s ±10V Multi-Function DAQ Cards & 2-CH Encoder

PCI-9223
ADLINK

Key Features

  • Programmable gains for analog input: ±10V, ±5V, ±2.5V, ±2V, ±1V, ±500mV, ±250mV
  • 2-CH 16-bit simultaneous analog outputs, supporting up to 1 MS/s update rate
  • Programmable function I/O, supporting TTL DIO, 2MHz high-speed DIO, timer/counter, and PWM outputs
  • 2-CH 4 MHz encoder inputs, supporting AB phase, and CW/CCW
  • Dedicated DMA channels for A/D, D/A, and high-speed DIO
  • External digital trigger for A/D, D/A, and high-speed DIO
  • Auto-calibration
  • Recommended for new applications
Quantity

Description


The ADLINK PCI-9222/PCI-9223 is a 16-bit, 16/32-CH, 250/500 KS/s high performance DAQ card with 8 different input ranges. It also features 2-CH 16-bit analog outputs capable of a 1 MS/s update rate, 2-CH encoder inputs, and programmable function I/O. The software-programmable function I/O supports a variety of applications, including TTL digital I/O, high-speed DIO, general-purpose timer/counter, pulse generation, and PWM output. Analog input, analog output, and function I/O at full speed simultaneously, and multiple cards can be synchronized through the SSI (System Synchronization Interface) bus if users need more channels than a single board can provide. Ideal for mixed-signal tests, laboratory research, and factory automation, PCI-9222/PCI-9223 is the best single-board solution on the market providing the best integration capability of multiple tasks with high performance and an affordable price.

Product Details
PCI-9223
Attachments
Download
Datasheet

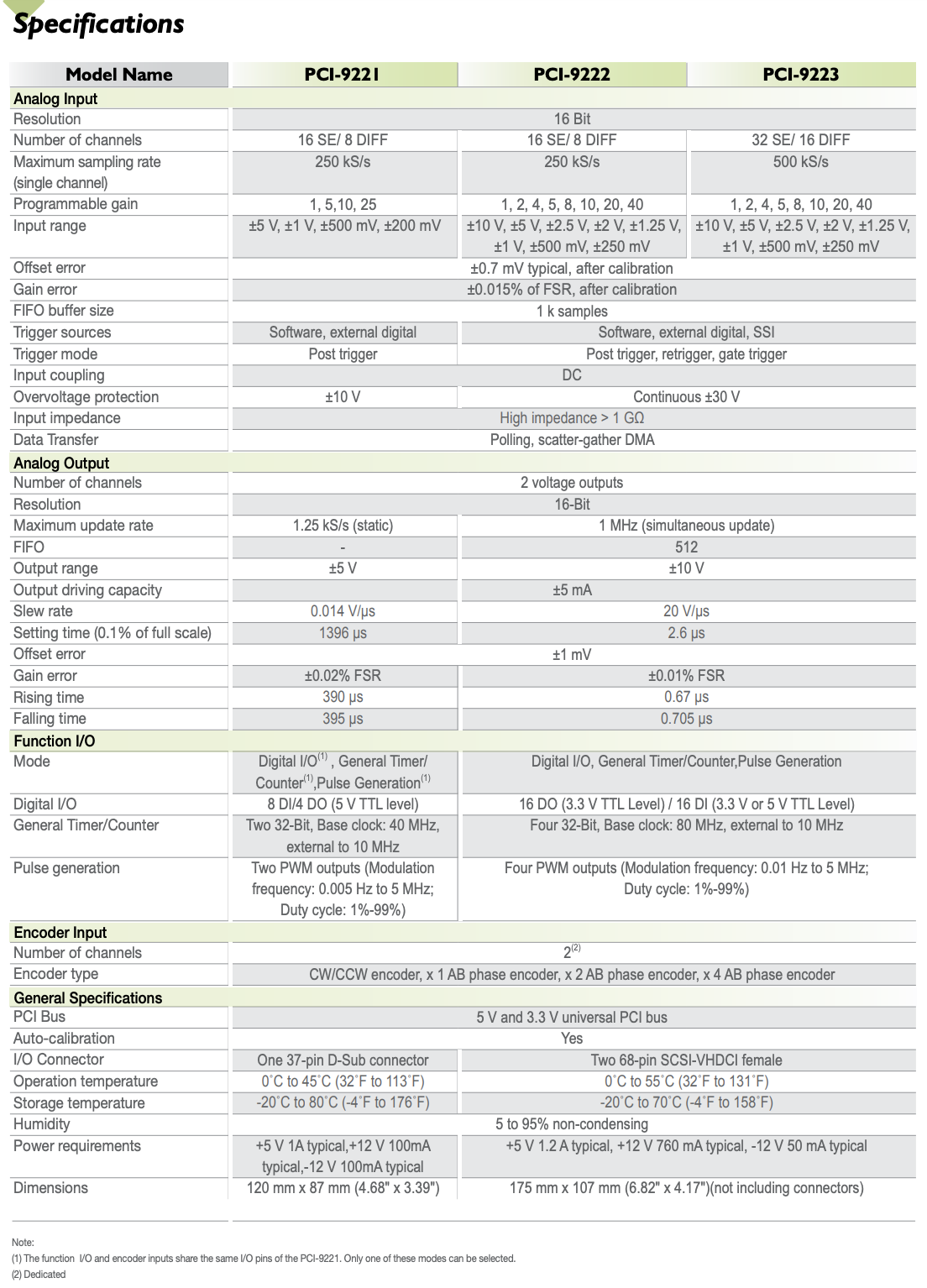

PCI-9221.9222.9223_Datasheet

Download (211.84KB)
