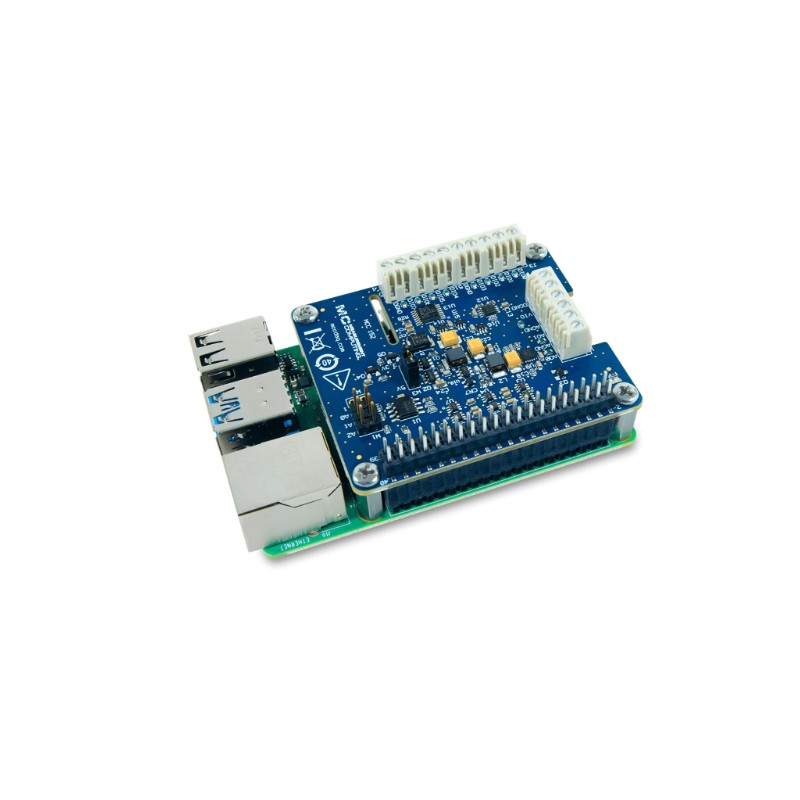

MCC 152: Voltage Output and DIO DAQ HAT for Raspberry Pi®

Overview:

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The MCC 152 Voltage Output and DIO HAT features two channels of analog voltage output and eight digital I/O for Raspberry Pi-based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

All DAQ HATs include C/C++® and Python™ examples and open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.

Raspberry Pi is not included with the MCC 152.

What's Included:

• One MCC 152 DAQ HAT
• 2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
• Jumpers (3)
• Standoffs (4)
• Screws (4)
• Nuts (4)
• Printed insert: Getting Started with MCC DAQ HATs
• MCC packaging assembly/foam, etc.
