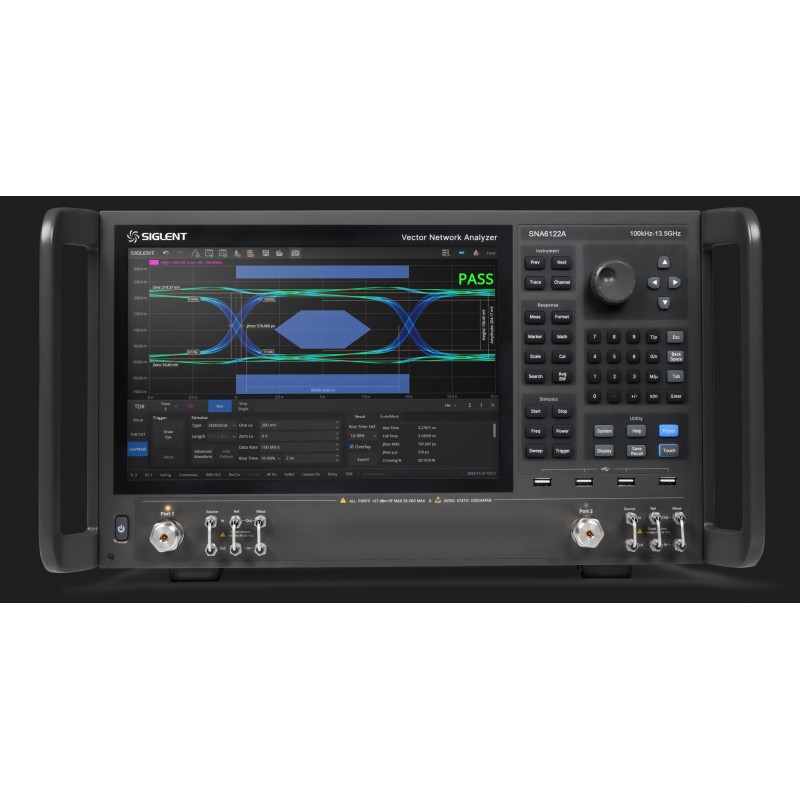

SIGLENT SNA6122A, 100 kHz to 13.5 GHz, 2 ports High Performance VNA with front panel jumper interface

SNA6122A
Siglent
  • Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ
  • Frequency resolution:1 Hz
  • Level resolution: 0.05 dB
  • Range of IFBW: 1 HZ~10 MHZ
  • Setting range of output level: 55 dBm~+10 dBm
  • Dynamic range: 135 dB
  • Internal Bias-Tee connections
  • Interface: LAN, USB Device, USB Host, (USB-GPIB)
  • Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket /Telnet /WebServer

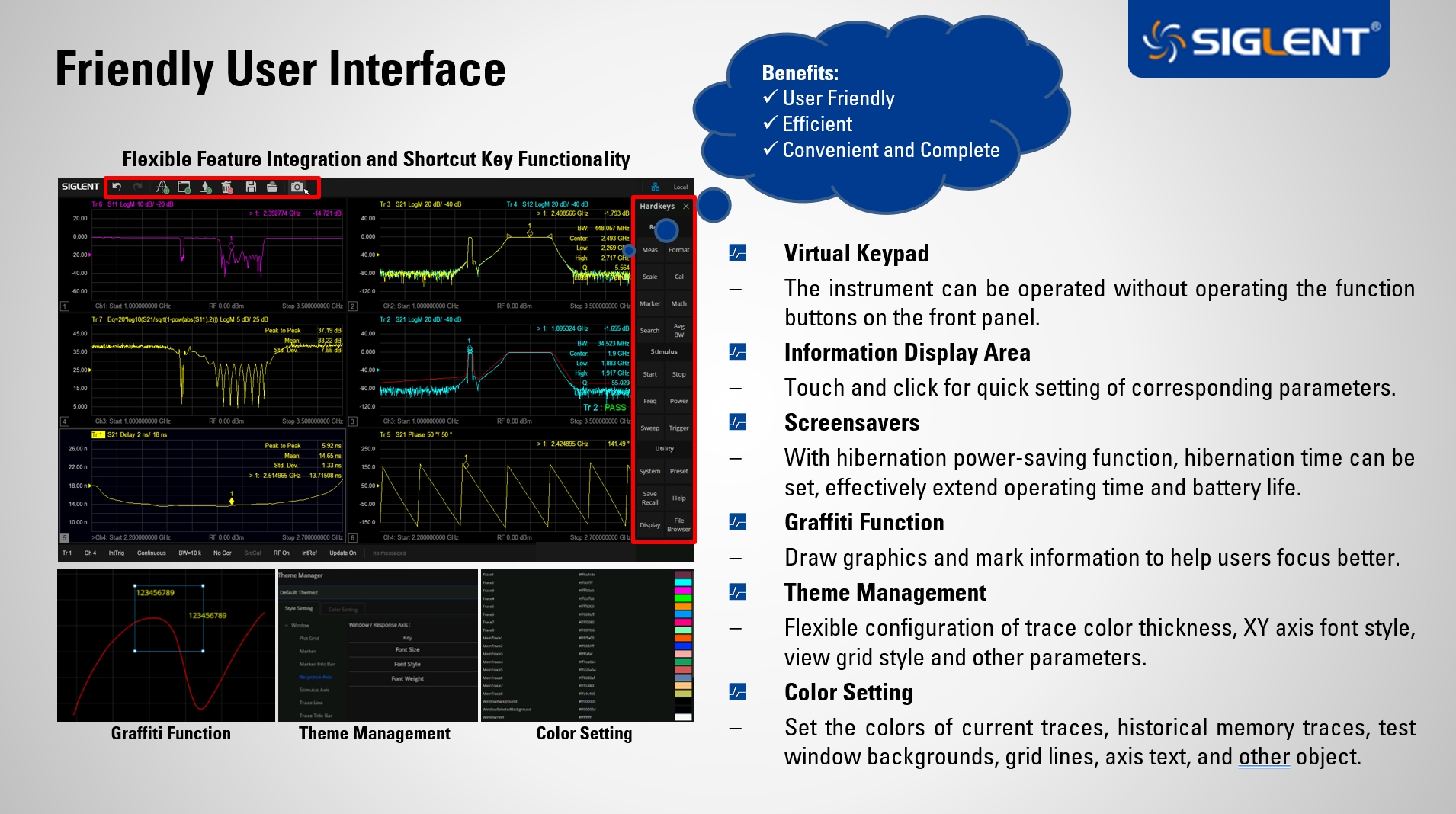

  • 12.1-inch touch screen
$74,602.00
Quantity
Buy now, get it in two-week

Description

Product Overview

The SIGLENT SNA6000A series of Vector Network Analyzers have a frequency range of 100 kHz to 13.5 GHz and 100 kHz to 26.5GHz, which support 2/4-port scattering parameter, differential-parameter, and time domain parameter measurements. TheSNA6000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter, They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNA shave five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA6000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.

Product Feature:

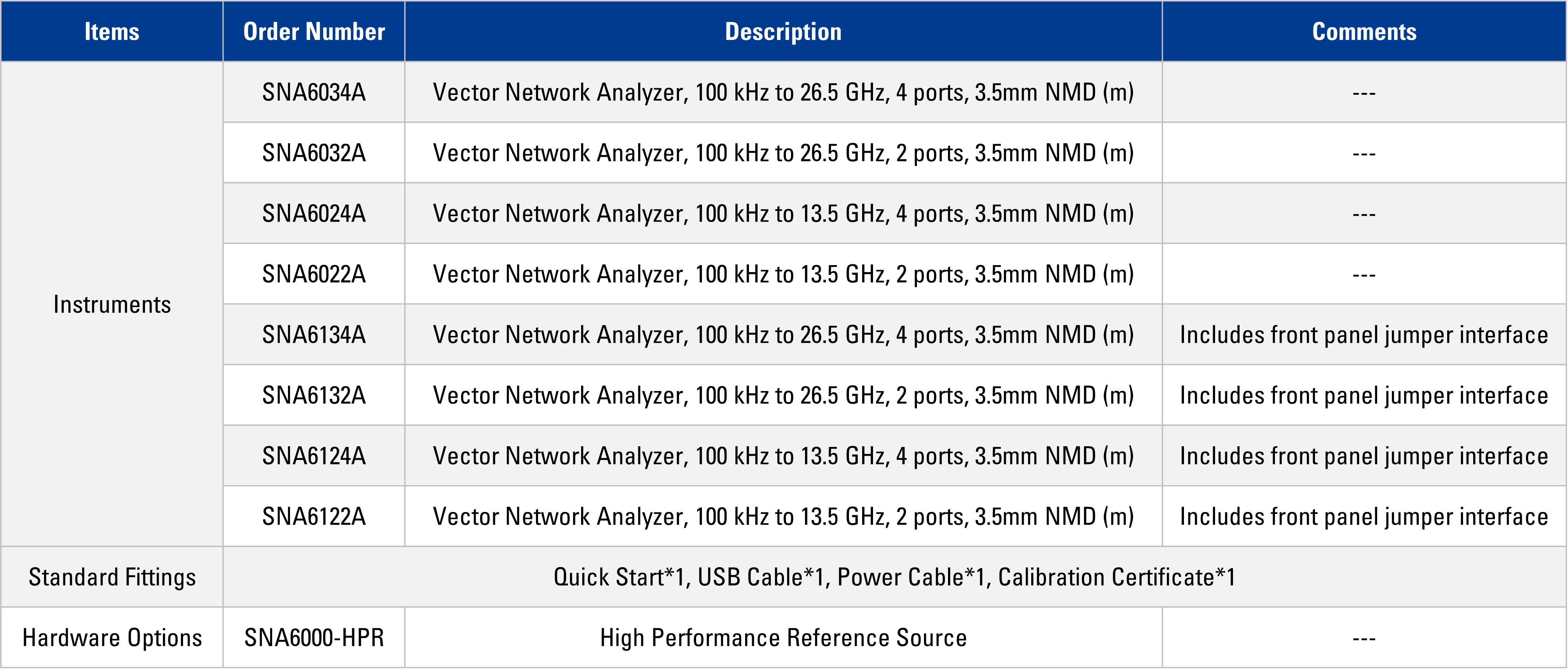

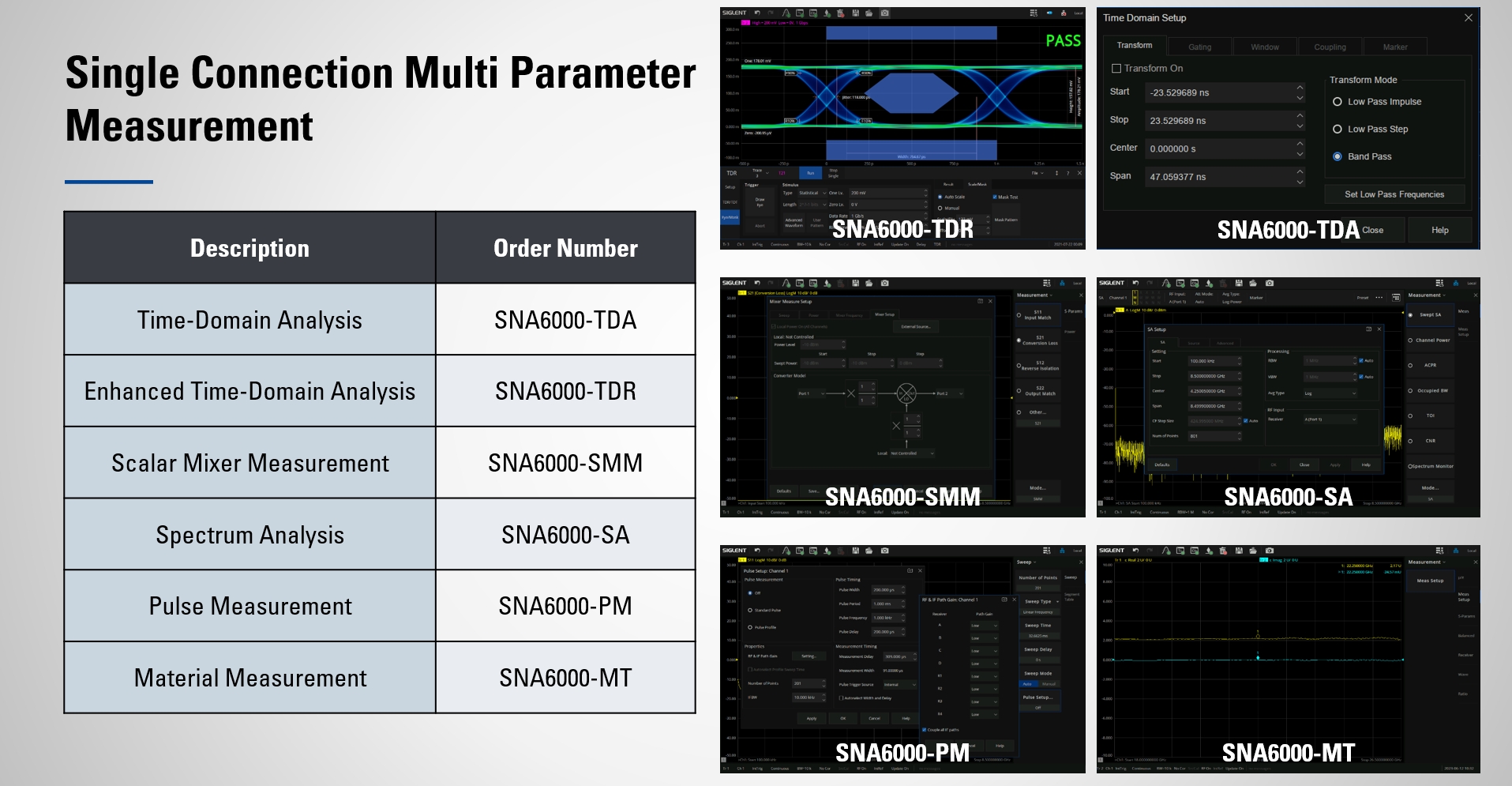

Product option:

Product Details
SNA6122A

Data sheet

Frequency Range
13.5GHz
Number of Port
2 Port
