ADLINK DAQ-2205, 64-CH, 16-Bit, 500kS/s AI Multi-Function DAQ PCI Cards
  • ADLINK DAQ-2205, 64-CH, 16-Bit, 500kS/s AI Multi-Function DAQ PCI Cards
  • ADLINK DAQ-2205, 64-CH, 16-Bit, 500kS/s AI Multi-Function DAQ PCI Cards

ADLINK DAQ-2205, 64-CH, 16-Bit, 500kS/s AI Multi-Function DAQ PCI Cards

DAQ-2205
ADLINK

Key Features:

  • On-board 1 K-sample A/D FIFO

    16-bit A/D resolution

    Up to 500 kS/s sampling rate

    Supports a 32-bit 3.3 V or 5 V PCI bus

    64-CH single-ended or 32-CH differential analog inputs

    Programmable gains:  x1, x2, x4, x8

    Bipolar or unipolar analog input ranges

Quantity

Description

Overview

ADLINIK DAQ-2204, DAQ-2205, and DAQ-2206 are high-density and high-performance multifunction DAQ cards. The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination The DAQ-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.

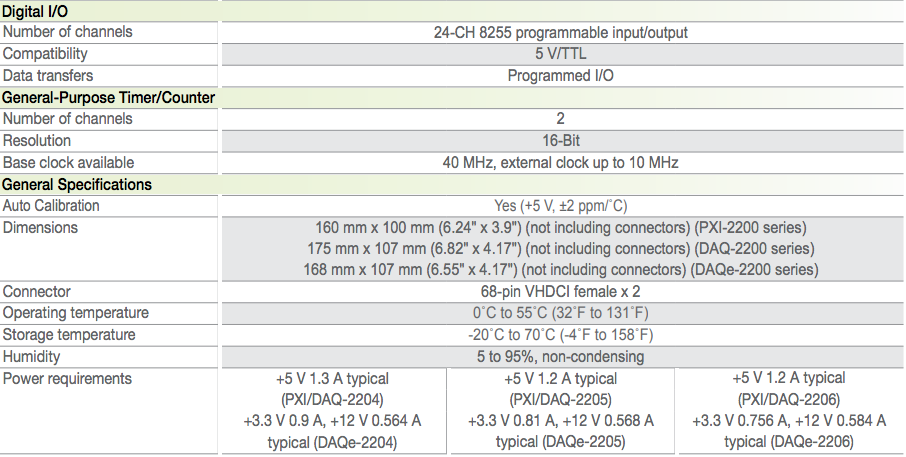

Specifications:

Screen Shot 2020-06-02 at 11-44-56 am.png

■ Supported Operating System • Windows 7/8 x64/x86, Linux

■ Driver and SDK • LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET

■ Software Utility • AD-Logger

Product Details
DAQ-2205
