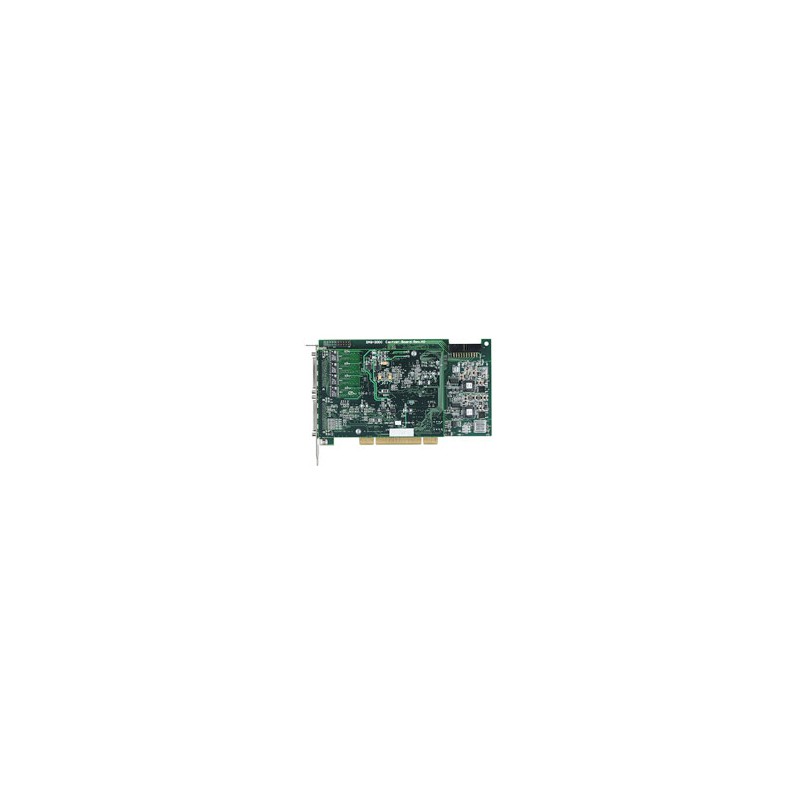

ADLINIK DAQ-2204, DAQ-2205, and DAQ-2206 are high-density and high-performance multifunction DAQ cards. The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination The DAQ-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.
■ Supported Operating System • Windows 7/8 x64/x86, Linux
■ Driver and SDK • LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET
■ Software Utility • AD-Logger
Reference: DAQ-2205
Brand: ADLINK
Key Features: On-board 1 K-sample A/D FIFO 16-bit A/D resolution Up to 500 kS/s sampling rate Supports a 32-bit 3.3 V or 5 V PCI bus 64-CH single-ended or 32-CH differential analog inputs Programmable gains: x1, x2, x4, x8 Bipolar or unipolar analog input ranges
Reference: PCI DAQ-2010
Brand: ADLINK
Key Features: Supports a 32-bit 3.3 V or 5 V PCI bus 4-CH differential analog inputs 2 MS/s simultaneous-sampling rate 2-CH 1MS/s AO 14-bit A/D resolution Up to 8 k-sample A/D FIFO Bipolar or unipolar analog input ranges Programmable gains of x1, x2, x4, x8
Reference: PCI-7230/33/34
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 16-CH isolated digital inputs & 16-CH isolated digital outputs (PCI-7230) 32-CH isolated digital inputs (PCI-7233) 32-CH isolated digital outputs (PCI-7234) 5000 VRMS optical isolation (PCI-7230 & PCI-7233) Sink current up to 500 mA on each isolated output
Reference: DAQ-2214
Brand: ADLINK
Key Features: 16-bit A/D and sampling rate up to 250kS/s16-CH single-ended or 8-CH differential inputs512-configuration channel-gain queueAnalog and digital trigger2-CH 12-bit 1MS/s analog outputs with waveform generation functionality (DAQ-2214)Bus-mastering DMA with scatter-gather technologyFull auto-calibrationMultiple cards synchronization
Reference: PCI-9111DG
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 12-bit A/D resolution (PCI-9111DG) 16-bit A/D resolution (PCI-9111HR) 16-CH single-ended analog inputs Up to 100 kS/s sampling rate On-board 1 k-sample A/D FIFO Programmable gains of x1, x2, x4, x8, x16 Bipolar analog input ranges
Reference: USB-2405
Brand: ADLINK
Key Features 24-Bit Sigma-Delta ADC and DAC 2-CH simultaneous sampling analog input, and 2-CH simultaneous updated analog output Supports IEPE output on each analog input, software-configurable 216 kS/s maximum sampling rate with software programmable rate Programmable input range: ±40 V, ±10 V, ±3.16 V, ±1 V, ±0.316 V Programmable output range: ±10 V, ±1...
Reference: PCI-9111HR
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 12-bit A/D resolution (PCI-9111DG) 16-bit A/D resolution (PCI-9111HR) 16-CH single-ended analog inputs Up to 100 kS/s sampling rate On-board 1 k-sample A/D FIFO Programmable gains of x1, x2, x4, x8, x16 Bipolar analog input ranges
Reference: PCI-6208/6216 Series
Brand: ADLINK
Key Features 4-CH TTL digital inputs and 4-CH TTL digital outputs Bipolar analog output range 8-CH current outputs (PCI-6208A) 16-CH voltage outputs (PCI-6216V-GL) 8-CH voltage outputs (PCI-6208V-GL and PCI-6208A) Effective 15-bit resolution current transducers (PCI-6208A) 16-bit D/A resolution (PCI-6208V-GL and PCI-6216V-GL)
Reference: PCI DAQ-2005
Brand: ADLINK
Key Features: Supports a 32-bit 3.3 V or 5 V PCI bus 4-CH differential analog inputs Up to 500kS/s simultaneous-sampling rate 16-bit A/D resolution (DAQ-2005,DAQ-2006) Bipolar or unipolar analog input ranges Programmable gains of x1, x2, x4, x8
Reference: PCI-6308 Series
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus Isolated 8-CH 12-bit voltage output 2500 VRMS optical isolation Jumper selectable bipolar and unipolar output ranges 4-CH isolated DI and 4-CH isolated DO Current output version available on PCI-6308A
Reference: PCI-8554
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus On-board four 82C54 programmable timer/counter chips 10-CH independent 16-bit down counters 1-CH 32-bit cascaded timer Four programmable clock sources for each timer/counter Programmable de-bounce filter for external clock & external interrupt inputs 8-CH TTL DI & 8-CH TTL DO
Reference: PCI-7296/7248/7224
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 24/48/96-CH digital TTL/DTL inputs/outputs Emulates 4/2/1 industry standard 8255 PPI (mode 0) Support Windows 7/8 X64/X86 and Windows 2008 R2 Output port status read back On board 8254 timer/counter chip Programmable interrupt source 12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
Reference: PCI-7432/7433/7434
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 32-CH isolated digital inputs & 32-CH isolated digital outputs, PCI-7432 & PCI-7432HIR(EOL) 64-CH isolated digital inputs, PCI-7433 & PCI-7433HIR(EOL) 64-CH isolated digital outputs (PCI-7434) 2500 VRMS optical isolation Sink current up to 500 mA on each isolated output
Reference: DAQ-2000 Series
Brand: ADLINK
Key Features Supports a 32-bit 3.3 V or 5 V PCI bus 4-CH differential analog inputs Up to 2 MS/s simultaneous-sampling rate (DAQ-2010) 14-bit A/D resolution (DAQ-2010) 16-bit A/D resolution (DAQ-2005,DAQ-2006) Up to 8 k-sample A/D FIFO (DAQ-2010) Bipolar or unipolar analog input ranges Programmable gains of x1, x2, x4, x8
Reference: DAQ-2200 Series
Brand: ADLINK
Key Features On-board 1 K-sample A/D FIFO 16-bit A/D resolution (DAQ-2205 & DAQ-2206) 12-bit A/D resolution (DAQ-2204) Up to 3 MS/s sampling rate (DAQ-2204) Supports a 32-bit 3.3 V or 5 V PCI bus 64-CH single-ended or 32-CH differential analog inputs Programmable gains: x1, x2, x4, x5, x8, x10, x20, x40, x50, x200 (DAQ-2204), and x1, x2, x4, x8...
Reference: cPCI-7432/7433/7434
Brand: ADLINK
Key Features Two external interrupt sources for cPCI-7432/7432RP/7433 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1) 32-CH isolated digital inputs & 32-CH isolated digital outputs for cPCI-7432 64-CH isolated digital inputs for cPCI-7433 64-CH isolated digital outputs for cPCI-7434/7434P 5000 VRMS isolation voltage Sink current up to...
