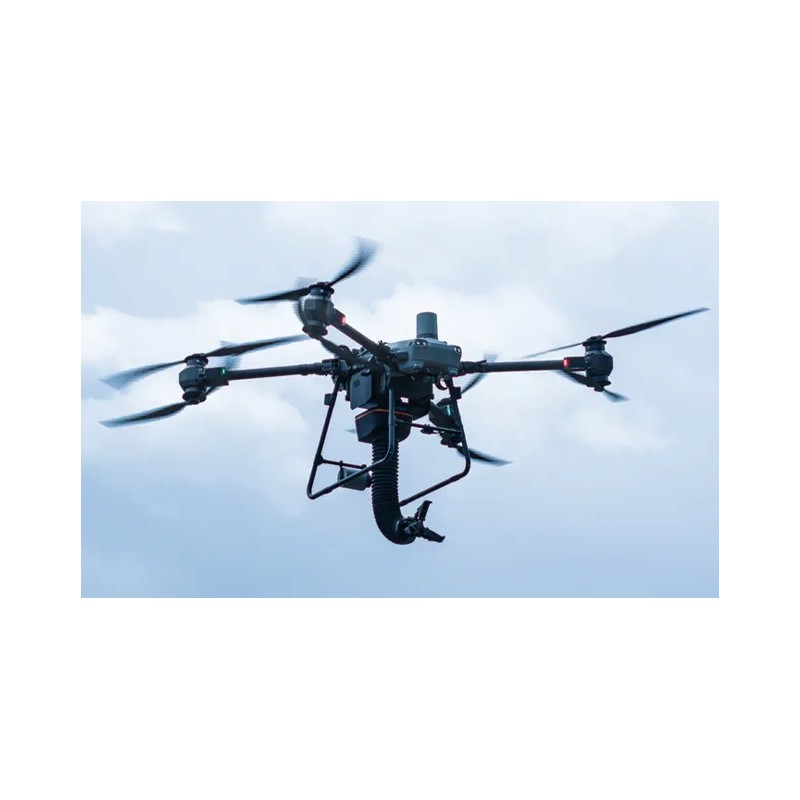

Orion AP30-N1 Robotic drone arm

Based on the patented Pliabot® technology, Wisson Robotics proudly presents the Orion AP30 Pliabot® aerial manipulator system in collaboration with DJI's first delivery drone FC30. Using innovative bionic muscles and precise pneumatic drive, the Orion AP30-N1 combines high payload, low self-weight, and high extension ratio, enabling hovering operations both near ground and in air. Equipped with the patented one-step swappable tooling system, the Orion AP30-N1 is capable of rich operations for multiple industrial applications. It integrates multi-angle agility and precision, fast-and-easy installation, ultra-low power consumption, and long-term all-weather performance. Verified operation scenarios include: high-payload aerial grasping and object transferring, multi-angle precision spraying, vertical/horizontal indentation inspection, precision sampling & delivery of gas, liquid, and solid substances, etc. The Orion AP30-N1 offers a variety of end-effector tool expansions, empowering a wide range of industrial aerial operations in multiple scenarios such as energy maintenance, emergency response, infrastructure inspection, smart agriculture, and aerial logistics.

Features

• 360-Degree Precision Aerial Operation

  • The AP30, powered by bionic muscles and pneumatic drive, could extend/contract and flex, achieving 360-degree dexterity for precision aerial operations.

• Lightweight with High Payload

  • With innovations in lightweight materials and actuation control, the AP30 could achieve nearly 2:1 load-to-weight ratio with up to 15kg vertical lifting payload for various operational needs.

• Low Power Consumption with 0-Watt Holding

  • The AP30's patented pneumatic drive technology enables class-leading low power consumption, with 60W average operating power and virtually 0W when holding its position.

• Built for Extremes

  • With water & dust resistance, down to -40 Degrees Celsius temperature rating, radiation & corrosion enhancements, AP30 provides long-term reliable outdoor operations in harsh environments.
• Expandable Multi-functional Modules

  • AP30 provides rich functional module options, easy to expand, and supports customization, meeting the complex aerial operation needs of various industries.
• Ready-to-Use

  • Snap-on design for swift deployment, one-click initiation for instant use, saving preparation time, and boosting efficiency.
