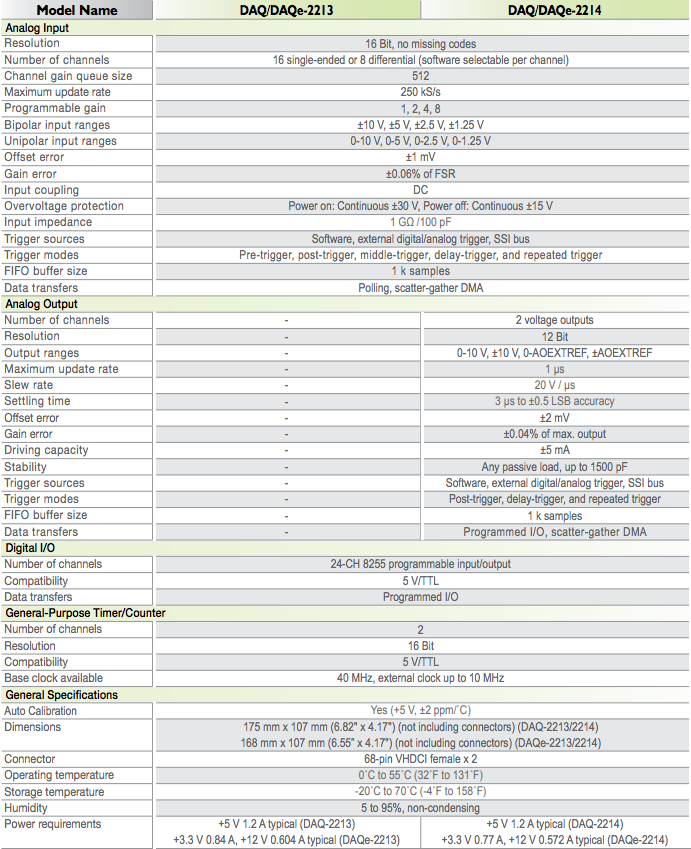

16-bit A/D and sampling rate up to 250kS/s
16-CH single-ended or 8-CH differential inputs
512-configuration channel-gain queue
Analog and digital trigger
Bus-mastering DMA with scatter-gather technology
Full auto calibration
Multiple cards synchronization
ADLINIK DAQ-2204, DAQ-2205, and DAQ-2206 are high-density and high-performance multifunction DAQ cards. The devices can sample up to 64 AI channels with different gain settings and scan sequences. It makes them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination The DAQ-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.
■ Supported Operating System • Windows 7/8 x64/x86, Linux
■ Driver and SDK • LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET
■ Software Utility • AD-Logger
Reference: PCI-9111HR
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 12-bit A/D resolution (PCI-9111DG) 16-bit A/D resolution (PCI-9111HR) 16-CH single-ended analog inputs Up to 100 kS/s sampling rate On-board 1 k-sample A/D FIFO Programmable gains of x1, x2, x4, x8, x16 Bipolar analog input ranges
Reference: PCI-9223
Brand: ADLINK
Key Features Programmable gains for analog input: ±10V, ±5V, ±2.5V, ±2V, ±1V, ±500mV, ±250mV 2-CH 16-bit simultaneous analog outputs, supporting up to 1 MS/s update rate Programmable function I/O, supporting TTL DIO, 2MHz high-speed DIO, timer/counter, and PWM outputs 2-CH 4 MHz encoder inputs, supporting AB phase, and CW/CCW Dedicated DMA channels for...
Reference: DAQ-2208
Brand: ADLINK
Key Features: 12-bit A/D and sampling rate up to 3MS/s96-CH single-ended or 48-CH differential inputs1024-configuration channel-gain queueAnalog and digital triggerBus-mastering DMA with scatter-gather technologyFull auto-calibrationMultiple cards synchronization
Reference: PCI-9112
Brand: ADLINK
Key Features Supports a 3.3 V or 5 V PCI bus 12-bit A/D and sampling rate up to 110kS/s 16-CH single-ended or 8-CH differential inputs On-board A/D FIFO Bipolar or unipolar analog input ranges 16-CH TTL DI and 16-CH TTL DO 2-CH 12-bit multiplying analog outputs
Reference: PCI-9222
Brand: ADLINK
Key Features Programmable gains for analog input: ±10V, ±5V, ±2.5V, ±2V, ±1V, ±500mV, ±250mV 2-CH 16-bit simultaneous analog outputs, supporting up to 1 MS/s update rate Programmable function I/O, supporting TTL DIO, 2MHz high-speed DIO, timer/counter, and PWM outputs 2-CH 4 MHz encoder inputs, supporting AB phase, and CW/CCW Dedicated DMA channels for...
Reference: cPCI-7432/7433/7434
Brand: ADLINK
Key Features Two external interrupt sources for cPCI-7432/7432RP/7433 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1) 32-CH isolated digital inputs & 32-CH isolated digital outputs for cPCI-7432 64-CH isolated digital inputs for cPCI-7433 64-CH isolated digital outputs for cPCI-7434/7434P 5000 VRMS isolation voltage Sink current up to...
Reference: PCI-7296/7248/7224
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 24/48/96-CH digital TTL/DTL inputs/outputs Emulates 4/2/1 industry standard 8255 PPI (mode 0) Support Windows 7/8 X64/X86 and Windows 2008 R2 Output port status read back On board 8254 timer/counter chip Programmable interrupt source 12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
Reference: DAQ-2205
Brand: ADLINK
Key Features: On-board 1 K-sample A/D FIFO 16-bit A/D resolution Up to 500 kS/s sampling rate Supports a 32-bit 3.3 V or 5 V PCI bus 64-CH single-ended or 32-CH differential analog inputs Programmable gains: x1, x2, x4, x8 Bipolar or unipolar analog input ranges
Reference: PCI-9114HDG
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 16-bit A/D resolution Up to 100 kS/s sampling rate (PCI-9114DG) Up to 250 kS/s sampling rate (PCI-9114A-DG and PCI-9114A-HG) 32-CH single-ended or 16-CH differential analog inputs Bipolar analog input ranges On-board 1 k-sample A/D FIFO Programmable gains: x1, x2, x4, x8 (PCI-9114DG and PCI-9114A-DG), and x1,...
Reference: PCI-9221
Brand: ADLINK
Key Features Not recommended to be used in the system with greater than 2GB memory Supports a 32-bit 3.3 V or 5 V PCI bus 16-CH single-ended or 8-CH differential analog input Up to 250 kS/s sampling rate Programmable input range: +/-5 V, +/-1 V, +/-0.5 V, +/-0.2 V 2-CH 16-bit static analog output Programmable function I/O Auto-calibration feature
Reference: PCI DAQ-2010
Brand: ADLINK
Key Features: Supports a 32-bit 3.3 V or 5 V PCI bus 4-CH differential analog inputs 2 MS/s simultaneous-sampling rate 2-CH 1MS/s AO 14-bit A/D resolution Up to 8 k-sample A/D FIFO Bipolar or unipolar analog input ranges Programmable gains of x1, x2, x4, x8
Reference: PCI-8554
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus On-board four 82C54 programmable timer/counter chips 10-CH independent 16-bit down counters 1-CH 32-bit cascaded timer Four programmable clock sources for each timer/counter Programmable de-bounce filter for external clock & external interrupt inputs 8-CH TTL DI & 8-CH TTL DO
Reference: DAQ-2500 Series
Brand: ADLINK
Key Features Supports a 32-bit 3.3 V or 5 V PCI bus 12-bit multiplying D/A resolution Up to 1 MS/s simultaneous-update rate 4-CH multiplying analog outputs (DAQ-2501) 8-CH multiplying analog outputs (DAQ-2502) Hardware-based arbitrary waveform generation On-board 8 k-sample D/A FIFO (DAQ-2501) On-board 16 k-sample D/A FIFO (DAQ-2502)
Reference: PCI-7230/33/34
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 16-CH isolated digital inputs & 16-CH isolated digital outputs (PCI-7230) 32-CH isolated digital inputs (PCI-7233) 32-CH isolated digital outputs (PCI-7234) 5000 VRMS optical isolation (PCI-7230 & PCI-7233) Sink current up to 500 mA on each isolated output
Reference: PCI-9114DG
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 16-bit A/D resolution Up to 100 kS/s sampling rate (PCI-9114DG) Up to 250 kS/s sampling rate (PCI-9114A-DG and PCI-9114A-HG) 32-CH single-ended or 16-CH differential analog inputs Bipolar analog input ranges On-board 1 k-sample A/D FIFO Programmable gains: x1, x2, x4, x8 (PCI-9114DG and PCI-9114A-DG), and x1,...
Reference: PCI-9114ADG
Brand: ADLINK
Key Features Supports a 32-bit 5 V PCI bus 16-bit A/D resolution Up to 100 kS/s sampling rate (PCI-9114DG) Up to 250 kS/s sampling rate (PCI-9114A-DG and PCI-9114A-HG) 32-CH single-ended or 16-CH differential analog inputs Bipolar analog input ranges On-board 1 k-sample A/D FIFO Programmable gains: x1, x2, x4, x8 (PCI-9114DG and PCI-9114A-DG), and x1,...
16-bit A/D and sampling rate up to 250kS/s
16-CH single-ended or 8-CH differential inputs
512-configuration channel-gain queue
Analog and digital trigger
Bus-mastering DMA with scatter-gather technology
Full auto calibration
Multiple cards synchronization
