Introduction:

Measurement Computing Corporation (MCC) and Data Translation (DT) DAQ products are now part of the Digilent family of test and measurement solutions. MCC and DT are leading suppliers of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-1208FS-Plus/LS/1408FS-Plus Series consists of low-cost analog and digital I/O devices. All devices in this series offer four differential (DIFF) or eight single-ended (SE) analog inputs, two analog outputs, 16 digital I/O and one event counter. The USB-1208LS offers sample rates up to 1.2 kS/s with 12-bit resolution, USB-1208FS-Plus with 50 kS/s sample rate and 12-bit resolution, and USB-1408FS-Plus offers sample rates of 48 kS/s with 14-bit resolution. All devices in this series also support multiple software-selectable voltage input ranges, making them ideally suited for a wide assortment of measurements.

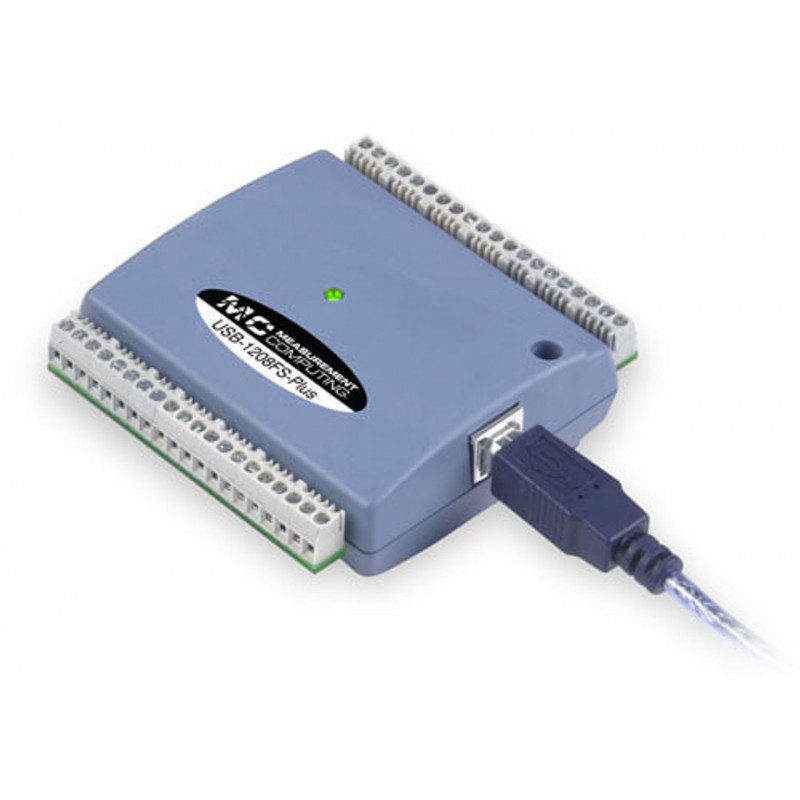

USB-1208FS-PLUS features a 50 kS/s sample rate, eight analog inputs, two 12-bit analog outputs, 16 digital I/O connections, and one 32-bit external event counter.

USB-1208FS-PLS-OEM: DAQ device with 8 SE/4 DIFF analog inputs, 12-bit resolution, 50 kS/s sample rate, 2 analog outputs, 16 digital I/O, and 1 counter input. OEM version removes enclosure and screw terminals and adds headers.

USB-1408FS-PLUS features a 48 kS/s sample rate, eight analog inputs, two 12-bit analog outputs, 16 digital I/O connections, and one 32-bit external event counter.

USB-1408FS-PLS-OEM: DAQ device with 8 SE/4 DIFF analog inputs, 14-bit resolution, 48 kS/s sample rate, 2 analog outputs, 16 digital I/O, and 1 counter input. OEM version removes enclosure and screw terminals and adds headers.

What's Included:

• USB-1208LS, USB-1208FS-Plus, or USB-1408FS-Plus
• USB cable
• Printed insert: DAQami Quick Start
• MCC packaging assembly/foam, etc.
