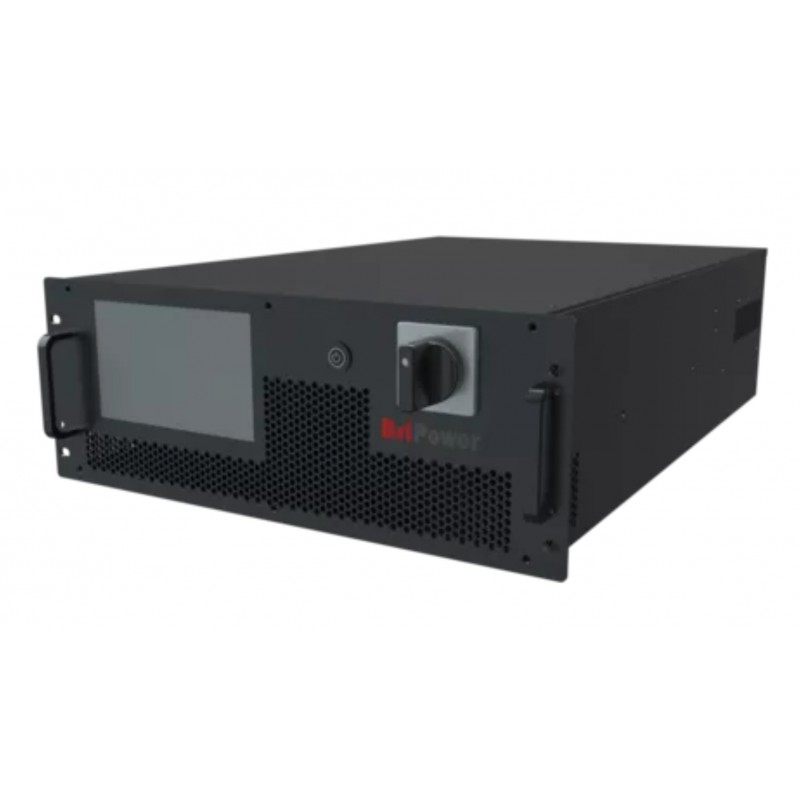

Bripower ZGX Series Regenerative AC/DC Source and Load
  • Bripower ZGX Series Regenerative AC/DC Source and Load

Bripower ZGX Series Regenerative AC/DC Source and Load

AC/DC Source and Load
BriPower

· Compact modular design, 15KVA in 4U

· Bi-directional design
· Output: AC, DC, AC+DC
· Single unit: maximum 15KW, 450V L-N, 30A/ph, DC-1KHz output
· Single phase, 3-phase, split phase, and multi-channel output

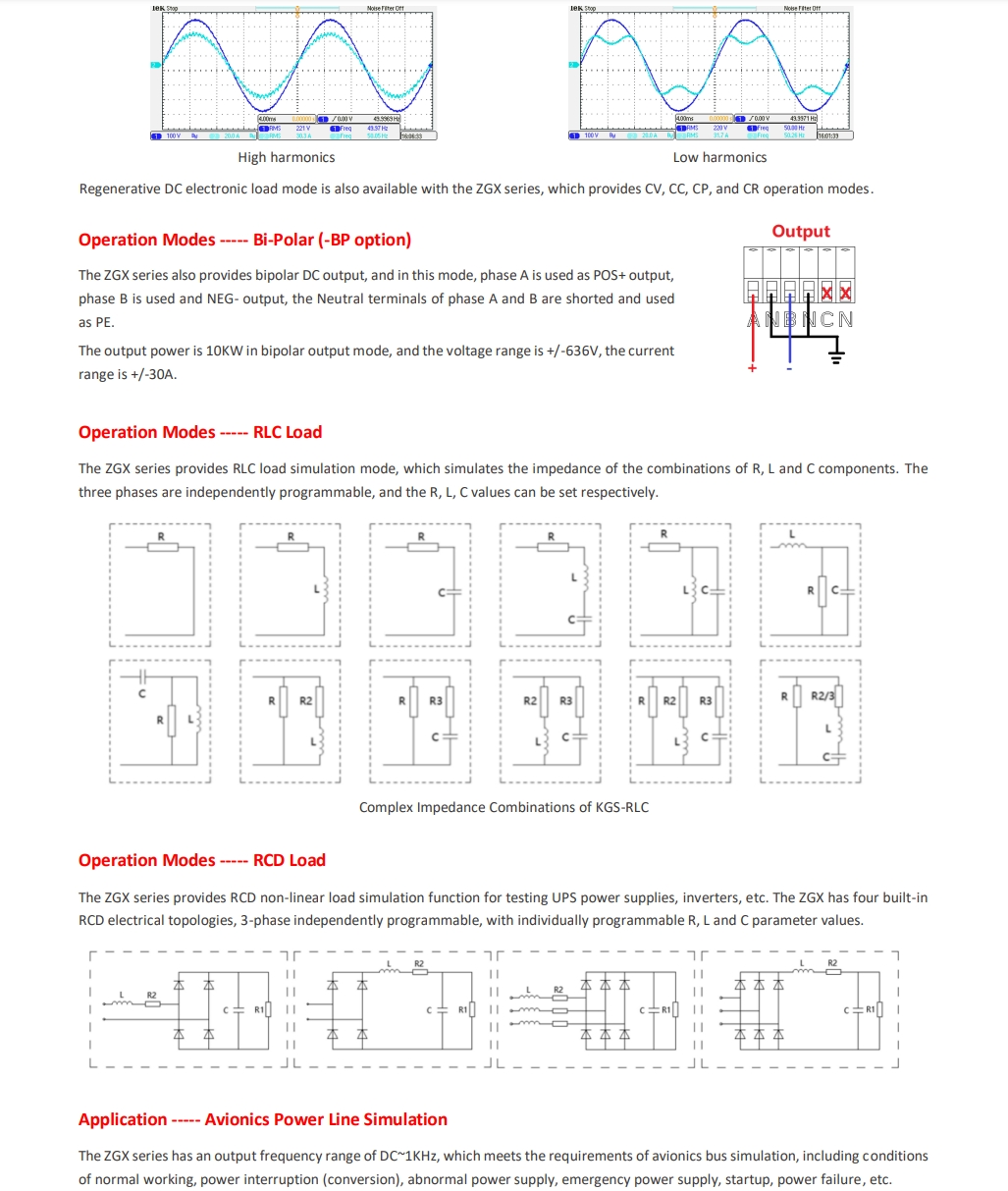

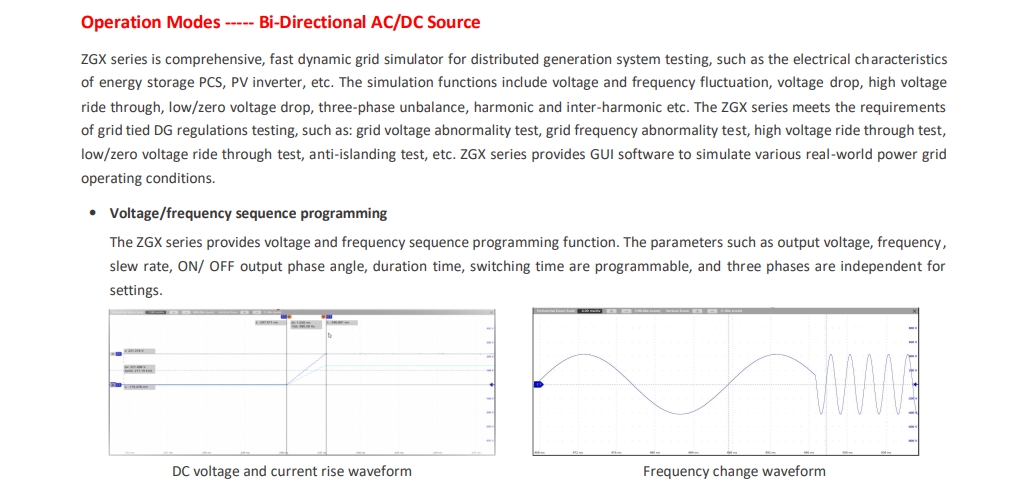

· Various modes: Regenerative AC/DC source, regenerative AC/DC load, BiPolar DC source
· Regenerative RLC load in full frequency range
· True current source in CC mode

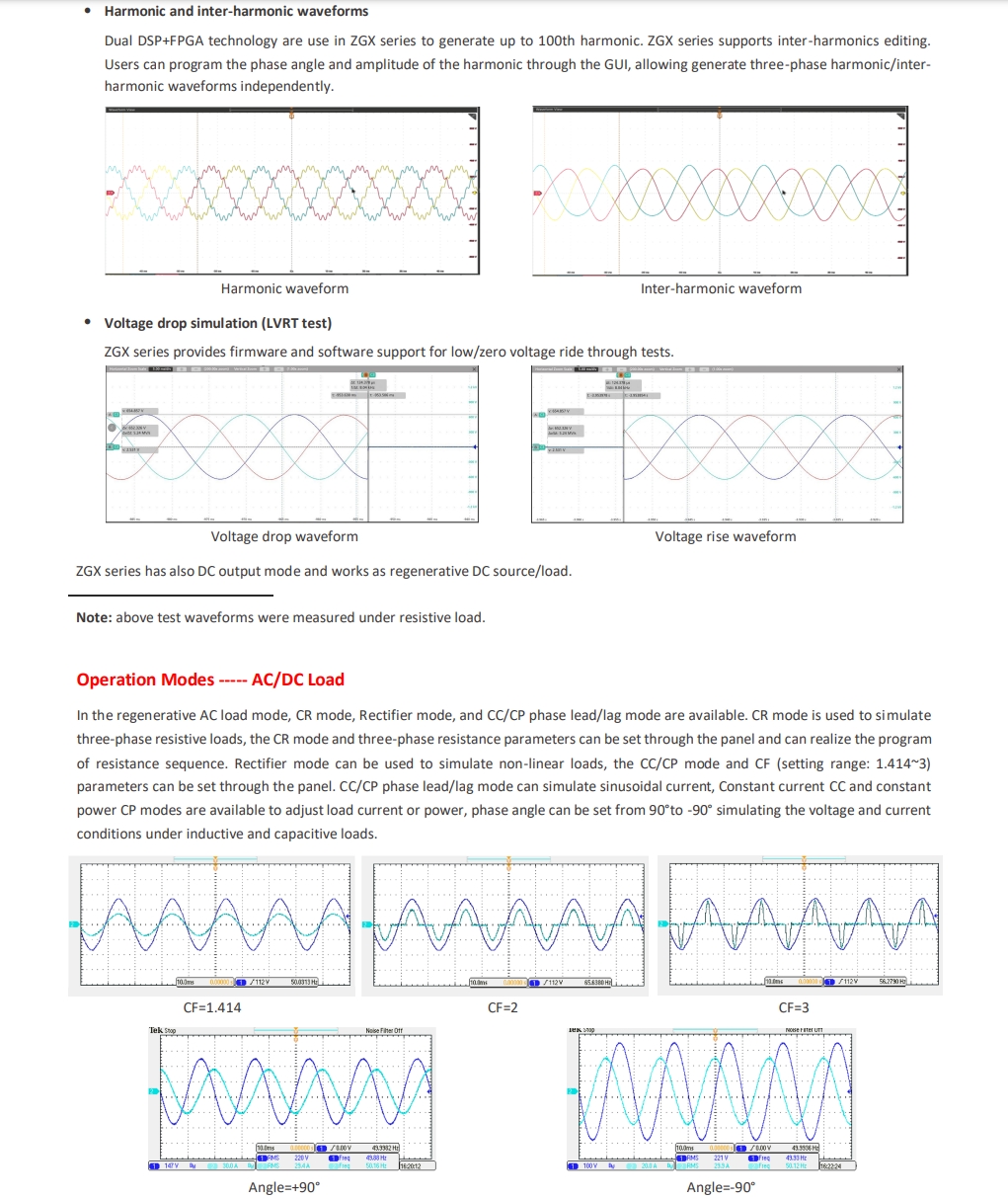

· Up to 100th harmonics waveform generation, inter-harmonic generation
· Error locating function
· 24 months warranty
Quantity

Description

Overview

The ZGX series is a compact modular design power supply with SiC PWM technology, providing full functions of grid simulator, regenerative AC/DC load, bipolar DC source, and RLC/RCD load. The 15KVA bidirectional power supply is designed in a 4U chassis, and can be upgraded to 960KVA system by master/slave paralleling. The maximum output of each unit is AC 450V L-N, 30A/ph, DC~1KHz or DC 636V, 90A.

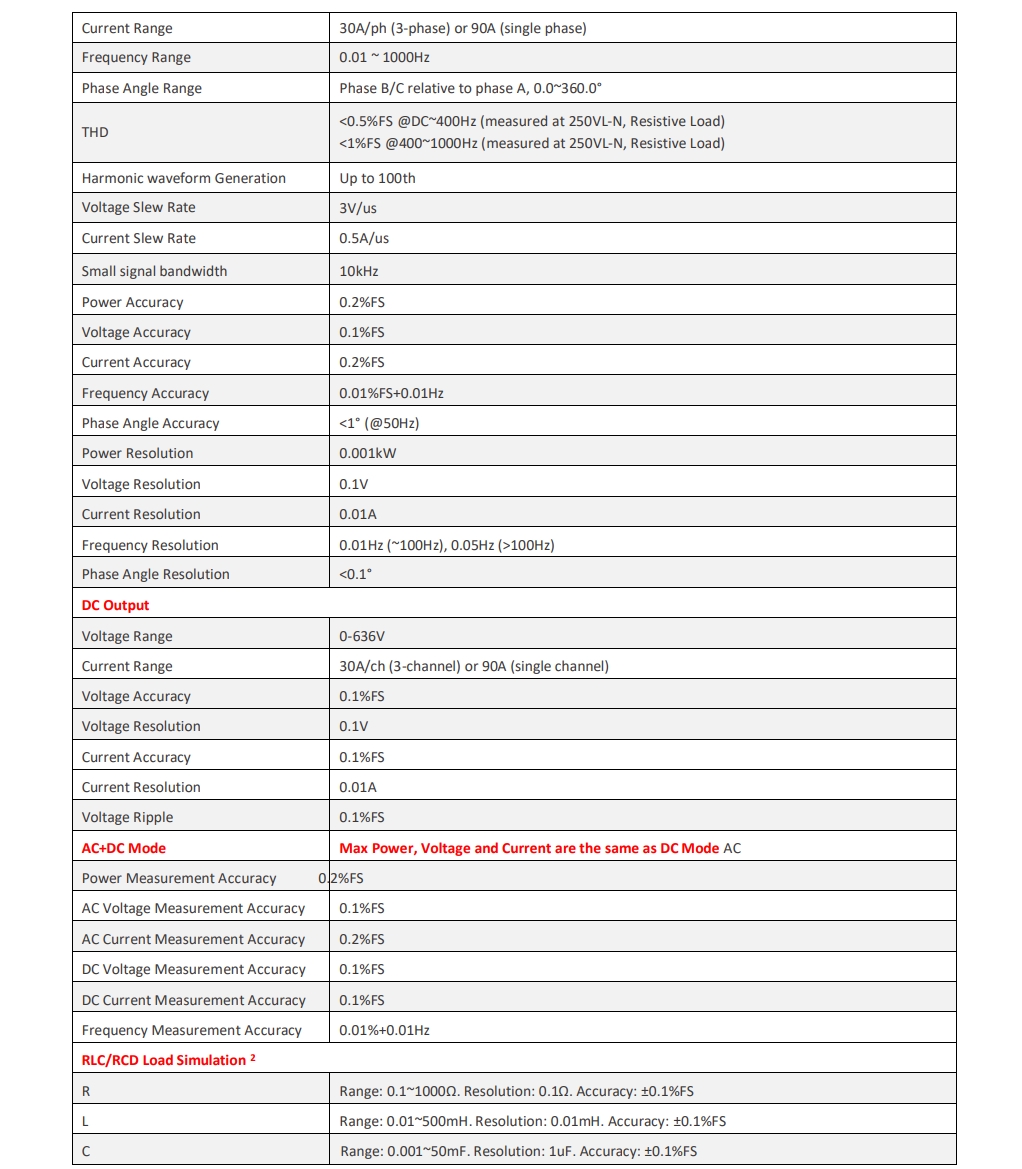

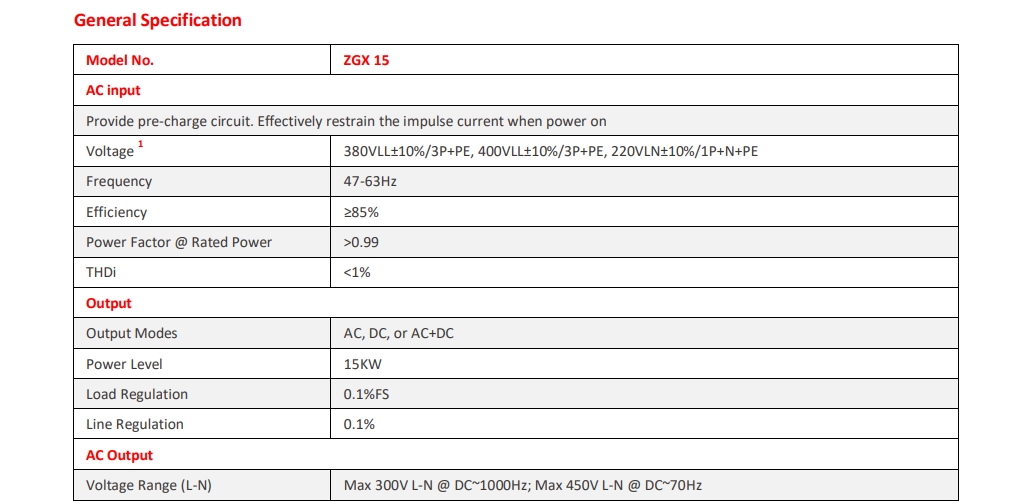

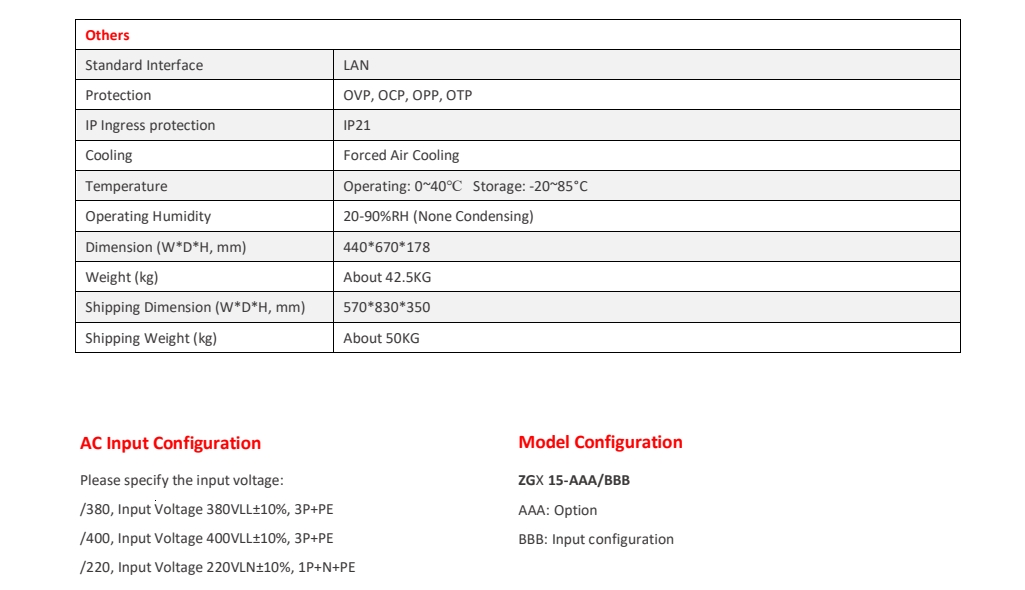

Specification

Operation Mode

Product Details
AC/DC Source and Load
