BriPower ESD Series Programmable DC Power Supply
  • BriPower ESD Series Programmable DC Power Supply

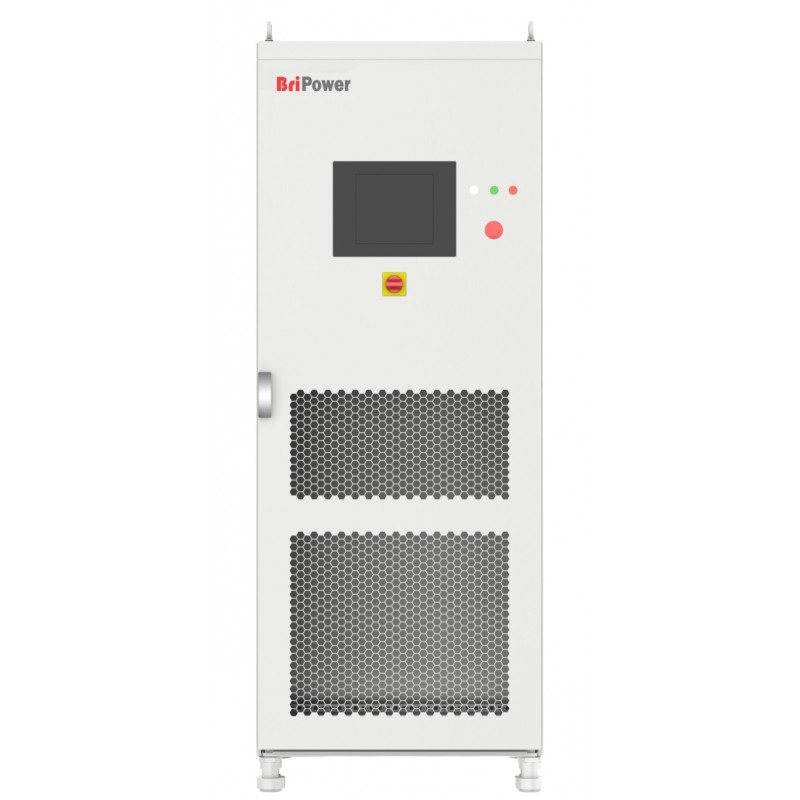

BriPower ESD Series Programmable DC Power Supply

Programmable DC Power Supply
BriPower

· Single system up to 500kW, up to 4MW and above

· Output voltage up to 2000V(std), higher voltage can be customized

· Applications: battery simulation, battery test (-BSS option), PV simulation (-PV option)

· Program accuracy up to 0.1%

· Seamless transition between source and sink modes (-R option)

· Current rise time (10% -90%) <1ms (-BSS option)

· CC/CV/CP/CR mode available

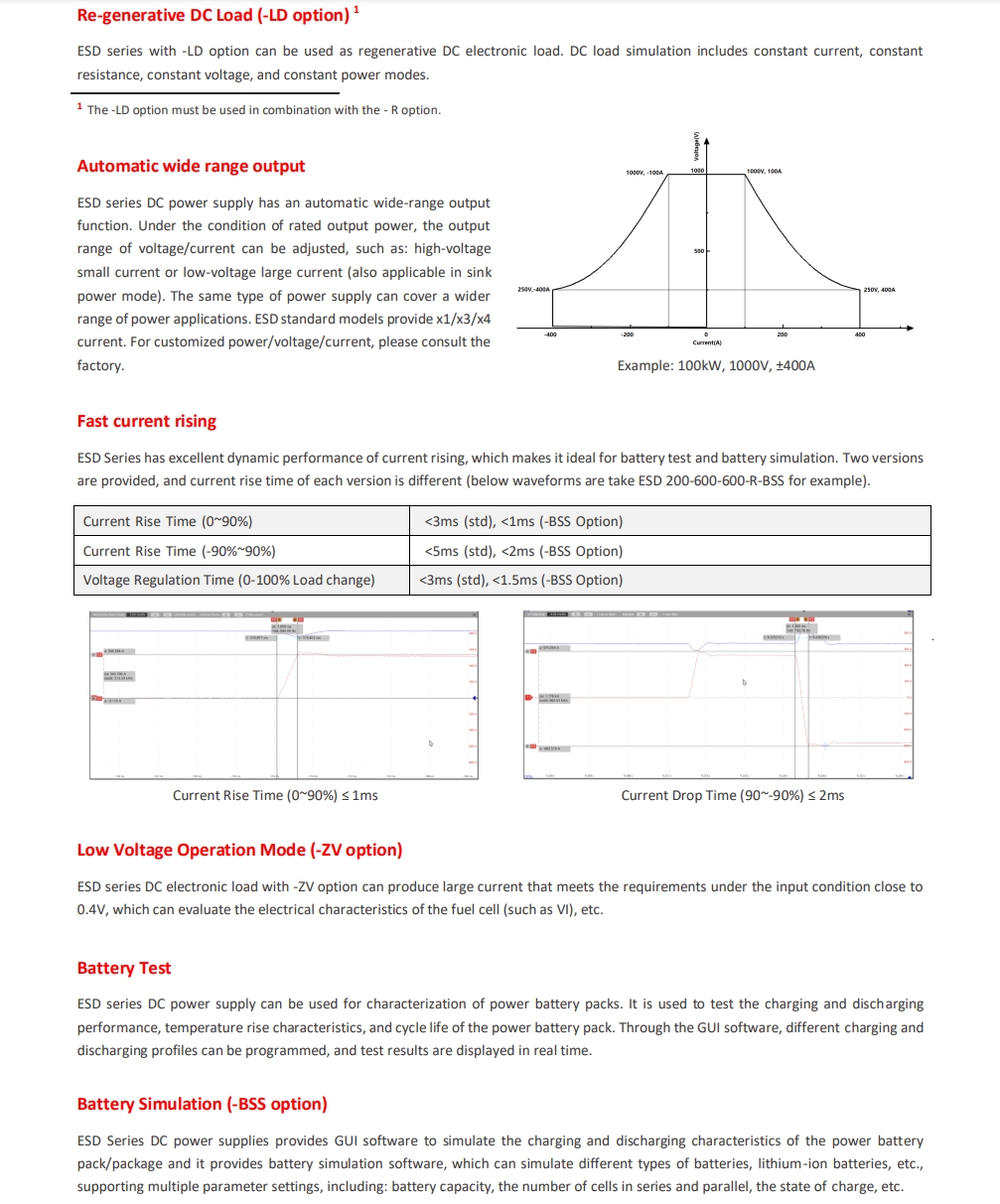

· Regenerative DC load function (-LD option)

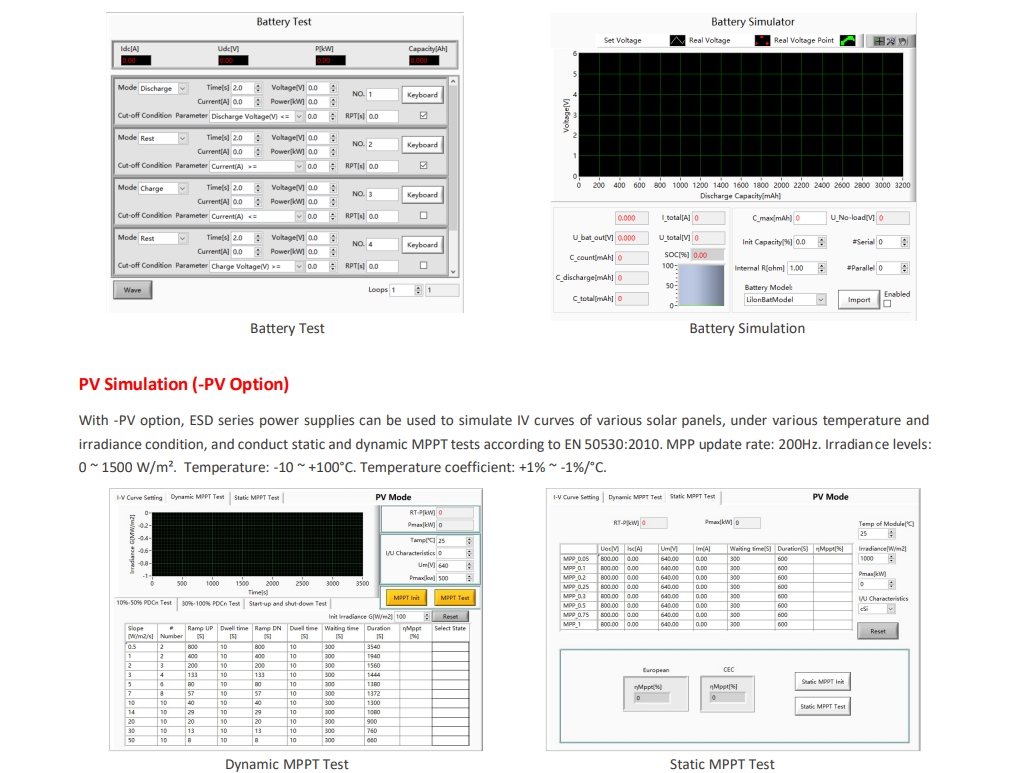

· Hardware & software for PV Simulation (-PV option)

· Low-Voltage operation mode (-ZV option)Output terminal insulation monitoring function (-INS option)

Quantity

Description

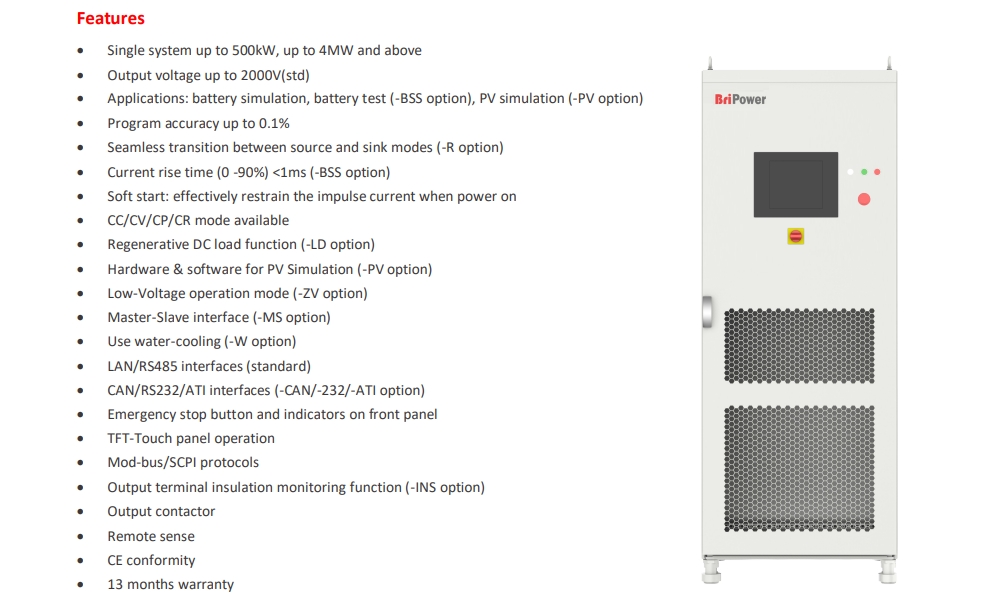

Features

Overview

The BriPower ESD series is IGBT PWM switching DC power supply, which contains multi output power levels from 30kW to 500kW for single system, up to 4 individual systems can be paralleled to up to 2MW system. Output power level of customized system goes up to 4MW and above. ESD series uses bi-directional design, which makes it possible to be used as DC power source or regenerative DC load. CV/CC/CP/CR operation modes are available for both sourcing and sinking. ESD series adopts dual DSP+FPGA design, with powerful calculation and control capabilities, and can display and save measured values at 10k/s sampling. The ESD series adopts optical fiber communication and performs multiple monitoring and protection of all main components, communication connections and systems. It is a reliable power supply product. With touch panel on the front panel, users can control the power source through GUI software. System status indicators and emergency stop button are installed on the front panel. RS485 and LAN standard interface, optional CAN, RS232 and analog control interfaces are available for automated test applications.

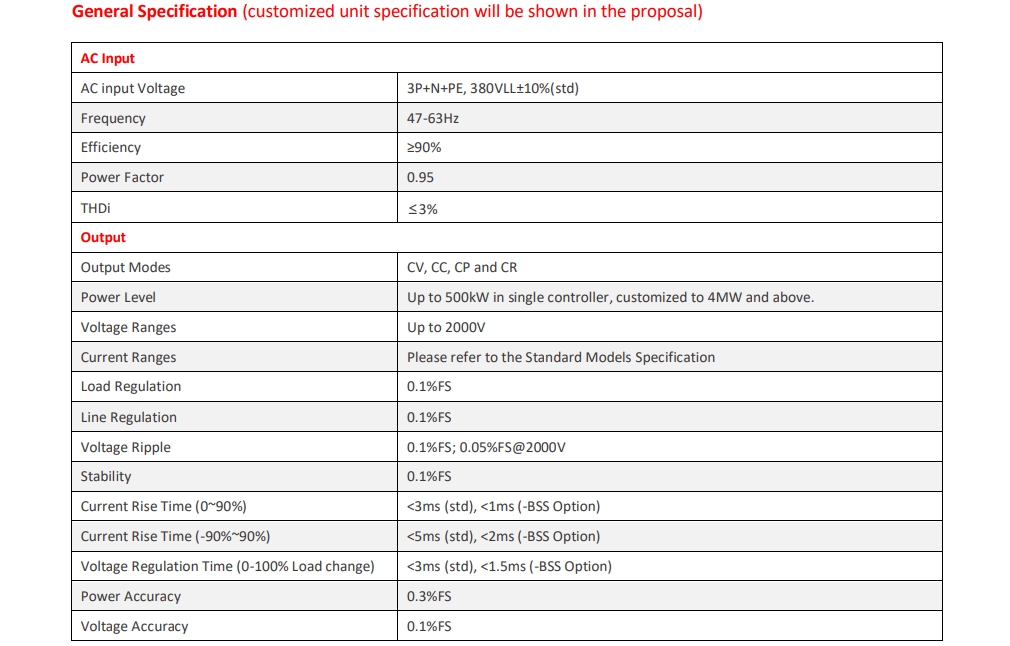

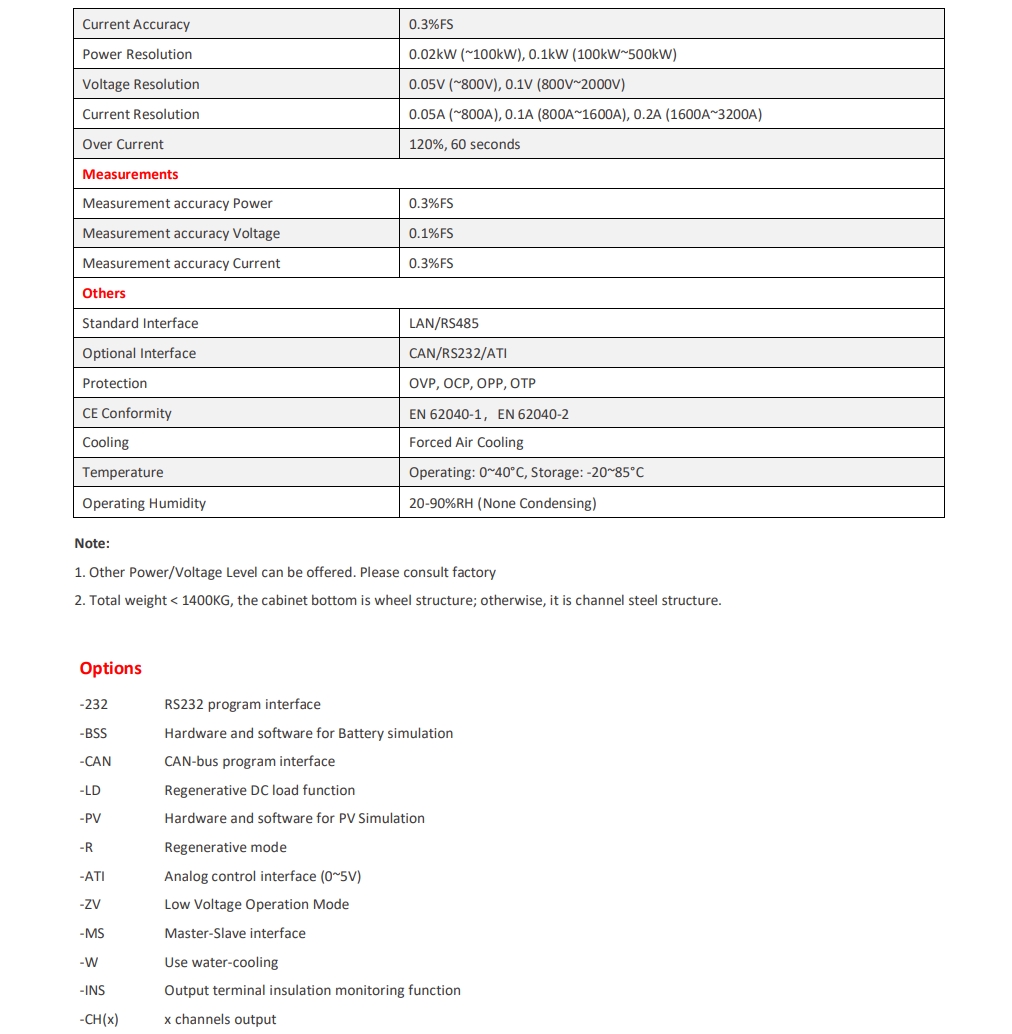

Specification

Operation Mode

Product Details
Programmable DC Power Supply
