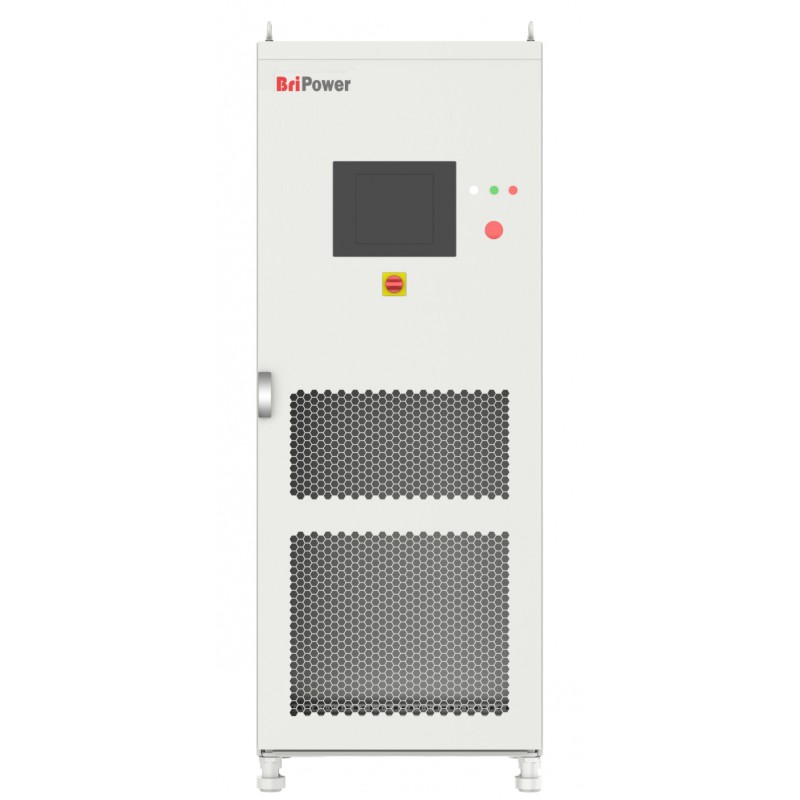

Bripower BSL Series High Power DC Power Supply/E-Load
  • Bripower BSL Series High Power DC Power Supply/E-Load

Bripower BSL Series High Power DC Power Supply/E-Load

DC Power Supply/E-Load
BriPower

· Output Power: 100kW/150kW/200kW/250kW/300kW

· Output Voltage: 1000V/1500V/2000V

· Output Current: *2 / *3 / *4

· Auto-Ranging Output

· Soft start: effectively restrain the impulse current when power on

· Seamless transition between source and sink modes

· Current rise time (0% -90%) <5ms

· CC/CV/CP/CR mode available

· Regenerative DC load function

Quantity

Description

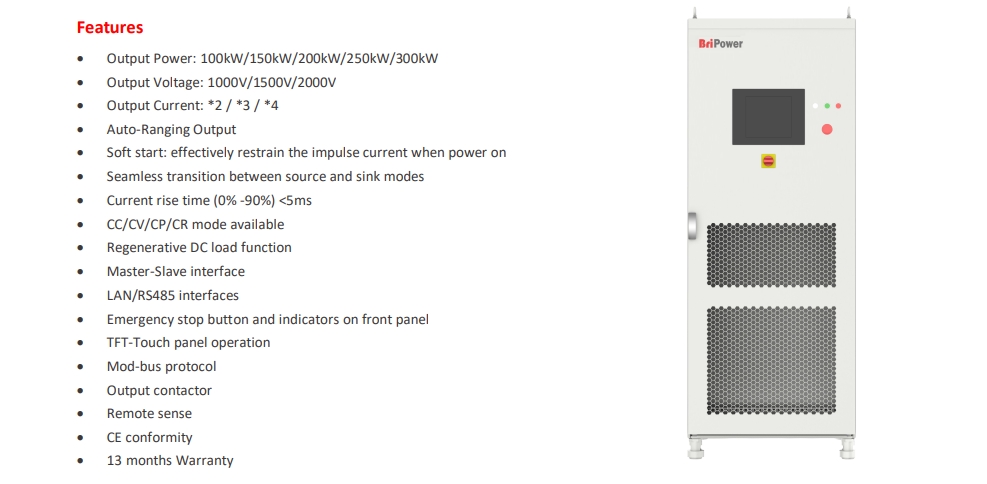

Features

Overview

The BriPower BSL series is IGBT PWM switching DC Power Source & E-Load, which contains multi output power levels 100kW/150kW/200kW/250kW/300kW for single system, up to 4 individual systems can be paralleled to up to 1.2MW system. BSL series has an auto-ranging output function. BSL standard models provide 1000V/1500V/2000V voltage and x2/x3/x4 current. BSL series uses bi-directional design, which can be used as DC power source or regenerative DC load. CV/CC/CP/CR operation modes are available for both sourcing and sinking. BSL series adopts dual DSP+FPGA design, with powerful calculation and control capabilities, and can display and save measured values at 10k/s sampling. The BSL series adopts optical fiber communication and performs multiple monitoring and protection of all main components, communication connections and systems. It is a reliable power supply product. With touch panel on the front panel, users can control the power source through GUI software. System status indicators and emergency stop button are installed on the front panel. RS485 and LAN interfaces are available for automated test applications.

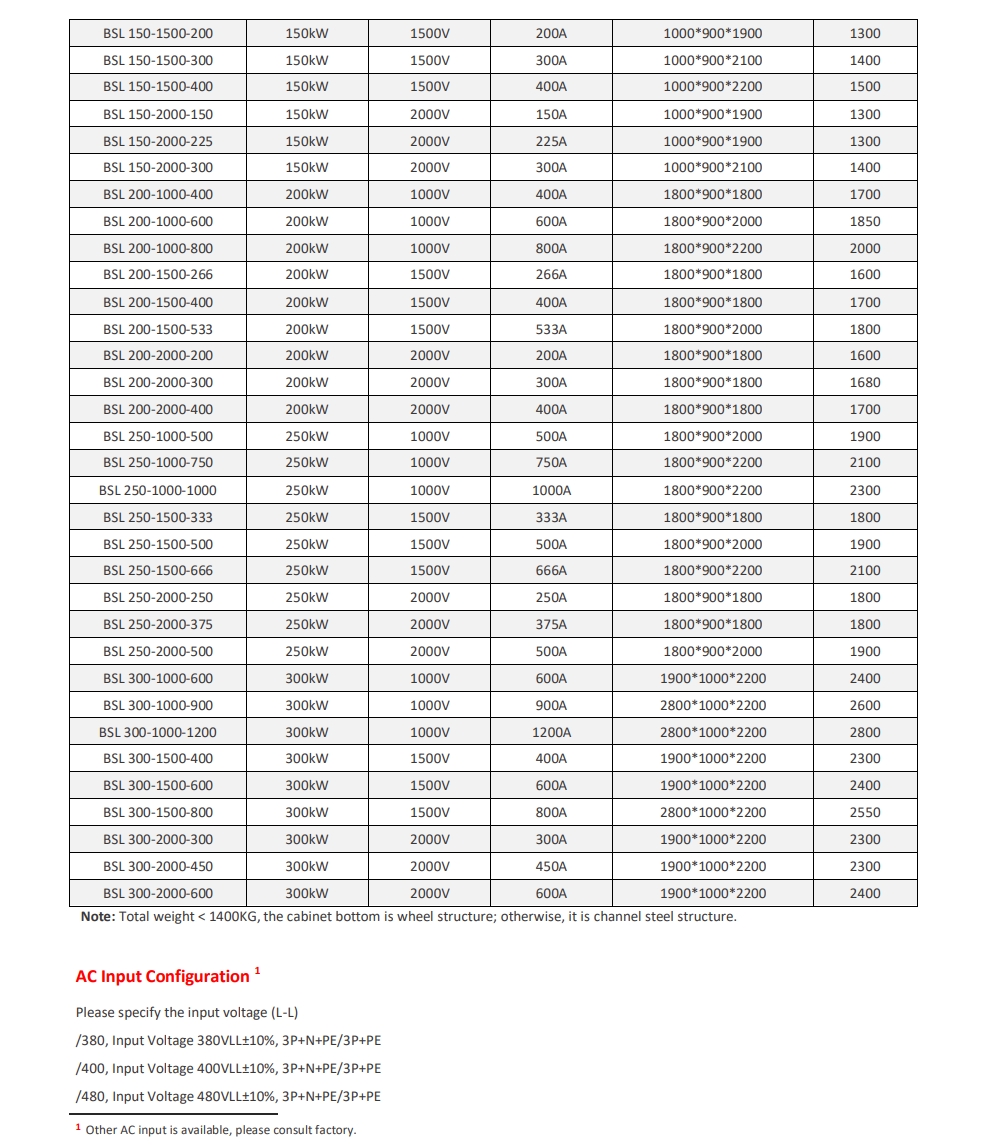

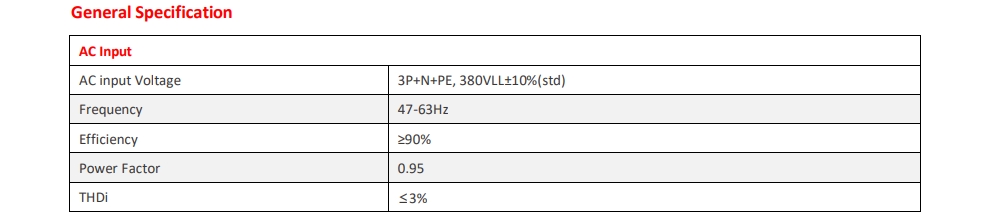

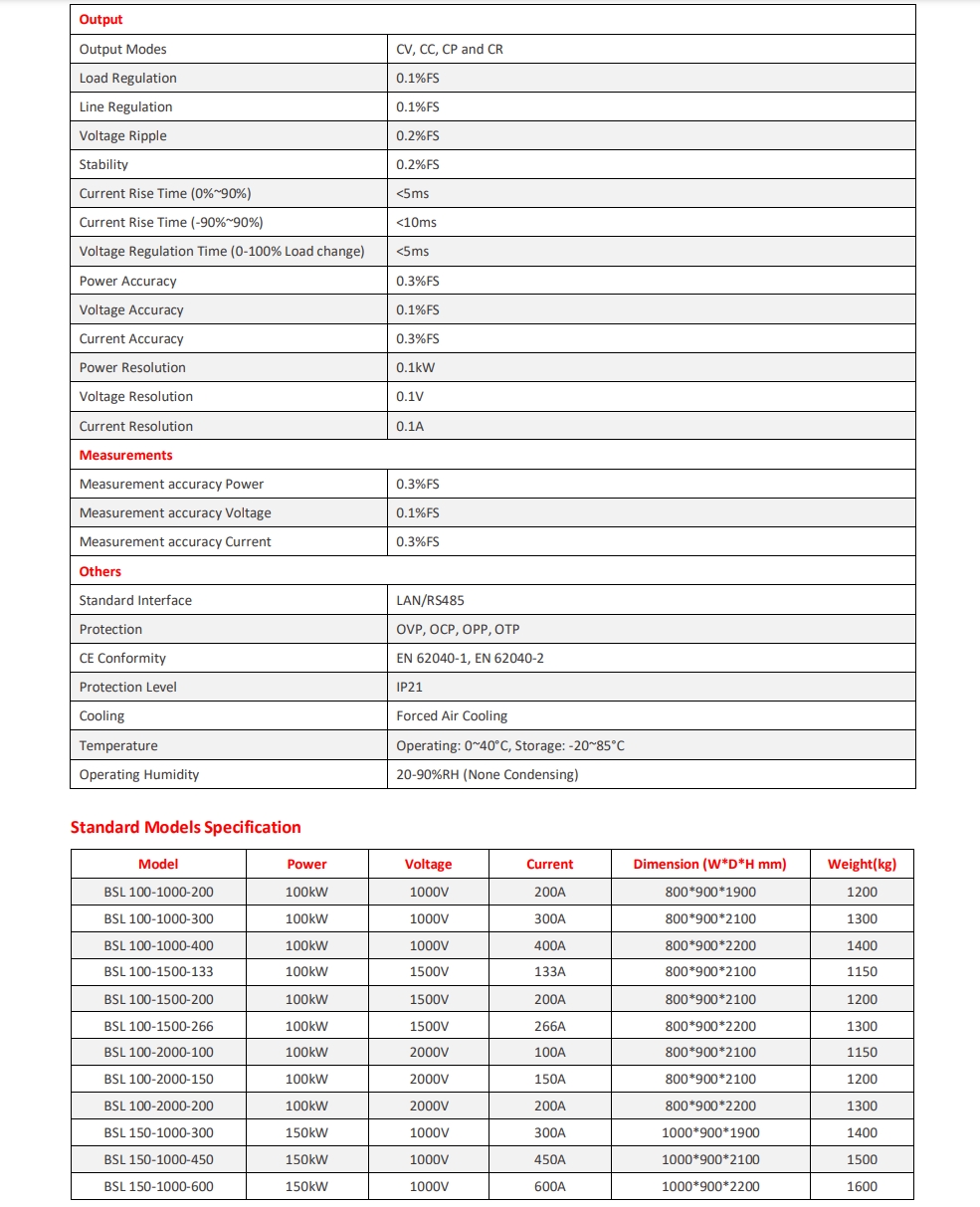

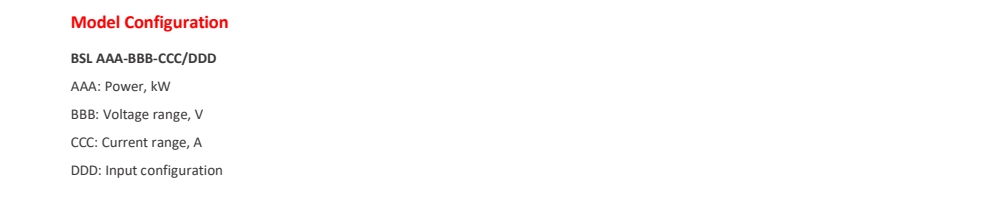

Specification

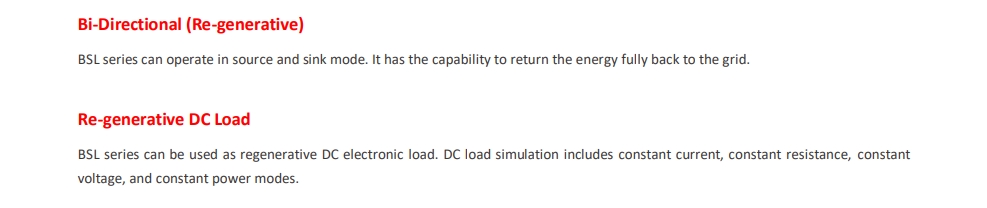

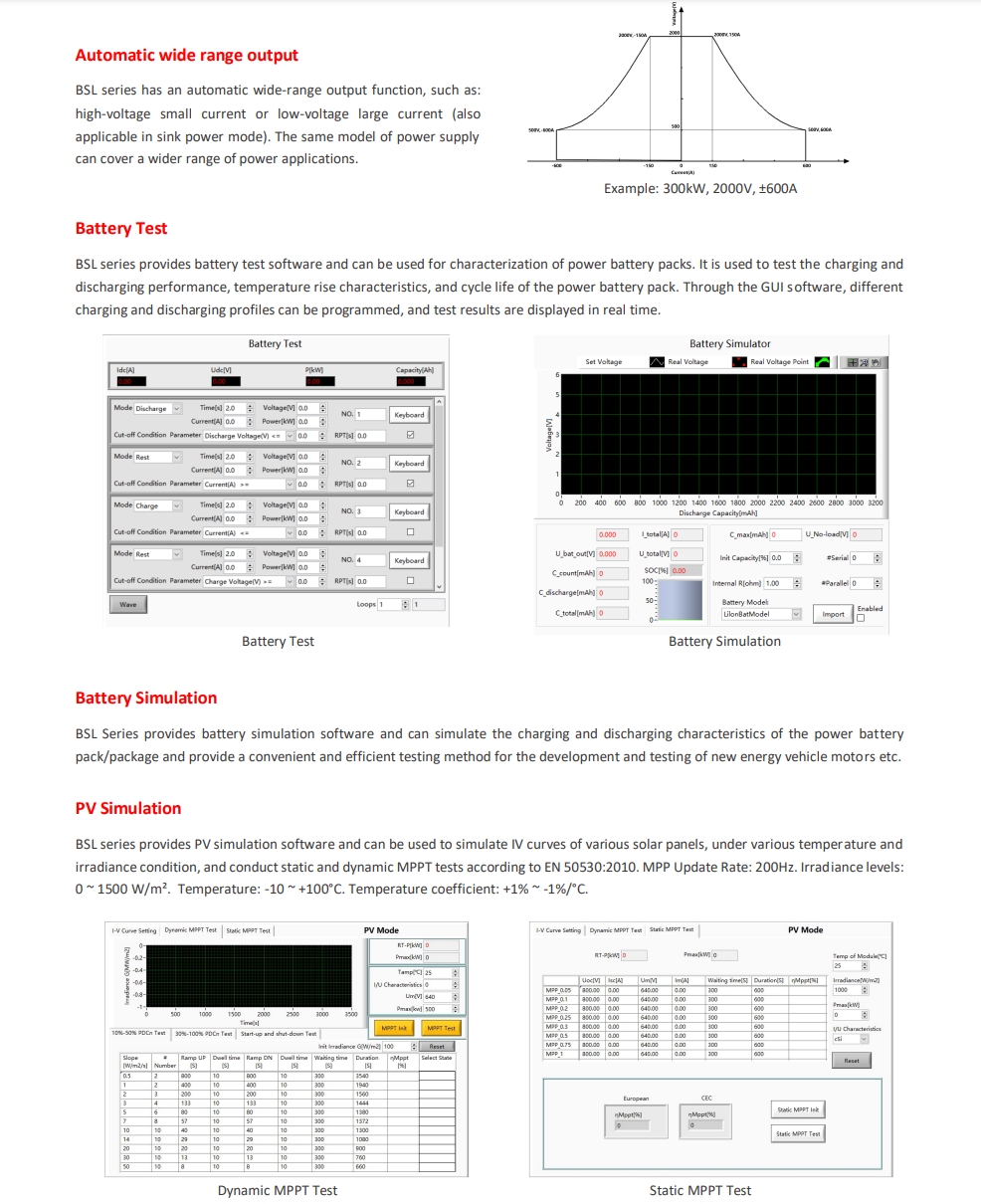

Operation Mode

Product Details
