Support Voltage: 3.3V-5.5V;
Channels: 1;
Opening Angle: H55°x V55°;
Typical Detection in liner direction of moving objects :7m;
Typical Detection in liner direction of static objects: 4m;
Frequency Band: 24 GHz, ISM;
Supply Current: 100uA;
Modulation: FMCW;
Output format: Serial + high/low level;
Size:2cm x 2cm

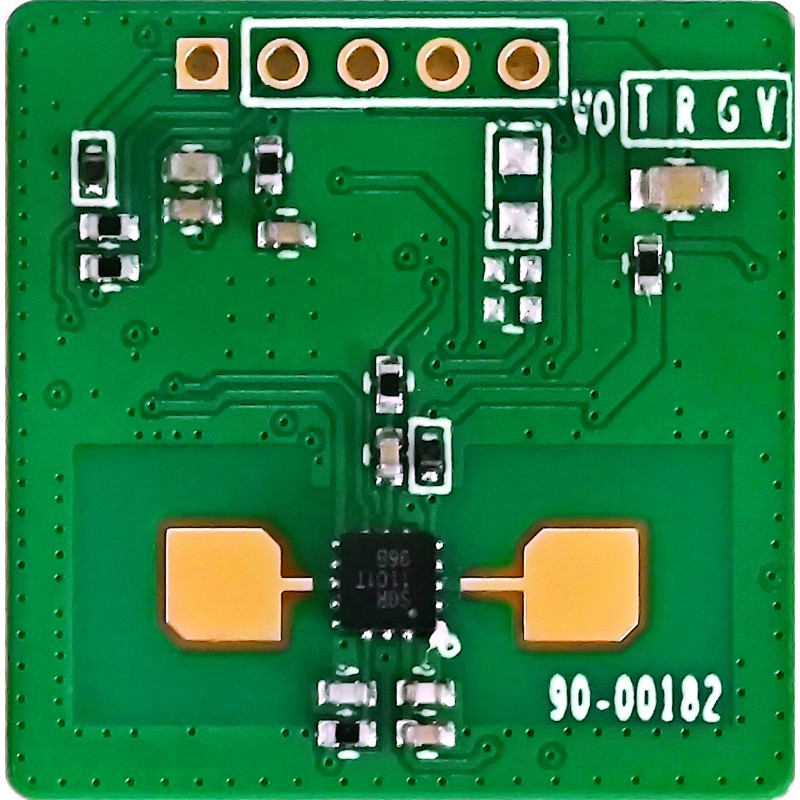

The APV1161LG is a low-power 24GHz millimeter-wave FMCW radar module for human presence detection. This module's main feature, in addition to traditional human sensing radar functions, is the ability to detect small movements such as human breathing to determine presence. The module operates in low-power mode with a typical average operating current of 80-100uA, making it suitable for battery-powered applications such as smart door locks and human presence sensors. The module uses FMCW modulation and can output the target distance.
For battery-powered low-power applications, Appvision has developed a low-power dedicated fast-start and low power version of its 1-transmitter-1-receiver radar solution together with its partners. The average operating current can be as low as less than 50uA.
1. Minimal peripheral circuitry.
2. Design with the classic FMCW algorithm, which can be used indoors
3. Flexibly to meet most of the battery-powered products
4. Configure to 3Hz duty cycle, the average current can be as low as less than 45uA
Indoor automation
• Smart door lock sensing
• Indoor lighting control/human presence detection
Reference: APV2301H
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 4; Opening Angle: H32°x V28°; Typical Detection in liner direction :6m; Presence Detection: 5m; Frequency Band: 24 GHz, ISM; Supply Current: 200 mA; Modulation: FMCW; Output format: Serial port ASCII; Size:2.2cm x 3.2cm
Reference: K-LC5
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:40m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 75.00 mA; Typical Detection Range person: 15m; Tuning Range: 260MHz; Size: 25 x 25 x 6
Reference: K-LD7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 30.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 38 x 25 x 14
Reference: K-LD7-EVAL
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 40.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 40 x 40 x 18
Reference: ST500_EVAL
Brand: RFbeam
Key Features: Support Voltage: 48V; Channels: 1; Opening Angle: H80°x V12°; Typical Detection Range car:80m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 35m; Tuning Range: - MHz; Size: 120 x 40 x 10
Reference: K-LD2-EVAL
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 65.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 25 x 31 x 18
Reference: K-LD2
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 55.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 25 x 25 x 6
Reference: APV1181
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Typical Detection in liner direction of moving objects : >8m; Frequency Band: 24 GHz; Supply Current: 70mA; Modulation: CW; Output format: Serial port ASCII Size:4.2cm x 0.5cm
Reference: K-HC1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:560m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 220.00 mA; Typical Detection Range person: 210m; Tuning Range: - MHz; Size: 110 x 77 x 19
Reference: K-MD7-EVAL
Brand: RFbeam
Small and low cost digital 24 GHz traffic radar sensor Measures speed, direction, distance and angle of moving objects Perfect for speed signs or simple traffic counting applications Maximum speed range of 200 km/h and distance range of 300m Typical detection distance of 50m for persons and 150m for cars Multi-target tracking for up to 8 moving objects...
Reference: APV1161G
Brand: AppVision
Key Features: Support Voltage: 3.3V-5.5V; Channels: 1; Opening Angle: H55°x V55°; High Mount: 3m height, 3m detection radius for stationary human (adjustable), 5m for moving objects (adjustable) Horizontal Detection: 6m detection radius for moving detection (adjustable), 4m detection radius for presence detection (adjustable) Frequency Band: 24 GHz, ISM;...
Reference: K-LC1a
Brand: RFbeam
Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H80°x V34°; Typical Detection Range car:31m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 12m; Tuning Range: -, 180 MHz; Size: 25 x 25 x 6
Reference: V-MD3
Brand: RFbeam
Key Features: Support Voltage: 12V, 24V; Channels: 4; Opening Angle: H60°x V36°; Typical Detection Range car:80m; Integrated Signal Processing: Yes; Frequency Band: 61 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 30m; Tuning Range: 40000 MHz; Size: 71 x 56 x 28
Reference: K-MC3
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:180m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 70.00 mA; Typical Detection Range person: 70m; Tuning Range: 180MHz; Size: 105 x 85 x 7
Reference: ST100_EVAL
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Integrated Signal Processing: no; Supply Current: 200.00 mA; Size: 94 x 83 x 10
Reference: K-LC4
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H38°x V132°; Typical Detection Range car:15m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 6m; Tuning Range: 140MHz; Size: 25 x 25 x 6
Support Voltage: 3.3V-5.5V;
Channels: 1;
Opening Angle: H55°x V55°;
Typical Detection in liner direction of moving objects :7m;
Typical Detection in liner direction of static objects: 4m;
Frequency Band: 24 GHz, ISM;
Supply Current: 100uA;
Modulation: FMCW;
Output format: Serial + high/low level;
Size:2cm x 2cm
