Support Voltage: 5V;
Channels: 2;
Opening Angle: H47°x V24°;
Typical Detection in liner direction of moving objects :4m;
Typical Detection in liner direction of static objects: 7m;
Frequency Band: 24 GHz, ISM;
Supply Current: 165 mA;
Modulation: FMCW;
Output format: Serial port ASCII;
Size:2.2cm x 3.2cm

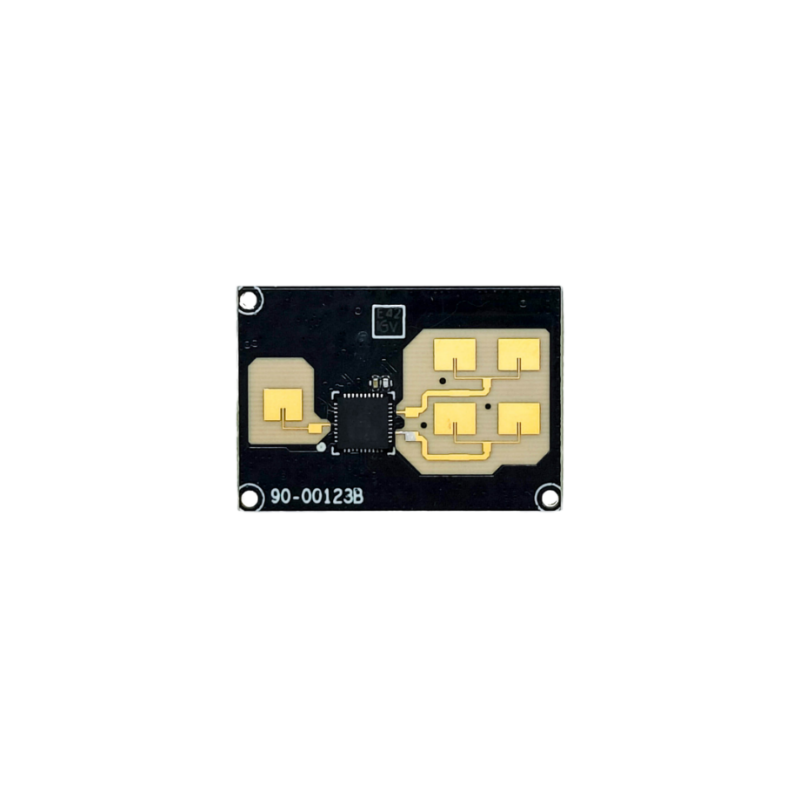

The APV1231E is a 24GHz millimeter wave human presence detection radar module with one transmitter and two receivers. Unlike traditional one-transmitter, one-receiver human presence radars that can only detect the presence or absence of a human and the distance to the human target, the APV1231E radar module can also output the angle of the human relative to the radar, truly achieving human position detection and enabling zoned linkage control. It can detect up to three moving targets simultaneously and perform data processing at a higher level to filter out interference targets with fixed coordinates.
1. The muti-objective algorithm help to realize the indoor zone detection
2. Reference design performance covers most phenomenon
3. Small size design with 1 transmitter and 2 receivers
Indoor automation
• Indoor Human trace track
• Air conditioning anti-direct blowing in close range
