Support Voltage: 3.6V-5.5V;
Channels: 1;
Opening Angle: H55°x V55°;
Typical Detection in liner direction of moving objects : >8m;
Frequency Band: 24 GHz;
Supply Current: 70mA;
Modulation: CW;
Output format: Serial port ASCII
Size:4.2cm x 0.5cm

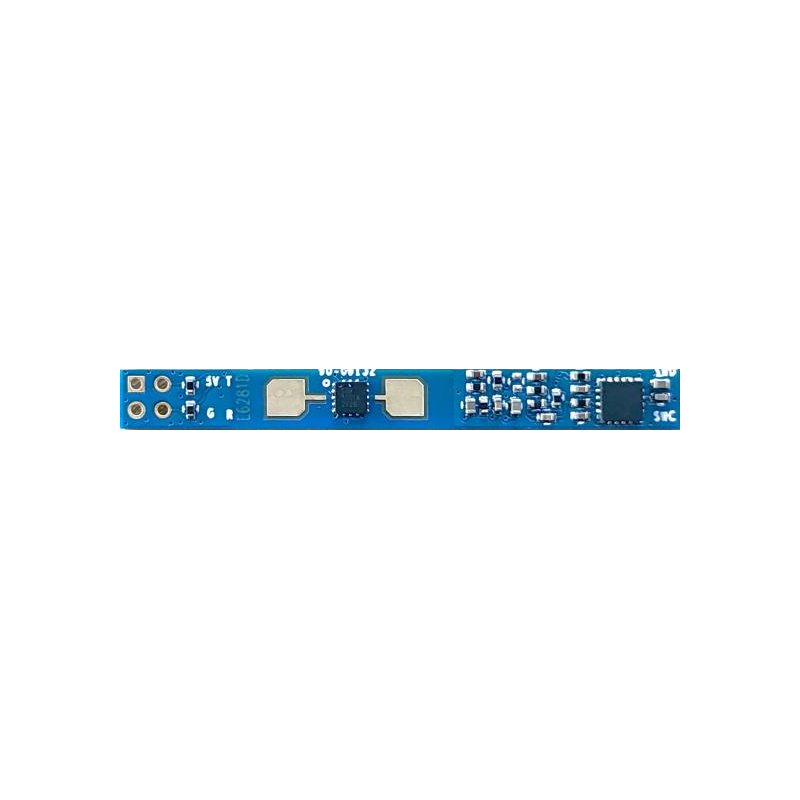

The APV1181 is a compact 24GHz millimeter wave radar module designed for detecting moving targets to trigger associated devices. Its narrow strip size is highly suitable for applications in various 86 box panel screens and narrow bezel screens. The panel can be installed without opening holes for concealed installation, capable of detecting the target's speed and approach/departure direction (Note: This feature is for the dual operational amplifier hardware version; with IQ two mid-frequency paths, Doppler can recognize the approach and departure directions), and it can estimate the range of motion through the motion energy value.
The module can penetrate non-metallic shells without the need for drilling holes. Common materials include plastics, glass, wood, ceramics, etc. For human presence detection applications, it is recommended to use wall-mounted plastic 86 box panels and various intelligent screen switch shells.
1. Minimal peripheral circuitry.
2. Design with the classic FMCW algorithm, which can be used indoors
3. Flexibly to meet most of the battery-powered products
4. Configure to 3Hz duty cycle, the average current can be as low as less than 45uA
Indoor automation
• Smart TV/Screen
• Indoor lighting control/human presence detection
Reference: K-LC3
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H38°x V132°; Typical Detection Range car:15m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 7m; Tuning Range: -MHz; Size: 25 x 25 x 6
Reference: APV2301H
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 4; Opening Angle: H32°x V28°; Typical Detection in liner direction :6m; Presence Detection: 5m; Frequency Band: 24 GHz, ISM; Supply Current: 200 mA; Modulation: FMCW; Output format: Serial port ASCII; Size:2.2cm x 3.2cm
Reference: K-HC1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:560m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 220.00 mA; Typical Detection Range person: 210m; Tuning Range: - MHz; Size: 110 x 77 x 19
Reference: K-LC7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 4; Opening Angle: H80°x V34°; Typical Detection Range car:22m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 90.00 mA; Typical Detection Range person: 8m; Tuning Range: 250MHz; Size: 38 x 25 x 6
Reference: K-TS1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: -; Opening Angle: H30°x V30°; Typical Detection Range car:-m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 100.00 mA; Typical Detection Range person: -m; Tuning Range: 2000 MHz; Size: 103 x 76 x 11
Reference: K-XC1_Ant
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:15m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 8m; Tuning Range: 4000 MHz; Size: 89 x 77 x 19
Reference: ST100_EVAL
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Integrated Signal Processing: no; Supply Current: 200.00 mA; Size: 94 x 83 x 10
Reference: K-LD7-EVAL
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 40.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 40 x 40 x 18
Reference: K-MD7-EVAL
Brand: RFbeam
- Digital 24 GHz traffic radar sensor- Measures speed, direction, distance and angle of moving objects- Perfect for speed signs or simple traffic counting applications- Maximum speed range of 200 km/h and distance range of 300m- Typical detection distance of 50m for persons and 150m for cars- Multi-target tracking for up to 8 moving objects
Reference: APV1161G
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 1; Horizontal Detection: 4m detection radius for presence detection (adjustable) Frequency Band: 24 GHz, ISM; Modulation: FMCW; Output format: Serial + high/low level; Size: 3.6cm x 3cm
Reference: K-LC4
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H38°x V132°; Typical Detection Range car:15m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 6m; Tuning Range: 140MHz; Size: 25 x 25 x 6
Reference: V-MD3
Brand: RFbeam
Key Features: Support Voltage: 12V, 24V; Channels: 4; Opening Angle: H60°x V36°; Typical Detection Range car:80m; Integrated Signal Processing: Yes; Frequency Band: 61 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 30m; Tuning Range: 40000 MHz; Size: 71 x 56 x 28
Reference: V-LD1-EVAL
Brand: RFbeam
- Small and low cost digital 61GHz FMCW radar distance sensor- Precise distance measurement with mm accuracy- Can be combined with a plastic lens for higher detection distances- Distance measurement up to 50m (depending on medium and used lens)- Ultra small SMD form factor (12mm × 16mm)
Reference: K-XC1_SMA
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H-° x V-°; Typical Detection Range car:-m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 300.00 mA; Typical Detection Range person: -m; Tuning Range: 4000 MHz; Size: 89 x 77 x 19
Reference: K-LC5
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:40m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 75.00 mA; Typical Detection Range person: 15m; Tuning Range: 260MHz; Size: 25 x 25 x 6
Reference: APV1181X
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Detection in liner direction of moving objects : >8m; Detection in liner direction of static objects : >4m; Frequency Band: 24 GHz; Supply Current: 20mA(average); Modulation: FMCW; Output format: Serial port ASCII Size:5.2cm x 0.7cm
Support Voltage: 3.6V-5.5V;
Channels: 1;
Opening Angle: H55°x V55°;
Typical Detection in liner direction of moving objects : >8m;
Frequency Band: 24 GHz;
Supply Current: 70mA;
Modulation: CW;
Output format: Serial port ASCII
Size:4.2cm x 0.5cm
