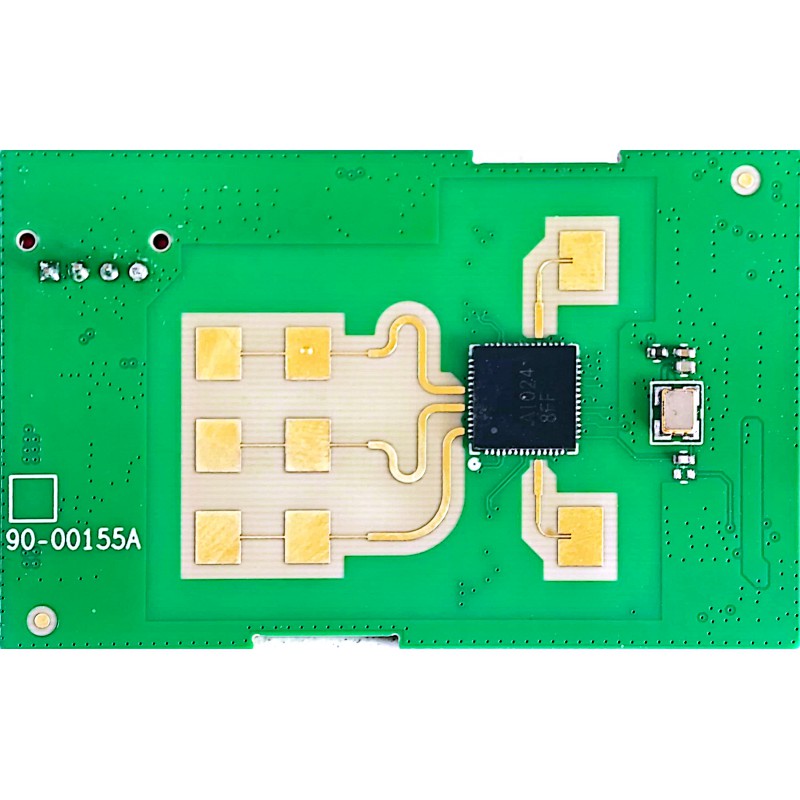

APV2301H high performance indoor track trace radar module
  • APV2301H high performance indoor track trace radar module

APV2301H high performance indoor track trace radar module

APV2301H
AppVision

Key Features:

Support Voltage: 5V;

Channels: 4;

Opening Angle: H32°x V28°;

Typical Detection in liner direction  :6m;

Presence Detection: 5m;

Frequency Band: 24 GHz, ISM;

Supply Current: 200 mA;

Modulation: FMCW;

Output format: Serial port ASCII;

Size:2.2cm x 3.2cm

Quantity

Description

Feature

1. The integrated phase-locked loop design simplifies the radar module design and reduces the BOM cost

2. Reference design performance covers most phenomenon

3. Small size design with 2 transmitter and 4 receivers

Typical Applications:

Indoor automation

• Indoor Human trace track
• Air conditioning anti-direct blowing in close range

Product Details
APV2301H
