Support Voltage: 5V;
Channels: 1;
Horizontal Detection: 4m detection radius for presence detection (adjustable)
Frequency Band: 24 GHz, ISM;
Modulation: FMCW;
Output format: Serial + high/low level;
Size: 3.6cm x 3cm
Overview
For battery-powered low-power applications, Appvision has developed a low-power dedicated fast-start and low power version of its 1-transmitter-1-receiver radar solution together with its partners. The average operating current can be as low as less than 50uA.
Feature
1. Minimal peripheral circuitry.
2. Design with the classic FMCW algorithm, which can be used indoors
3. Flexibly to meet most of the battery-powered products
4. Configure to 3Hz duty cycle, the average current can be as low as less than 45uA

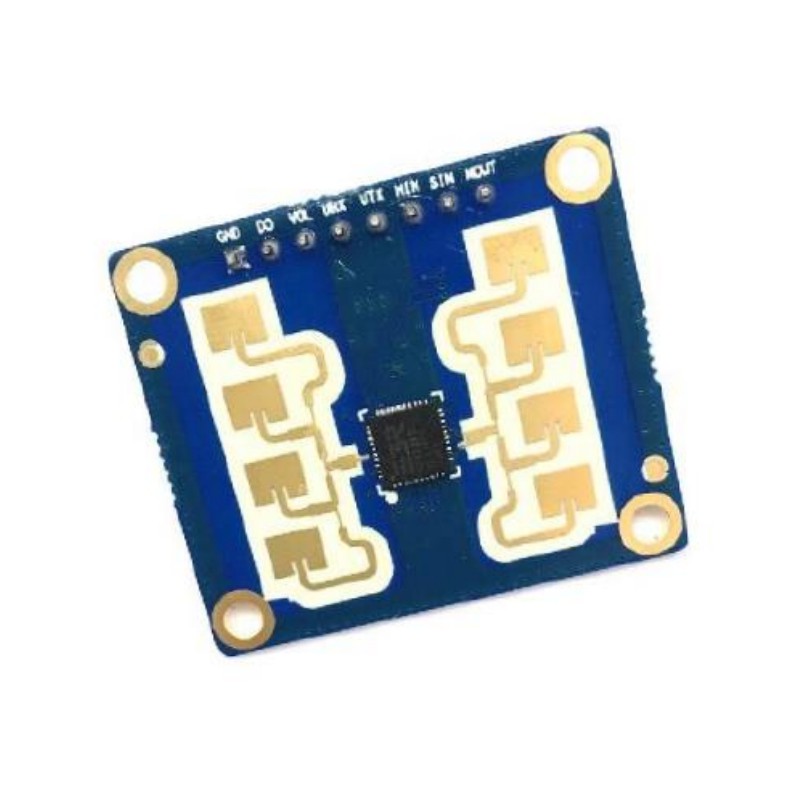

Vital detection
• Heart Rate and Respiration Rate Detection
Reference: K-HC1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:560m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 220.00 mA; Typical Detection Range person: 210m; Tuning Range: - MHz; Size: 110 x 77 x 19
Reference: K-LC3
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H38°x V132°; Typical Detection Range car:15m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 7m; Tuning Range: -MHz; Size: 25 x 25 x 6
Reference: K-DT1
Brand: RFbeam
Key Features: Support Voltage: 24V; Opening Angle: H30°x V30°; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 100.00 mA; Size: 125 x 70 x 24
Reference: K-MC4
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H30°x V12°; Typical Detection Range car:93m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 180.00 mA; Typical Detection Range person: 37m; Tuning Range: 180MHz; Size: 78 x 78 x 7
Reference: K-LC5
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:40m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 75.00 mA; Typical Detection Range person: 15m; Tuning Range: 260MHz; Size: 25 x 25 x 6
Reference: APV1181
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Typical Detection in liner direction of moving objects : >8m; Frequency Band: 24 GHz; Supply Current: 70mA; Modulation: CW; Output format: Serial port ASCII Size:4.2cm x 0.5cm
Reference: K-MC1-LP
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:140m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 7.50 mA; Typical Detection Range person: 50m; Tuning Range: -MHz; Size: 65 x 65 x 7
Reference: ST500_EVAL
Brand: RFbeam
Key Features: Support Voltage: 48V; Channels: 1; Opening Angle: H80°x V12°; Typical Detection Range car:80m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 35m; Tuning Range: - MHz; Size: 120 x 40 x 10
Reference: K-LD7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 30.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 38 x 25 x 14
Reference: RFBeam-custom-bundle
Brand: RFbeam
1x ST100 Starter Kit (AUD $650 plus GST) 5x K-LC1a_V2 (AUD $18.18 * 5 plus GST) 1x International Freight (AUD $25 plus GST)
Reference: M1000
Brand: AppVision
M1000 is a ground-based wind profiling radar based on millimeter wave detection technology. Its function is to supplement the detection blind zone near the ground of traditional wind profiling radar.
Reference: V-MD3
Brand: RFbeam
Key Features: Support Voltage: 12V, 24V; Channels: 4; Opening Angle: H60°x V36°; Typical Detection Range car:80m; Integrated Signal Processing: Yes; Frequency Band: 61 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 30m; Tuning Range: 40000 MHz; Size: 71 x 56 x 28
Reference: K-LC7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 4; Opening Angle: H80°x V34°; Typical Detection Range car:22m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 90.00 mA; Typical Detection Range person: 8m; Tuning Range: 250MHz; Size: 38 x 25 x 6
Reference: RSP1_EVAL
Brand: RFbeam
Key Features: Support Voltage: 12V; Channels: 2; Opening Angle: H80° x V34°; Typical Detection Range car:60m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 20m; Tuning Range: - MHz; Size: 76 x 74 x 10
Reference: K-LC1a
Brand: RFbeam
Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H80°x V34°; Typical Detection Range car:31m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 12m; Tuning Range: -, 180 MHz; Size: 25 x 25 x 6
Reference: K-LD2
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 55.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 25 x 25 x 6
Support Voltage: 5V;
Channels: 1;
Horizontal Detection: 4m detection radius for presence detection (adjustable)
Frequency Band: 24 GHz, ISM;
Modulation: FMCW;
Output format: Serial + high/low level;
Size: 3.6cm x 3cm
