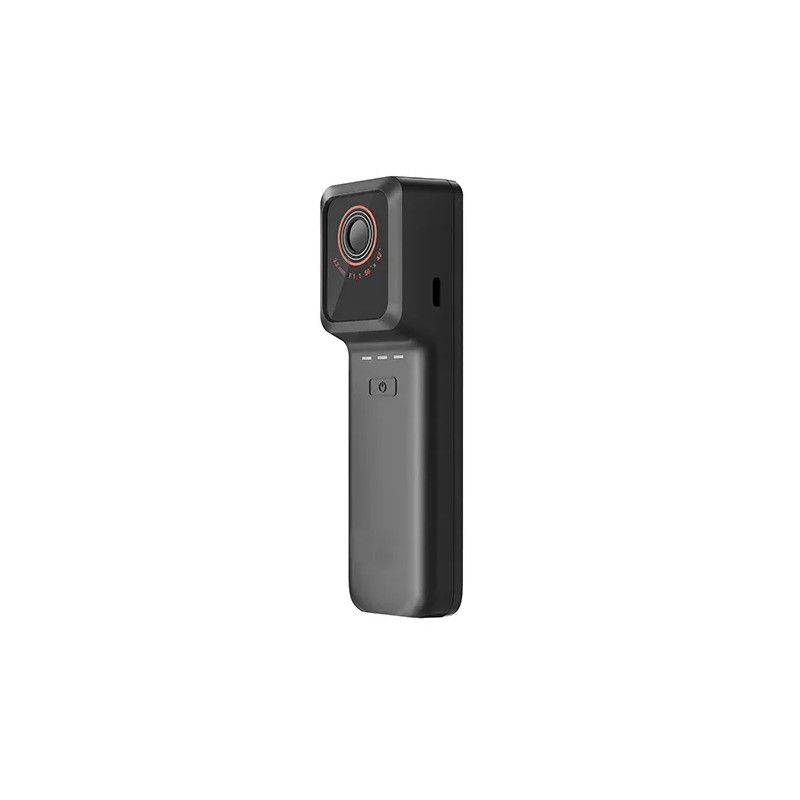

IX2 AIR SE Wireless Thermal Camera for Smart devices (WIFI connection),256×192, -20°C~550°C
  • IX2 AIR SE Wireless Thermal Camera for Smart devices (WIFI connection),256×192, -20°C~550°C
  • IX2 AIR SE Wireless Thermal Camera for Smart devices (WIFI connection),256×192, -20°C~550°C
  • IX2 AIR SE Wireless Thermal Camera for Smart devices (WIFI connection),256×192, -20°C~550°C

IX2 AIR SE Wireless Thermal Camera for Smart devices (WIFI connection),256×192, -20°C~550°C

IX2 AIR SE
Raythink

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR SE can be freely combined or separated with a smartphone according to the scenarios. It supports 8m wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields

Quantity

Description

Feature

logo

Wireless Measurement, Unlocking New Scenarios

1. Up to 8m* wireless image transmission.
2. Image transmission delay < 300ms.
3. With 2 hours of battery life, productivity is always alive.

logo

Clear Thermal Images, Precise Temperature Measurement

  1. Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
  2. 40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.

  3. 7 palettes, suitable for temperature observation of different targets and different scenes.

logo

Hard-core Configuration, Easy to Use and Convenient

  1. IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand, weighing only 130g.
  2. aster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
  3. Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.

*The 8-meter image transmission distance is the test value taken when the space is without obstruction.

Specification

Thermal Imaging
Detector Type

12μm uncooled infrared detector
Infrared Resolution

256×192
Spectral Band

7.5-14μm
Thermal Sensitivity (NETD)

＜40mK (25°C,F1.0)
Frame Rate

25Hz
Lens Focal Length

3.2mm
FOV

56°×42°
Spatial Resolution (IFOV)

3.75mrad
Focusing Mode

Fixed focus
Minimum Imaging Distance

0.3m
Measurement Range

-20°C~+150°C, 100°C~550°C
Measurement Accuracy

±2ºC or ±2% of readings, whichever is greater
Imaging Display
Palettes

7
Image Mode

Infrared
Temperature Width Stretch

Auto
Measurement and Analysis
App Analysis Function

Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames)
System Functions
Communication Protocol

Wi-Fi, USB, Bluetooth
Remote Access and Control

Connection to smart devices via Wi-Fi, up to 8m away
Others
OTA

Support OTA upgrade
Battery

1050mAh
Battery Life

About 2h
Charging Mode

USB Type-C
Clamp Width

Minimum 131mm/Maximum 172mm
Tripod Socket

UNC 1/4-20 interface for tripod
Operating Temperature

-10°C~+50°C
Operating Humidity

10%~90% (non-condensing)
Storage Temperature

-20°C~+60°C
Ingress Protection Rating

IP54
Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions

About 132g, 135.6×41×29.1mm
Authentication

CE/RoHS/CMA, etc.
Packing List

Thermal camera, USB cable

Application Scenarios

Power Maintenance

Equipment InspectionEquipment Inspection

HVAC Leak DetectionHVAC Leak Detection

Circuit Board Repairing
Product Details
