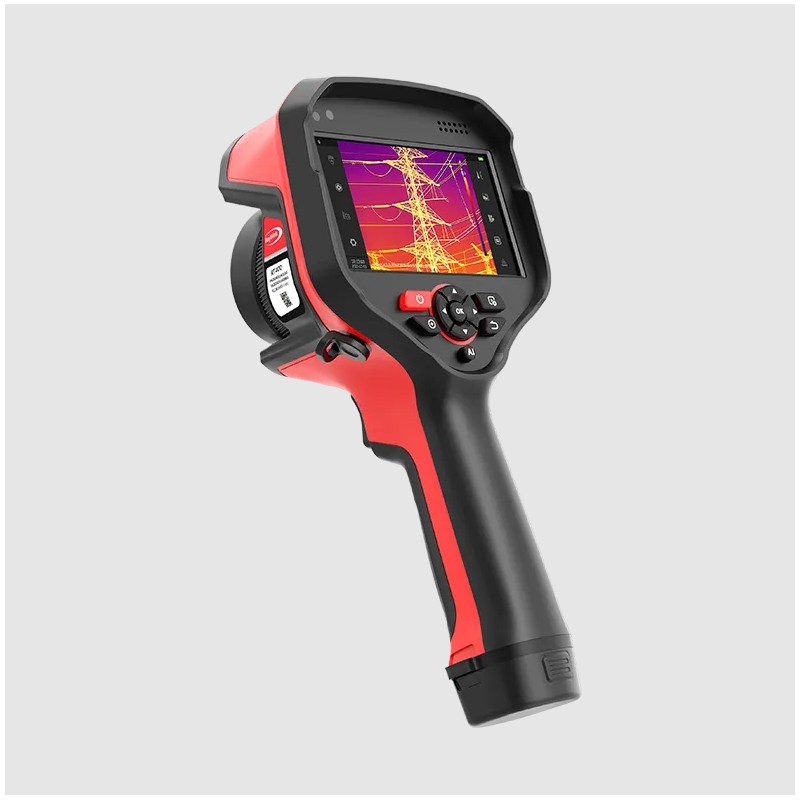

RT400 Expert Thermal Camera- 480×360 pixels, 25Hz, -20~1550℃

RT400
Raythink
  • Equipped with a new-generation detector with a NETD as low as 35mK, the new RT400 can capture more subtle hotspots, and display sharper and cleaner thermal images.
  • The device has rich and powerful features such as Android OS, trend analysis, and area measurement.
  • It is a new strong tool for expert-level full-scene analysis.
Quantity

Description

Feature

logo

Clear Thermal Images, Precise Temperature Measurement

  1. Equipped with a 12μm uncooled infrared detector, with a resolution of 480×360, supporting super resolution.
  2. NETD is as low as 35mK, and temperature measurement precision is ±2°C or ±2% of reading (whichever is the maximum value).
logo

Various Lenses and Fast Focusing

  1. Standard 25° lens, with optional wide-angle, telephoto, and super telephoto lenses.
  2. Support macro lenses, flexible for diverse scenarios.
logo

Functional Upgrade to Improve Efficiency

  1. Android operating system, more convenient to operate
  2. Support intelligent image stabilization, making temperature measurement images more stable
  3. Support laser range finding and area measurement.
  4. Support up to 15 points/lines/areas to analyze more temperature details in the screen.

Specification

Thermal Imaging
Detector Type

Uncooled infrared detector
Infrared Resolution

480×360
Pixel Size

12μm
Super Resolution

960×720
Spectral Band

7.5-14μm
Thermal Sensitivity (NETD)

＜35mK (25°C,F1.0)
Frame Rate

25Hz
Lens Focal Length

Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.
FOV

Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°;
Spatial Resolution (IFOV)

Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.
Focusing Mode

Manual focus, electric focus, laser-assisted focus, continuous automatic focus
Minimum Imaging Distance

Standard lens: 0.4m; super telephoto lens: 4m; telephoto lens: 3m; wide-angle lens: 0.2m; macro lens: 39mm; super macro lens: 19mm;
Measurement Range

-20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C
Measurement Accuracy

±2°C or ±2% of readings, whichever is greater
Imaging Display
Display

5-inch OLED touch screen, resolution 1280×720
Visible Light Camera

13 megapixels
Digital Zoom

1× ~ 10×
Palettes

19 options
Image Mode

Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch

Support
Measurement and Analysis
Analysis Functions on the Device

Support up to 15 movable points, lines, frames, circles and polygons, and up to 5 preset modes
Laser Range finding

Support
Area Measurement

Support
Hygrothermograph

Support
Position

Support
Temperature Difference Analysis

Support
Trend Analysis

Supports temperature trend recording and analysis.
Image Freezing

Support
Analysis Report

PDF format. Support editing and template importing on the PC client.
Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Image Storage
Storage Medium

Standard 64GB Micro SD, Support SD, SDHC, SDXC,up to 2TB
Text Notes

Support
Voice Annotation

Support
Video Functions
Radiation Infrared Video Recording

Support compressed full radiation video recording (.irv), up to 25Hz video recording.
Non-radiation Infrared or Visible Light Video Recording

Standard MP4 video recording
Radiation Infrared Video Stream Transmission

TYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streams
Non-radiation Infrared Video Stream Transmission

RTSP H.264
Video Resolution

1280×720
System Functions
Intelligent Image Stabilization

Support
Intelligent Panoramic Stitching

Support panoramic stitching on the PC client, and one-click synthesis.
Intelligent Routine Inspection

Support. General task package import and editing, standard and automatic naming of images
Routine Inspection Record Self-inspection

Support
Dual-Spectrum Video Recording

Simultaneous infrared video and visible light video recording, in MP4 format.
Communication Protocol

Wi-Fi, Bluetooth, USB, DP, Type-C to HDMI
Voice Control

Voice assistant, quick command recognition
Flashlight

Support
Others
Microphone/Speaker

Support
Battery Life

Continuous operating time ≥ 6 hours (depending on the actual environment and service conditions)
Interface

USB3.0 Type-C, SD card, SIM card, Mini HDMI
Tripod Socket

UNC 1/4-20 interface for tripod
Operating Temperature

-20°C~+55°C
Operating Humidity

10%~95% (non-condensing)
Storage Temperature

-40°C~+70°C
Ingress Protection Rating

IP54
Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions

About 1.3kg (with battery), 144×129×307mm (subject to actual situations)
Authentication

CE/RoHS/CMA, etc.
Packing List

Thermal camera, standard lens, lithium-ion battery×2, charging stand, charger (with plug for use in multiple countries), charging cable, Bluetooth headset, SD card 64G, Type-C cable, lens hood, mold drawing, data download card, calibration certificate, certificate of qualification, hand strap (with buckle), safety box, lens cap (with screws).

Application Scenarios

High Temperature Material Monitoring

Electronic and Electrical R&D

Electric Routine Inspection

Chemical Operation and Maintenance
Product Details
RT400

Data sheet

Thermal Camera Application
Building Inspection
