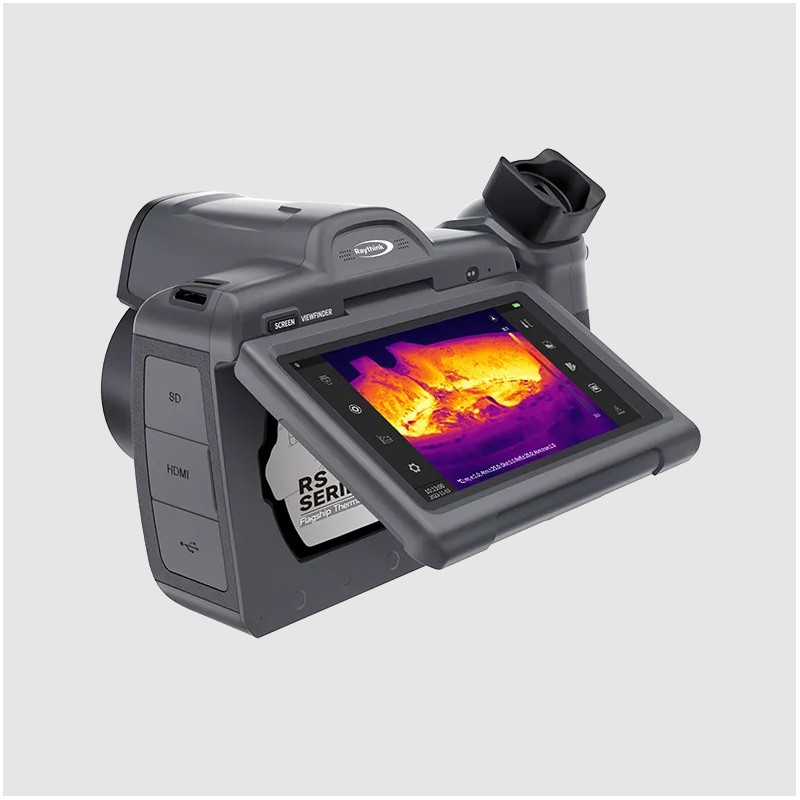

RS1280 Flagship Thermal Camera - 1280×1024 pixels, 30Hz, -20~1500℃

RS1280
Raythink
  • RS1280 is Raythink Technology’s first 1280×1024 high-performance, high-pixel thermal camera for scientific research.
  • Equipped with a self-developed new-generation VOx infrared detector with a thermal sensitivity as low as 25mK, this device uses intelligent image algorithms and precise temperature measurement algorithms to provide clearer infrared images and higher measurement accuracy.
  • Android operating system, intelligent applications & miscellaneous functions, and a 5.5-inch angle-adjustable display and rotatable handle bring a better experience meeting the ergonomics requirements.
Quantity

Description

Feature

logo

Clear Thermal Images, Precise Temperature Measurement

  1. Equipped with a 12μm uncooled infrared detector, with a resolution of 1280×1024, providing up to 2560×2048 HD super-resolution infrared thermal images.
  2. NETD as low as 25mK and a high measurement accuracy to generate more delicate thermal images.
logo

Various Lenses and Fast Focusing

  1. Standard 25° lens, with optional wide-angle, telephoto, super telephoto, and macro lenses, flexible for diverse scenarios.
  2. Support multiple focusing methods such as manual focus, auto focus, laser focus, auto focus, and continuous auto-focusing.
logo

AI Empowerment for Efficient Work

  1. Android operating system, more convenient to operate
  2. Support intelligent image stabilization, making temperature measurement images more stable
  3. Support laser rangefinding and area measurement.
  4. Support up to 35 points/lines/areas to analyze more temperature details in the screen.

Specification

Thermal Imaging
Detector Type

Uncooled infrared detector
Infrared Resolution

1280×1024
Pixel Size

12μm
Super Resolution

2560×2048
Spectral Band

7.5-14μm
Thermal Sensitivity (NETD)

＜25mK (25°C,F1.0)
Frame Rate

30Hz
Lens Focal Length

Standard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm; macro lens (0.2×): 17.8mm; super macro lens (0.4×): 15.2mm
FOV

Standard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36°
Spatial Resolution (IFOV)

Standard lens: 0.34mrad; telephoto lens: 0.17mrad; wide-angle lens: 0.6mrad; macro lens: One pixel corresponds to 50μm; super macro lens: One pixel corresponds to 25μm.
Focusing Mode

Manual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focus
Minimum Imaging Distance

Standard lens: 0.5m; telephoto lens: 2.3m; wide-angle lens: 0.2m; macro lens: 46mm; super macro lens: 13mm;
Measurement Range

Standard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range). Optional: 400°C~1500°C, other ranges (high temperature range)
Imaging Display
Display

5.5-inch LCD touch screen, resolution 1920×1080
Visible Light Camera

13 megapixels
Digital Zoom

1–15 times, continuously adjustable roller
Palettes

19 options
Image Mode

Infrared, visible light, PIP, dual-spectrum fusion
Temperature Width Stretch

Support
Measurement and Analysis
Laser Rangefinding

Support
Area Measurement

Support
Position

Support
Temperature Difference Analysis

Support
Trend Analysis

Supports temperature trend recording and analysis.
Image Freezing

Support
Analysis Report

PDF format. Support editing and template importing on the PC client.
Supporting Software

PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)
Image Storage
Storage Medium

Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.
Text Notes

Support
Voice Annotation

Support
Video Functions
Radiation Infrared Video Recording

Support compressed full radiation video recording (.irv), up to 15Hz video recording
Non-radiation Infrared or Visible Light Video Recording

Standard MP4 video recording
Radiation Infrared Video Stream Transmission

Analysis at about 25Hz on PC
Non-radiation Infrared Video Stream Transmission

RTSP H.264
Video Resolution

1920×1080
System Functions
Intelligent Image Stabilization

Support
Intelligent Panoramic Stitching

Support
Intelligent Routine Inspection

Support. General task package import and editing, standard and automatic naming of images
Routine Inspection Record Self-inspection

Support
Dual-Spectrum Video Recording

Simultaneous infrared video and visible light video recording, in MP4 format.
Communication Protocol

Wi-Fi, Bluetooth, USB
Voice Control

Voice assistant, quick command recognition
Flashlight

Support
Others
Microphone/Speaker

Support
Battery

9000mAh lithium-ion battery, field-replaceable, fast charging
Battery Life

Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)
Charging Mode

USB Type-C or desktop charger
Interface

USB3.0 Type-C, SD card, SIM card, Mini HDMI
Tripod Socket

UNC 1/4-20 interface for tripod
Operating Temperature

'-15°C~+50°C
Operating Humidity

10%~95% (non-condensing)
Storage Temperature

-40°C~+70°C
Ingress Protection Rating

IP54
Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)
Weight and Dimensions

<1.7kg (with battery), 140×210×115mm
Authentication

CE/RoHS/CMA, etc.

Application Scenarios

Electric Routine InspectionElectric Routine Inspection

MicroelectronicsMicroelectronics

High-End Scientific ResearchHigh-End Scientific Research

Nondestructive TestingNondestructive Testing
Product Details
RS1280

Data sheet

Thermal Camera Application
Building Inspection
