TE464G Explosion-Proof Gas Imaging PTZ- Gas Detection
  • TE464G Explosion-Proof Gas Imaging PTZ- Gas Detection

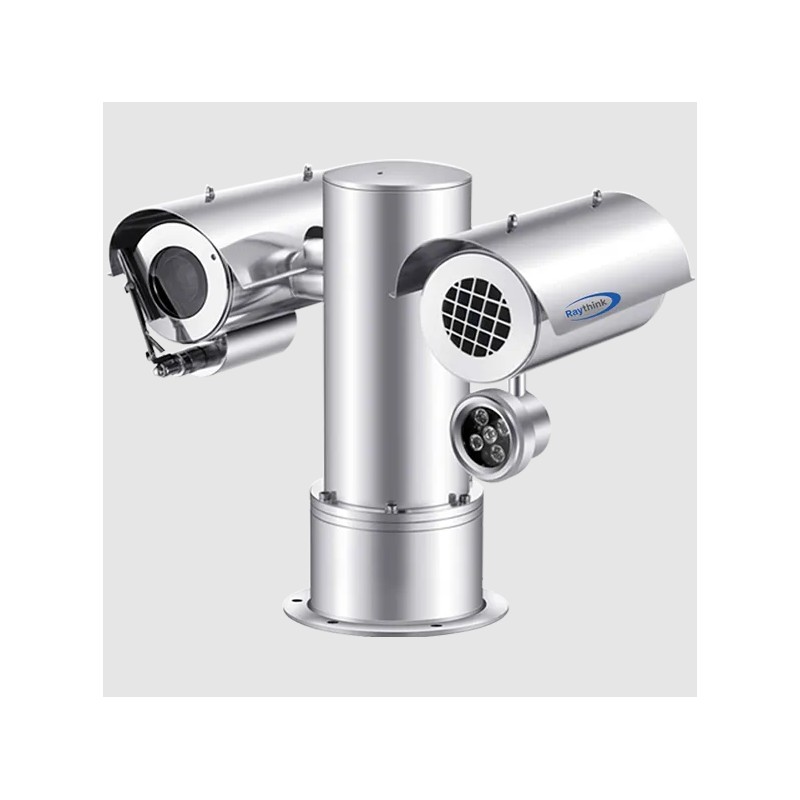

TE464G Explosion-Proof Gas Imaging PTZ- Gas Detection

TE464G
Raythink
  • TE464G is a high-performance dual-spectrum gas imaging camera featuring an advanced uncooled infrared detector with a thermal sensitivity of less than 20mK.
  • It holds dual explosion-proof certifications and has a stainless steel body with an IP68 ingress protection rating.
  • The device supports multiple protocols, such as Modbus TCP, ONVIF, and GB28181, and supports secondary development.
  • It can detect gases such as methane, propane, and ethylene and finds significant applications in industries such as oil exploitation and coal processing.
Quantity

Description

Feature

logo

Highly-Sensible Uncooled Detector for Non-Contact Gas Imaging Monitoring

  1. The new-generation highly-sensible uncooled detector offers a thermal sensitivity of less than 20mk.
  2. An integrated gas imaging algorithm enables passive, non-contact gas imaging detection, swiftly locating leakage positions.
logo

Dual-Spectrum Imaging for 24/7 Monitoring

  1. Combines visible light and thermal imaging for dual-spectrum imaging, catering to both gas imaging and industrial temperature measurement.
  2. Supports professional temperature analysis and intelligent fire point detection, providing continuous 24/7 monitoring services for industrial facilities.
logo

Dual Explosion-Proof Certifications and Stainless Steel Body for Enhanced Safety

  1. Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃ dual explosion-proof certifications
  2. 304/316L stainless steel body of IP68 ingress protection rating

Specification

Thermal Imaging Parameters
Detector Type

VOx uncooled focal plane detector
Spectral Band

7~8.5μm
Thermal Sensitivity

≤20mK(@25°C,F#1.0)
Infrared Resolution

640×512
Pixel Pitch

12μm
Lens Focal Length

25mm
Focus Mode

Athermalized prime lens/Electric focusing
FOV

17.5°×14°
IFOV

0.48mrad
Palettes

Black-hot/White-hot/Rainbow/Other palettes optional (20 modes in total)
Visible Light Parameters
Sensor

1/1.8" 4-megapixel CMOS image sensor
Maximum Image Resolution

2688×1520
Lens Focal Length

6.4mm~128mm
Focus Mode

Automatic/Manual/Semi-automatic
FOV

Horizontal: 59.6°~3.5°
Gas Parameters
Gas Type

Methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene oxide, propylene oxide, ethylene, propylene, 1-butene, methanol, ethanol, butanol, ethylene glycol, isopropanol,etc
PTZ Parameters
Horizontal Range

360° horizontal continuous rotation
Vertical Range

-90°~+90°
Number of Presets

256
Scan Mode

Preset point/Patrol scan/Pattern scan/Area scanning/Linear scanning
Temperature Measurement Function
Measurement Range

-20℃~+550℃
Measurement Accuracy

±2°C or ±2%
Temperature Analysis

Supports global, point, line, and area temperature measurement rules as well as alarm linkage.
PTZ Function
Fire Warning

Supports fire point detection.
Intelligent Video Taking

Video taking triggered upon alarms or network failures
Intelligent Alarm

Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.
Intelligent Detection

Supports intelligent analysis of events such as tripwire intrusions and regional intrusions.
Alarm Linkage

Video taking/Image capture/Email/Linked PTZ/Alarm output
System Interface
Power Supply

85V～260V AC/24V DC 3A (optional)
Communication Interface

1 RJ45 10M/100M adaptive Ethernet port; 1-channel RS485 interface, supporting Pelco protocol.
Alarm Interface

1-channel alarm input, 1-channel alarm output
General Specifications
Operating Temperature and Humidity

-40°C～+60°C; <90%RH
Ingress Protection Rating

IP68
Power Consumption

≤100W (thermostat activated)
Dimensions

436×296×406 mm
Weight

27kg
Explosion-proof Mark

Exd IIC T6 Gb/Ex tD A21 IP68 T80℃

Application Scenarios

Oil exploitation

Chemical engineering

Coal processing

Chemical engineering
