Current flowing bidirectionally to make it both a power supply and a load
The current flows in both directions. N8361 can both suck and output current, and the current is up to 10A. The output port has a switch component, and the off state disconnects the physical connection with the external loop.
Variable output impedance allowing battery internal resistance simulation
N8361 has the battery internal resistance simulation function, and supports resistance value programming. The programmable range is 0-20Ω, which can emulate the variation graph consistent with the real battery internal resistance characteristics.

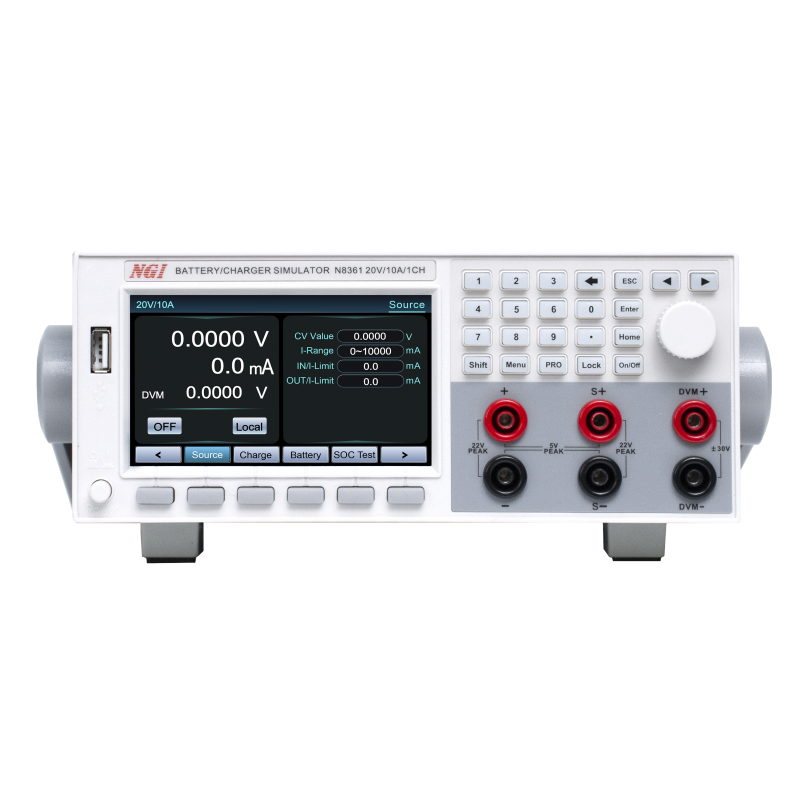

Front and rear wiring design
N8361 is equipped with banana jack at the front panel and output terminal at the rear panel, which is easy for desktop application &integration, and improves the test efficiency.
DVM test function
N8361 series provides basic circuit measurement function. It has one channel built-in DVM to test external voltage. The voltage range is -30V ~ 30V, and the resolution is 0.1mV. The LCD screen will show the dynamic data, which is convenient for users to observe the voltage changes.
Product dimension
