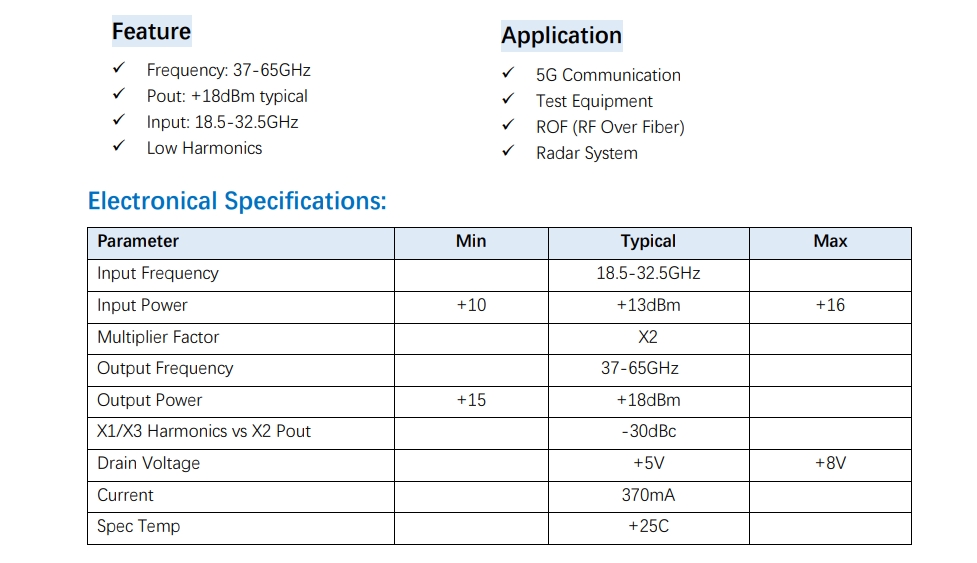

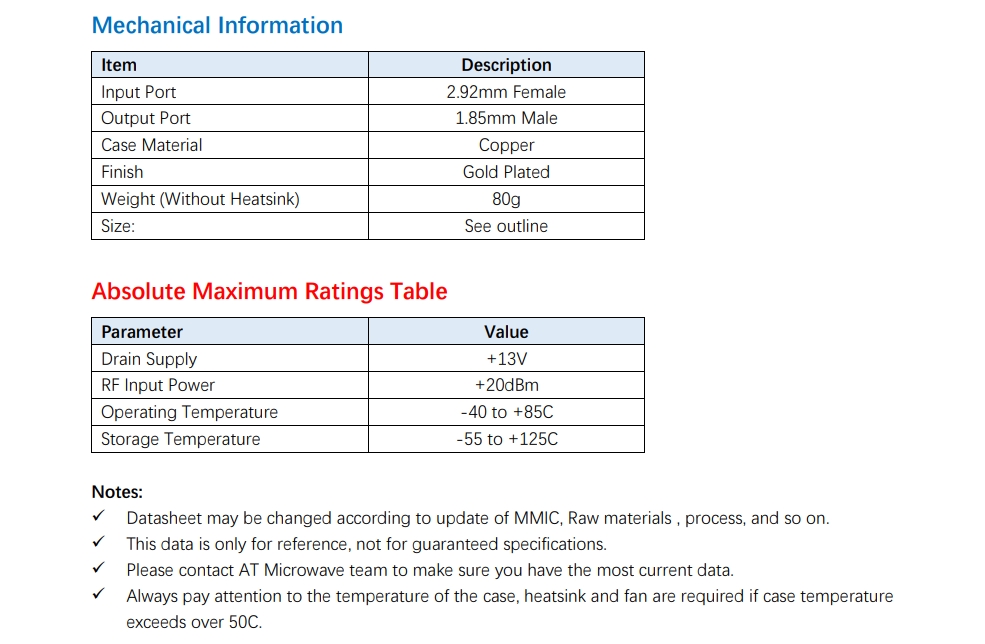

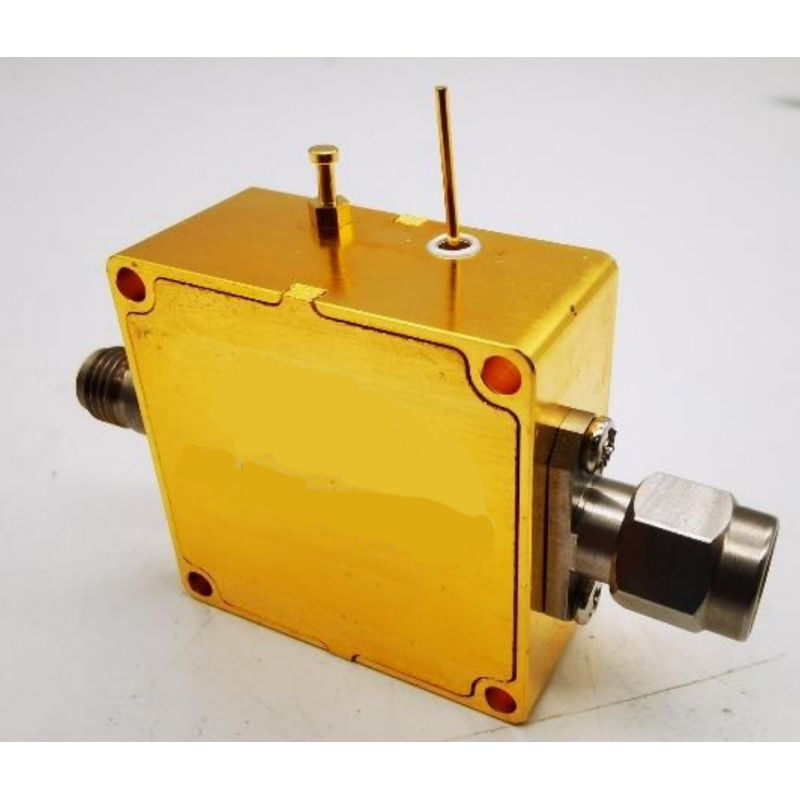

Active Multiplier x2, 37-65Hz Pout18dBm APV-AM2-3765-18
APV-AM2-3765-18
Active X2, 37-65GHz Frequency Doubler
High Harmonics Suppression
Description
Product Details
APV-AM2-3765-18
5 other products in the same category:
Reference: APV-AM4-4060-10V
Brand: AppVision
Active Multiplier x4, 40-60GHz Pout10dBm APV-AM4-4060-10V
Active X4, 40-60GHz Broadband, Pout=+10dBm, 1.85mm
In stock
Reference: APV-PM2-3580-10F
Brand: AppVision
35-80GHz Output Passive Doubler APV-PM2-3580-10F
a passive broadband MMIC based doubler with output frequency from 35-80GHz. It features excellent conversion loss, superior isolations and harmonics suppression across a broad bandwidth.
In stock
Reference: APV-AM6-5766-26VL
Brand: AppVision
Active Multiplier x6, 57-66GHz Pout26dBm APV-AM6-5766-26VL
x6 V Band Active Multiplier 57-66GHz, Pout=+26dBm, 1.85mm Female
In stock
Reference: AM3-3050-20L
Brand: AppVision
Active Multiplier x3, 30-50GHz Pout20dBm APV-AM3-3050-20L
Active X3, 30-50GHz Broadband, High Power Pout=+20dBm, 2.4mm
In stock
Active X2, 37-65GHz Frequency Doubler
High Harmonics Suppression
