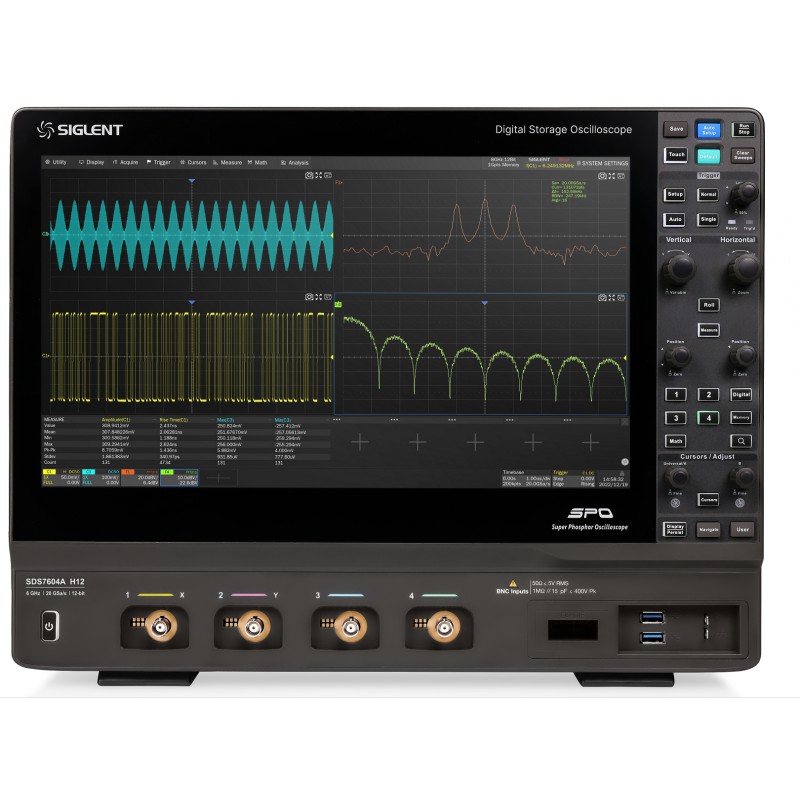

Siglent SDS7604AP 6 GHz, 20 GSa/s @ all channels, 4-CH, 12-bit,1 Gpts/CH

3-year local warranty by the authorised distributor AppVision Australia

education discount available for the research and university institutes

The SDS7000A series digital storage oscilloscopes are available in bandwidths of 3 GHz, 4 GHz, 6 GHz and 8 GHz, have sample rate of 20 GSa/s, maximum record length of up to 1 Gpts/ch and display up to 4 analog channels + 16 digital channels mixed signal analysis ability.

The Siglent SDS7804A H13 employs Siglent’s SPO technology with a maximum waveform capture rate of up to 1.000.000 wfm/s, 256 level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.

The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye /Jitter Analysis allow for extended waveform records to b e captured, stored, and analyzed.

An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the Siglent SDS7804A H13.

Additional functionality is provided by the combination of optional hardware and software:

• USB decoding with the USB 2.0 test device FX-USB2 and the software SDS7000A-USB2
• USB compliance test with the USB 2.0 test device FX-USB2 and the software SDS7000A-CT-USB2
• Ethernet compliance test with the FX-ETH test device and either the SDS7000A-CT-100BASE-T or SDS7000A-CT-1000BASE-T software
• Ethernet compliance test specifically for the automotive sector with the FX-AMETH test device and either the SDS7000A-CT-100BASE-T1 or SDS7000A-CT-1000BASE-T1 software

The large 15.6’’ display capacitive touch screen supports multi touch gestures, with the addition of user friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Siglent SDS7804A H12 Key Features

• 4 analogue channels, up to 8 GHz bandwidth with two channel and 4GHz in 3 and 4 channel modes
• with up to 20GSa/s sample rate 2 channels, 10GHz sample rate 4 channels
• 12-bit ADC
• Low background noise: 260 μVrms @ 6 GHz bandwidth
• SPO technology
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, CAN XL(decode only), FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC429, USB 2.0 (decode only)
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 124,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 124,000 frames
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces
• 4 Math traces (32 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot as standard plus optional Power Analysis, Eye/Jitter Analysis, SignalScan, Compliance Test (USB 2.0, 100Base-TX, 1000Base-T, 2.5G/5G/10GBase-T, 100Base-T1, 1000Base-T1, MIPI-DPHY), Spectrum Analyzer mode (RTSA/DDC/Signal analysis, for A models only)
• High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels
• Built-in 50 MHz waveform generator
• Large 15.6” HD TFT-LCD display with 1920 * 1080 resolution; Capacitive touch screen supports multi-touch gestures.
• Interfaces include: 4x USB Host 3.1 Gen 1，2x USB 3.0 Host， USB 2.0 Device，2x 1000M LAN， DVI-D， DP 1.2， HDMI 1.4， Audio, External Trigger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In，10 MHz Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.
