TMYTEK UD Box 5G, up to 44GHz up/down converter
  • TMYTEK UD Box 5G, up to 44GHz up/down converter

TMYTEK UD Box 5G, up to 44GHz up/down converter

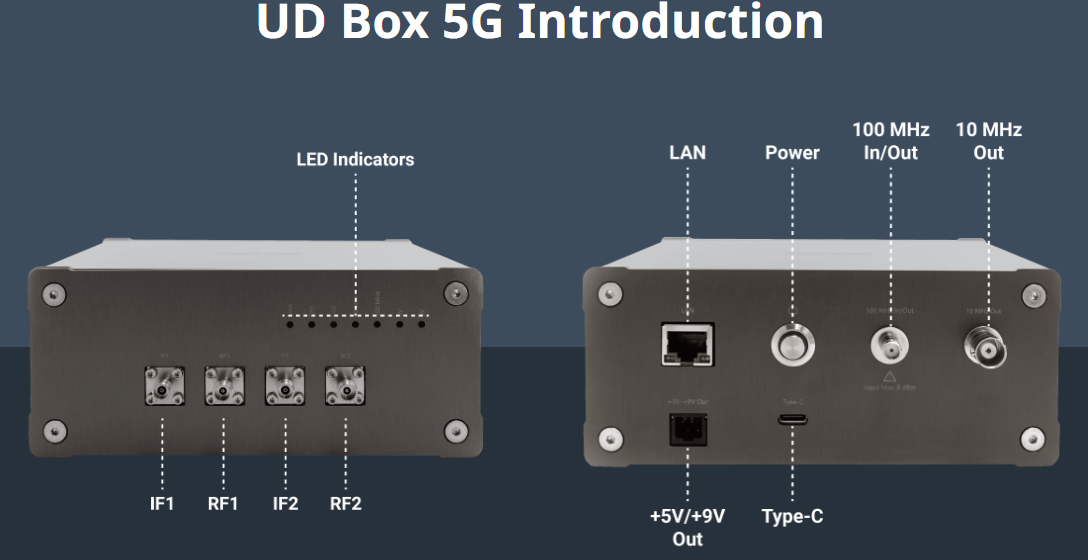

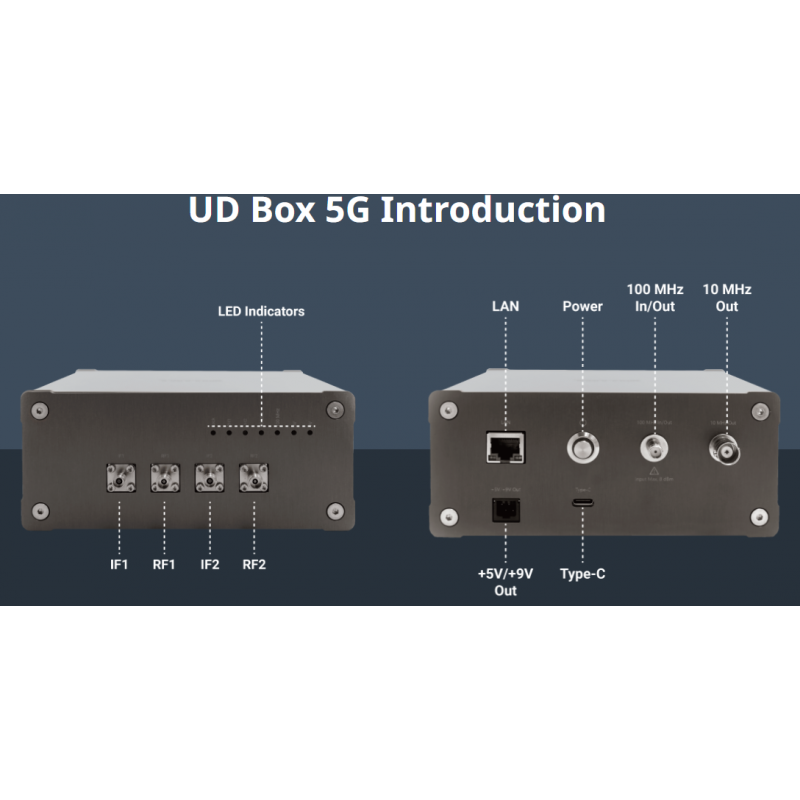

UD Box 5G

RF: 24-44 GHz; IF: 0.01- 14 GHz

Built-in LO with 24-44 GHz control range

Highly precise OCXO reference clock

10 MHz output and 100 MHz input/output synchronization

Bi-directional circuit topology

TMYTEK-made accessories, i.e. amplifier, band-pass filter (optional)

CE/FCC/UKCA/ICES certified

Quantity

Description

UD Box Series

Model UDB-D/-S UDB-0630 UDM-0620
RF Frequency 24 – 44 GHz 6-30 GHz 6 - 20 GHz
LO Frequency 24 – 44 GHz 6-30 GHz 6 - 20 GHz
IF Frequency 0.1 – 14 GHz 1-8 GHz 1 - 10 GHz
Build-in LO Yes Yes Yes
Converversion loss 13 dB typ. 10 dB typ. 10 dB typ.
Control Ethernet Ethernet USB
10 MHz Sync No Yes Yes
100 MHz Sync Yes Yes No
Reference clock OCXO OCXO OCXO
Dimension 150 x 120 x 65 mm 142.8 x 152 x 65 mm 222 x 177 x 51 mm
Application
  1. 5G NR mmWave (n257-n260)
  2. Ka/Q-band Satellite
  1. Ku-band LEO Satellite
  2. WiFi-6e/7
  3. UWB
  4. Defense Radar
  5. 5G NR up-mid band FR3/FR2
  1. Ku-band LEO Satellite
  2. WiFi-6e/7
  3. UWB
  4. Defence Radar

Software Ready

With our in-house designed GUI and API, users have extensive control of LO frequencies as well as channels and reference ON/OFF functions in one unified view. They provide convenience for production line automation and are perfect for research environments.

GUI that engineers can control LO frequencies as well as channels and reference ON/OFF functions in one unified view.

Multi-Channel Research and Applications Made Possible

TMYTEK UD Box comes in two variants, UD Box Single and UD Box Dual, to provide researchers flexibility for various research and application purposes. Built with a shared LO, TMYTEK UD Box is equipped with 100 MHz and 10 MHz clock references to support external synchronization with other devices. As a result, MIMO system development can be realized with multiple sets of UD Boxes while telecom carriers can perform Far Field Assessment Simulation for 5G mobile base stations with two sets of UD Box Dual and TMYTEK's beam tracking solution, saving you time and budget.

Compatible with Most Sub-6 GHz Instruments

Compatible with Most Sub-6 GHz Instruments and expand the 5G mmWave related research possibilities.

5G New Radio UE/gNB Emulator Upgrade Solutions

TMYTEK UD Box upgrades Sub-6 GHz UE/gNB emulator to mmWave version to support applications such as signaling communication test with 3GPP standard defined function verification, high throughput performance testing capability, mmWave terminal function verification and performance testing, and 5G analysis from PHY to RRC/ NAS layer.

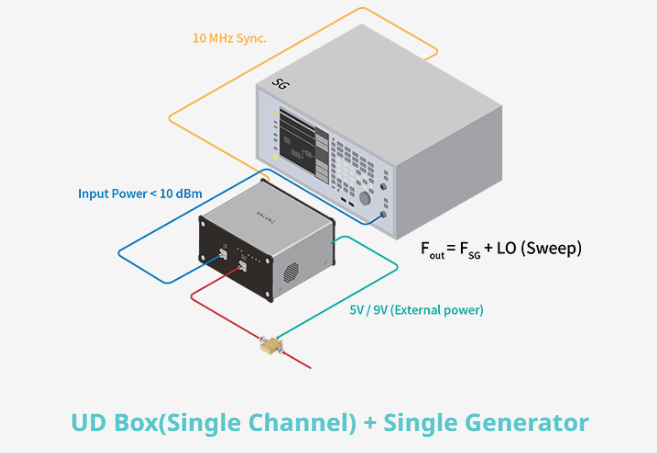

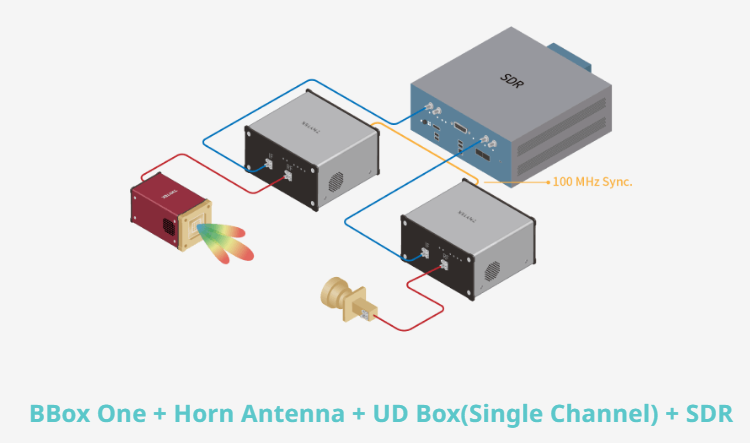

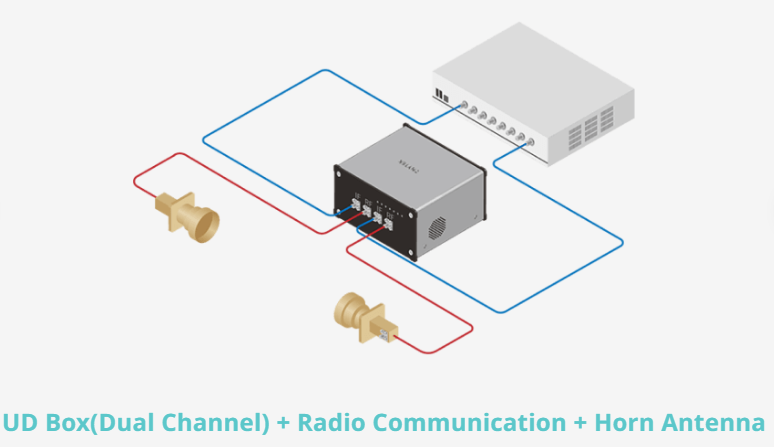

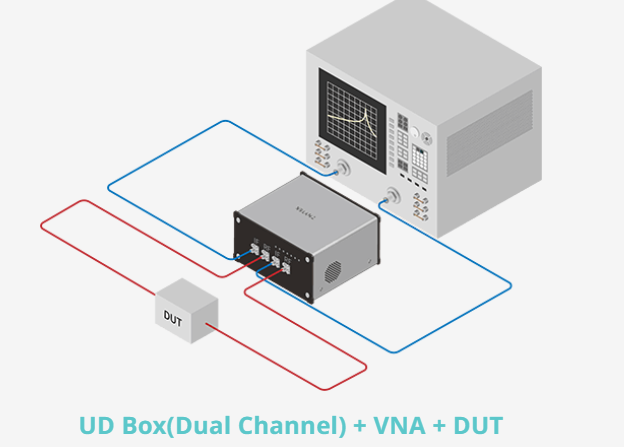

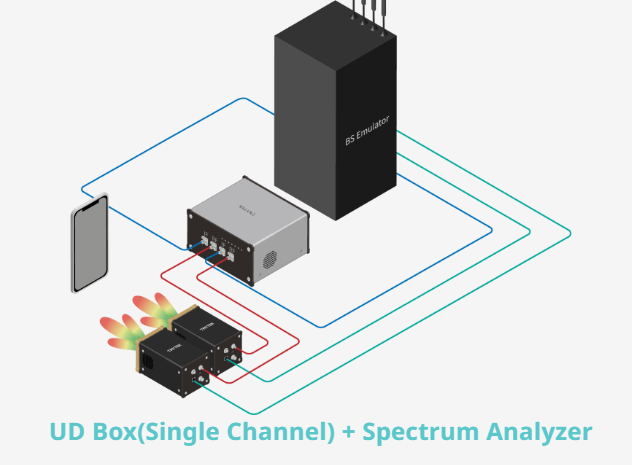

System Architectures





Product Details
UD Box 5G
