• RF: 6 to 20 GHz
• IF: 1 to 10 GHz
• Adjustable LO frequency: 6 to 20 GHz
• Conversion Loss: 10 dB (typical)
• Integrated with an internal LO source
• Simultaneously up and down conversion for each channel
• Ideal for WiFi-6/7, UWB, LEO applications
| Model | UDB-D/-S | UDB-0630 | UDM-0620 |
|---|---|---|---|
| RF Frequency | 24 – 44 GHz | 6-30 GHz | 6 - 20 GHz |
| LO Frequency | 24 – 44 GHz | 6-30 GHz | 6 - 20 GHz |
| IF Frequency | 0.1 – 14 GHz | 1-8 GHz | 1 - 10 GHz |
| Build-in LO | Yes | Yes | Yes |
| Converversion loss | 13 dB typ. | 10 dB typ. | 10 dB typ. |
| Control | Ethernet | Ethernet | USB |
| 10 MHz Sync | No | Yes | Yes |
| 100 MHz Sync | Yes | Yes | No |
| Reference clock | OCXO | OCXO | OCXO |
| Dimension | 150 x 120 x 65 mm | 142.8 x 152 x 65 mm | 222 x 177 x 51 mm |

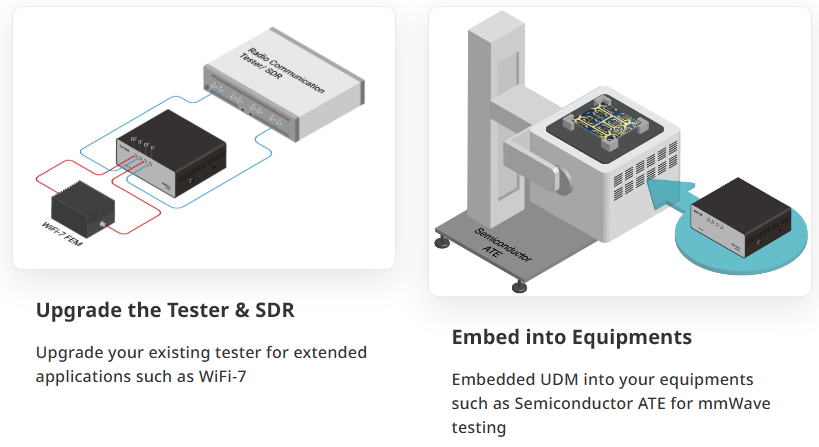

| Application |
|
|
|

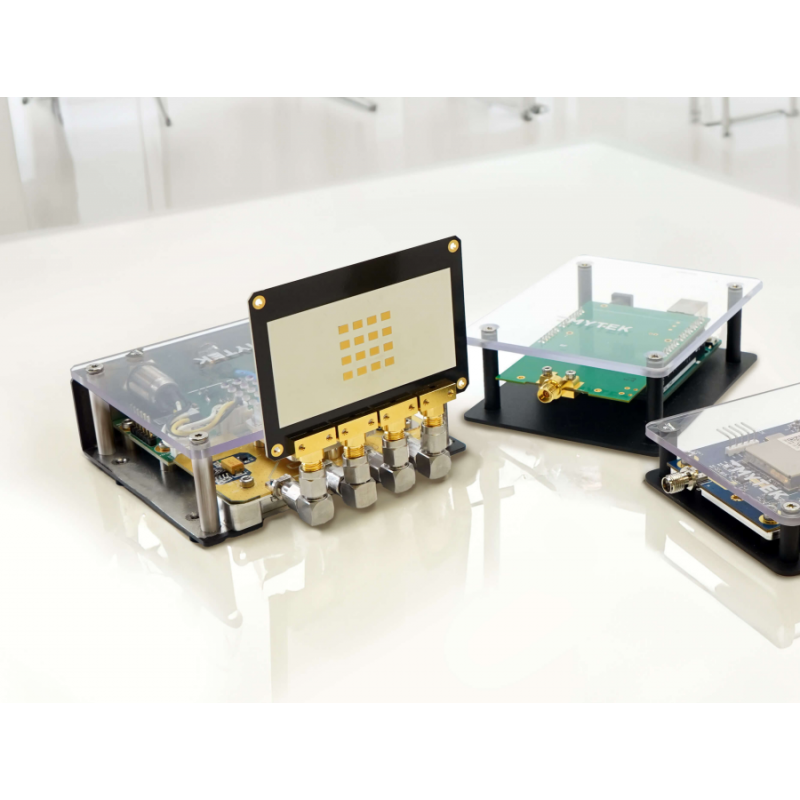

Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
Reference: mmWave Kits
For Developers Ready-to-use complete mmWave communication testbed suite Flexible array antenna test platform Time-saving theories to prototyping For Education Step-by-step courses in beamforming technologies Affordable and flexible experiment cases
Reference: BBox One 5G
Operating Frequency: 26.5 to 29.5 GHz Antenna designed for 5G n257 band Up to 16 controllable RF channels, each channel providing: 360 ̊ phase shifter coverage with 5 ̊ per step 15 dB attenuation range with 0.5 dB per step T/R half duplex operation Software control via RJ-45 Ethernet or SPI interface CE/FCC/UKCA/ICES certified
Reference: UD Box 5G
RF: 24-44 GHz; IF: 0.01- 14 GHz Built-in LO with 24-44 GHz control range Highly precise OCXO reference clock 10 MHz output and 100 MHz input/output synchronization Bi-directional circuit topology TMYTEK-made accessories, i.e. amplifier, band-pass filter (optional) CE/FCC/UKCA/ICES certified
Reference: UD Board
• RF: 23 to 30 GHz • IF: 2.6 to 5.8 GHz • External LO Input Range: 4.75 to 6.75 GHz • On-chip x4 LO Frequency Multiplier • Up Conversion Gain: 11.5 dB (typical) • Down Conversion Gain: 7 dB (typical) • Tiny and Compact
Reference: BBoard
Affordable mmWave beamformer 5G FR2 supported: 26.5-29.5 GHz and 37.0-40.0 GHz 360 deg phase range with 5.625 deg resolution (6-bit) 15 dB gain range with 0.5 dB resolution 4 bi-directional RF channels with PAs, LNAs, PSs, and TR switches GUI and API ready
• RF: 6 to 20 GHz
• IF: 1 to 10 GHz
• Adjustable LO frequency: 6 to 20 GHz
• Conversion Loss: 10 dB (typical)
• Integrated with an internal LO source
• Simultaneously up and down conversion for each channel
• Ideal for WiFi-6/7, UWB, LEO applications
