• RF: 23 to 30 GHz
• IF: 2.6 to 5.8 GHz
• External LO Input Range: 4.75 to 6.75 GHz
• On-chip x4 LO Frequency Multiplier
• Up Conversion Gain: 11.5 dB (typical)
• Down Conversion Gain: 7 dB (typical)
• Tiny and Compact
| Model | UD Box-D/-S | UDM-0620 | UDBoard |
|---|---|---|---|
| RF Frequency | 24 – 44 GHz | 6 - 20 GHz | 23 - 30 GHz |
| LO Frequency | 24 – 44 GHz | 6 - 20 GHz | 4.75 - 6.75 GHz |
| IF Frequency | 0.1 – 14 GHz | 1 - 10 GHz | 2.6 - 5.8 GHz |
| Build-in LO | Yes | Yes | No |
| Tx/Rx Channel | Bi-directional | Bi-directional | Unidirectional |
| Conversion loss | 13 dB typ. | 10 dB typ. | Tx 11.5 dB Gain typ. Rx 8 dB Gain typ. |
| Control | Ethernet | USB | Tx/ Rx Slide Switch |
| 10 MHz Sync | No | Yes | No |
| 100 MHz Sync | Yes | No | No |
| Reference clock | OCXO | OCXO | No |

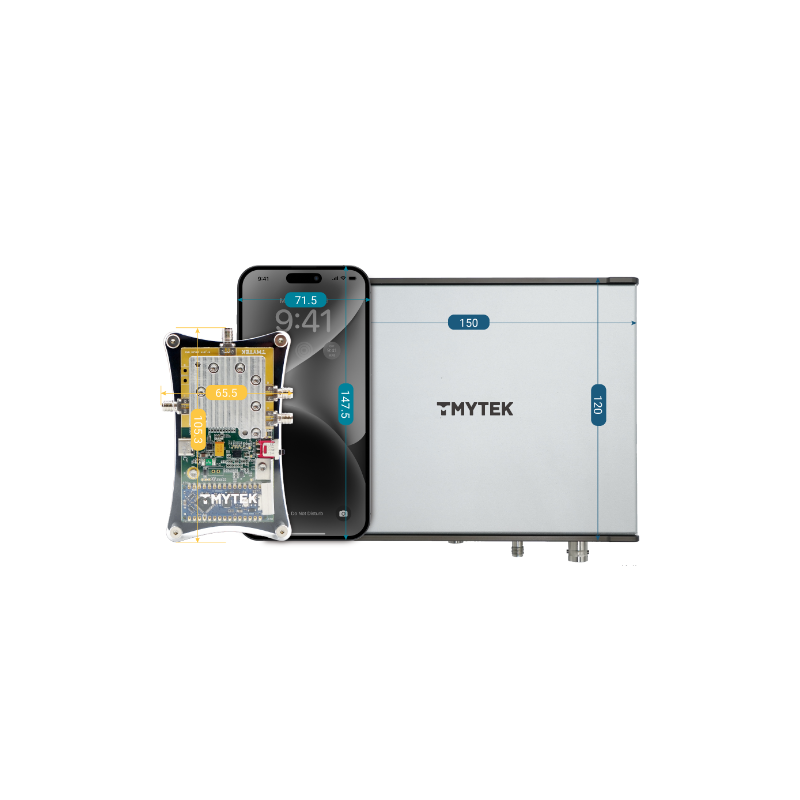

| Dimensions | 150 x 120 x 65 mm | 222 x 177 x 51 mm | 105.3 x 65.6 x 23.4 mm |
Experience the future of wireless education with the NextGen Wireless Education Solution—a comprehensive platform tailored for NextGen wireless course instruction. This innovative solution combines the TMYTEK mmWave Developer Kit and the UD Kit, delivering an unparalleled hands-on experience into beamforming, beam management, and mmWave propagation.
Enriching this exploration, the UD Kit, equipped with a frequency converter, LO, and USRP, perfectly complements the mmWave Developer Kit, providing essential tools to delve deeper into these advanced concepts.
Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
Reference: BBox One 5G
Operating Frequency: 26.5 to 29.5 GHz Antenna designed for 5G n257 band Up to 16 controllable RF channels, each channel providing: 360 ̊ phase shifter coverage with 5 ̊ per step 15 dB attenuation range with 0.5 dB per step T/R half duplex operation Software control via RJ-45 Ethernet or SPI interface CE/FCC/UKCA/ICES certified
Reference: BBoard
Affordable mmWave beamformer 5G FR2 supported: 26.5-29.5 GHz and 37.0-40.0 GHz 360 deg phase range with 5.625 deg resolution (6-bit) 15 dB gain range with 0.5 dB resolution 4 bi-directional RF channels with PAs, LNAs, PSs, and TR switches GUI and API ready
Reference: UD Box 5G
RF: 24-44 GHz; IF: 0.01- 14 GHz Built-in LO with 24-44 GHz control range Highly precise OCXO reference clock 10 MHz output and 100 MHz input/output synchronization Bi-directional circuit topology TMYTEK-made accessories, i.e. amplifier, band-pass filter (optional) CE/FCC/UKCA/ICES certified
Reference: mmWave Kits
For Developers Ready-to-use complete mmWave communication testbed suite Flexible array antenna test platform Time-saving theories to prototyping For Education Step-by-step courses in beamforming technologies Affordable and flexible experiment cases
Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
• RF: 23 to 30 GHz
• IF: 2.6 to 5.8 GHz
• External LO Input Range: 4.75 to 6.75 GHz
• On-chip x4 LO Frequency Multiplier
• Up Conversion Gain: 11.5 dB (typical)
• Down Conversion Gain: 7 dB (typical)
• Tiny and Compact
