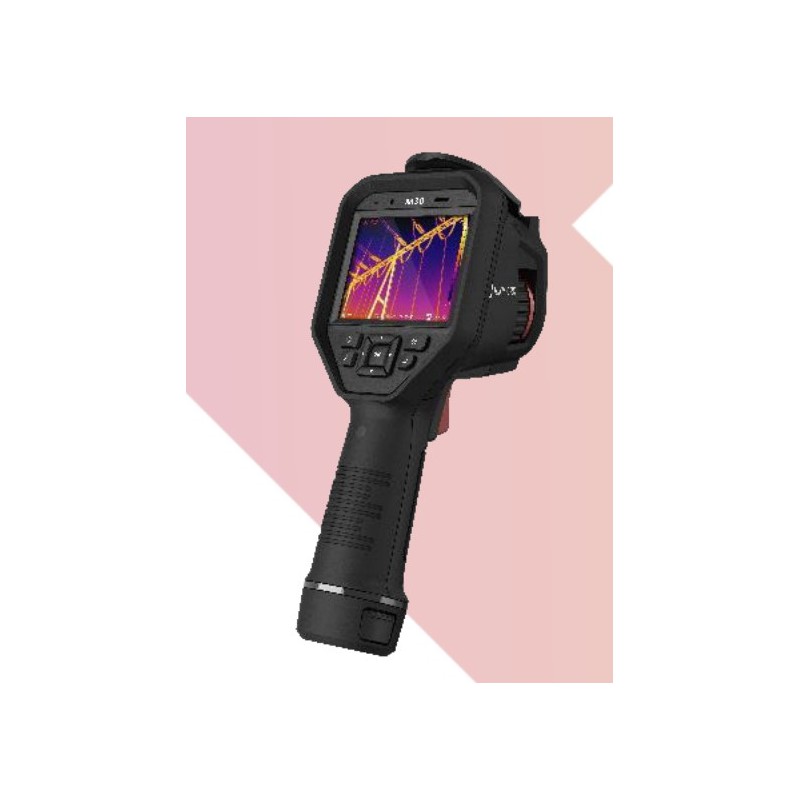

HIKMicro Thermal Camera - M31 - 384x288 pixels, 50Hz, -20~650℃
  • HIKMicro Thermal Camera - M31 - 384x288 pixels, 50Hz, -20~650℃

HIKMicro Thermal Camera - M31 - 384x288 pixels, 50Hz, -20~650℃

M31
HIKMICRO

HIKMICRO M31 Handheld Thermography Camera is an enhanced version of its predecessor, the M30.

384x288 pixels, Pixel pitch 17 μm, NETD<30mk, 50Hz, 6.4mm lens, 8X digital zoom, Thermographic accuracy (Measurement range): ±2℃/±2% (-20~650℃) , Operation temperature: -10~50 °C

$3,465.00
Quantity
Buy now, get it in two-week

Description

Key Features

● High sensitivity thermal module with 384 × 288 resolution
● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
● Supports multiple palettes
● High quality optical module with 8 MP resolution
● Bi-spectrum image fusion, picture-in-picture preview
● Wide temperature measurement range: -20°C to 650°C
● High temperature measurement accuracy: Up to ± 2°C, ± 2%
● 640 × 480 resolution 3.5'' LCD touch display
● Long-distance laser light supplement for thermography targets
● LED light supplement makes the device a torch in required scenarios
● Supports 1.0x to 8.0x continuous digital zoom

Specification

  • Infrared Image
  • IR Resolution 384 × 288 (110, 592 pixels)
  • SuperIR 768 × 576 (442,368 pixels)
  • NETD < 30 mK (@ 25°C, F# = 1.0)
  • Image Frequency 50 Hz
  • Detector Pitch 17 μm
  • Spectral Range 7.5 μm to 14 μm
  • Focal Length 6.4 mm
  • F-number F1.0
  • Field of View (FOV) 41.1° (H) × 30.5° (V)
  • Spatial Resolution (IFOV) 1.87 mrad
  • Min. Focus Distance 0.1 m (0.32 ft)
  • Focus Mode Manual Focus

Image Display

  • Visual Camera : 3264 × 2448 (8 MP)
  • Display : 640 × 480 Resolution, 3.5" LCD Touch Screen
  • Screen Brightness : Manual
  • Digital Zoom : 1.0x to 8.0x continuous
  • Color Palettes : White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
  • Focus Mode Palette : Above/Below/Interval
  • Color Alarm : Above/Below/Interval/Insulation
  • Image Modes : Thermal/Visual/Fusion/PIP/Blending

Measurement and Analysis

  • Object Temperature Range -20°C to 650°C (-4°F to 1202°F)
  • Accuracy Max. (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
  • Measurement Tools Center Spot, Hot Spot, Cold Spot
  • User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
  • Level and Span Mode Auto/Manual/1-Tap Touch-screen

Data Storage and Communication

  • Storage Media Removable 64 GB Micro SD Card
  • Image Storage Capacity Approx. 100,000 Images
  • Annotations Voice note: max. 60 seconds;
  • Text note: max. 200 characters
  • Video Storage Capacity Approx. 300 hours
  • Video File Format MP4 video and radiometric video

General

  • Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
  • Bluetooth Bluetooth 4.2
  • USB Interface USB Type-C
  • LED Light Yes
  • Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
  • Battery Type Interchangeable and rechargeable Li-ion battery
  • Battery Operating Time Approx. 4 hours
  • Battery Charging Time Approx. 4 hours fully charged
  • Protection Level IP54
  • Drop Test Height 2 m (6.56 ft)
  • Safety IEC 61010-1
  • EMC EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3
  • Vibration 1 g, IEC 60068-2-6
  • Shock 15 g, IEC 60068-2-27
  • Working Temperature Range -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
  • Relative Humidity < 95% non-condensing
  • Weight Approx. 720 g (1.59 lb)
  • Dimension 244 mm × 100 mm × 104 mm (9.6" × 3.9" × 4.1")
  • Tripod Mounting UNC ¼”-20

Dimension

  • Unit: mm [inch]244mm (9.6'') 100mm (3.94'') 104mm (4.1'')

Connect to Android/ISO HIKMICRO Viewer App

Connect to Windows Computer, not supporting MAC PC

Product Details
M31

Data sheet

Thermal Camera Application
Building Inspection
