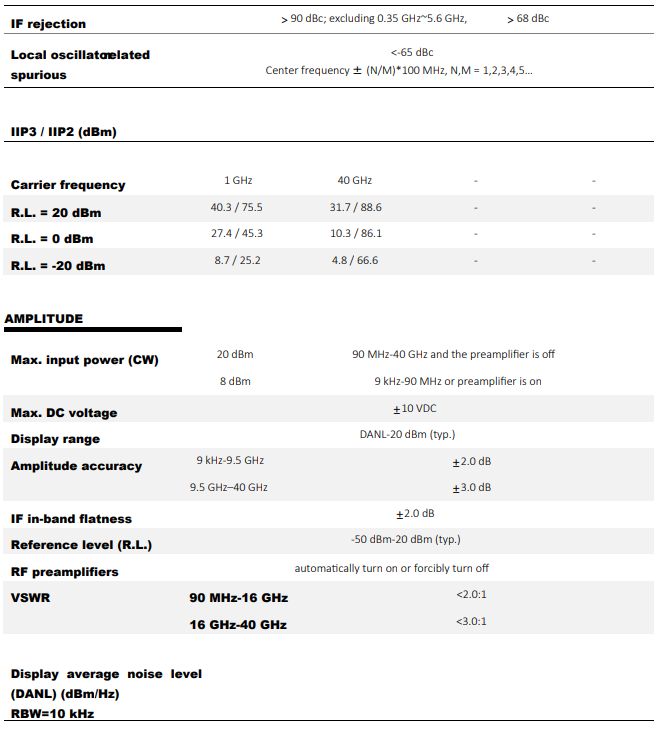

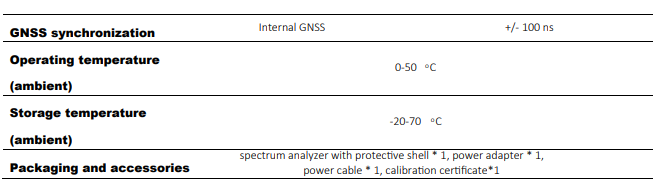

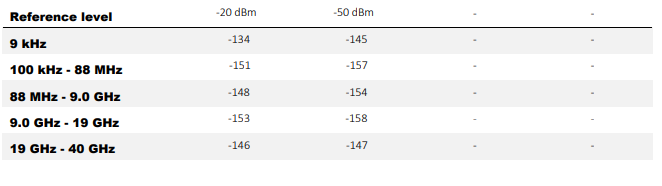

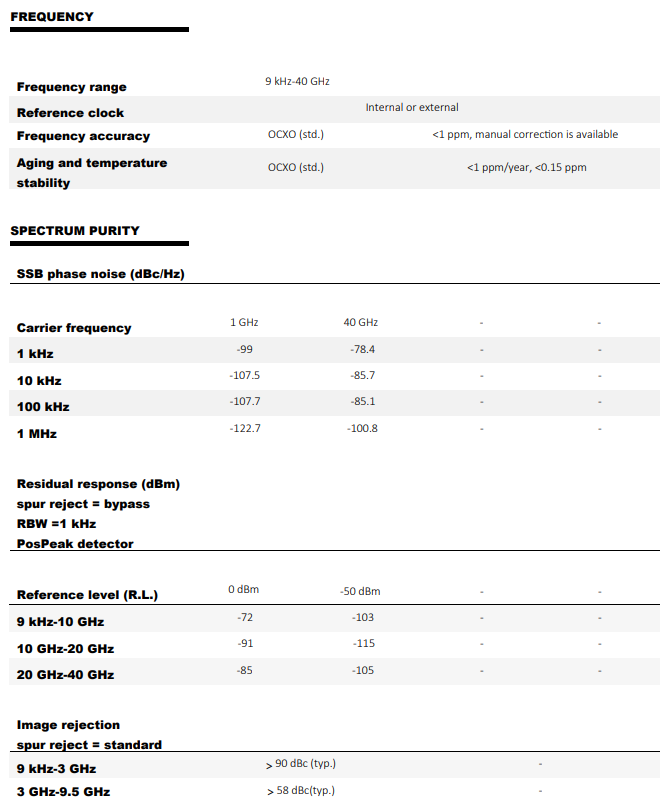

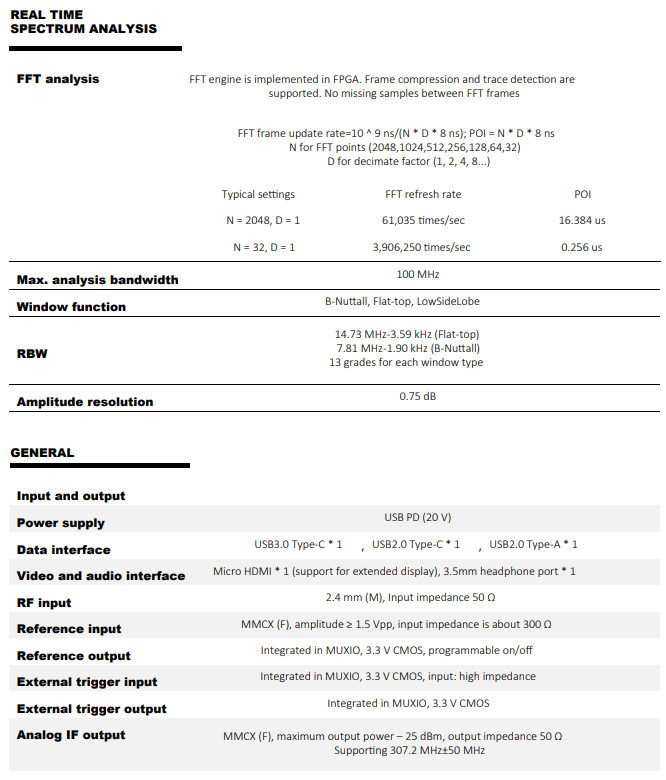

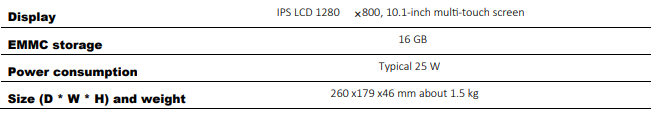

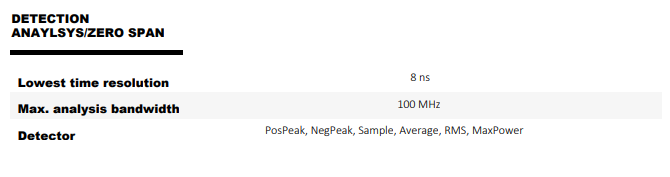

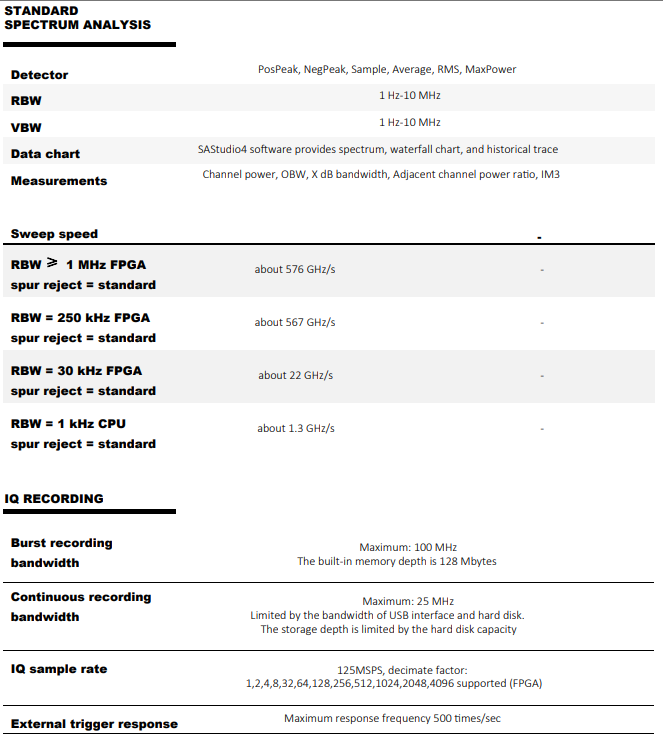

XGY YSA-P400 Handheld Real-time Spectrum Analyzer revolutionizes RF spectrum analysis with its cutting-edge SHR architecture and unparalleled frequency range of 9 kHz to 40 GHz. Featuring a remarkable dynamic range of -161 dBm/Hz and an analytical bandwidth of 100 MHz, it guarantees precise and comprehensive signal detection. Its ultra-fast sweep speed of over 500 GHz/s and exceptional phase noise performance at -107 dBc/Hz ensure reliable and accurate measurements, even in the most demanding environments
Main Applications
Brand: Ceyear
Frequency range: 9kHz to 45GHz, expandable to 750GHz with Ceyear external THz mixer. Excellent performance with DANL of -156dBm@1Ghz, typical -167dBn. Full digital IF technology, maximum 550MHz vector analysis bandwidth Comprehensive analysis funciton: Analog demod, Digital demodulation, Radar signal analysis and 4G/5G signal analysis Powerful RF signal...
Reference: APV-AVI-STAR-3000
Brand: STAR
STAR-3000 is a portable tester for CNS LRUs, and it is designed using Software-Radio architecture. It can be used as a standalone tester or integrated into Automatic Test System with ease to use a graphical user interface. It is only 5kg in weight and 300mm x 227mm x 93mm in size. The STAR-3000 is suitable in all application scenarios, including R&D,...
Reference: SSA3021X Plus
Brand: Siglent
Frequency range: 9 kHz to 2.1GHz. Free preamplifier, Sensitivity: -161dBm/Hz 100kHz~2.1GHz free tracking generator included, support component frequency response test. Support EMI, Digital demodulation, Analog demodulation with option
Reference: XSA815-TG
Brand: OWON
Frequency range:9kHz~1.5GHz Sensitivity: -160dBm Full digital IF processing technology, Total amplitude accuracy: 0.7dB EMI Pre-compliance test kit Tracking Generator
Reference: 4024G
Brand: Ceyear
Key Features: Maximum frequency range: from 9kHz to 44GHz, series mode cover 9GHz, 20GHz, 26.5GHz, 34GHz. Internal full band preamplifier, Low displayed average noise level: -163dBm@1Hz RBW(typical) High sweep speed: for 1GHz span, shortest sweep time <20ms Support analog modulation signal demodulation and signal strength test Working temperature...
Reference: SSA3050X-R
Brand: Siglent
Key Features: Frequency range from 9 kHz to 5.0GHz 40 MHz Real Time Analysis Bandwidth Option, Minimum Signal Duration with 100% POI, 7.2 us Internal preamplifier standard, -161 dBm/Hz Displayed average noise level Free Tracking generator (TG) included, conduct S11, S21 parameter test of Network analyzer Support EMC test with option EMI, work with...
Reference: SSA3075X-R
Brand: Siglent
Key Features: Frequency range from 9 kHz to 7.5GHz 40 MHz Real Time Analysis Bandwidth Option, Minimum Signal Duration with 100% POI, 7.2 us Internal preamplifier standard, -161 dBm/Hz Displayed average noise level Free Tracking generator (TG) included, conduct S11, S21 parameter test of Network analyzer Support EMC test with option EMI, work with...
Reference: SSA3015X Plus
Brand: Siglent
Spectrum Analyzer Frequency Range from 9 kHz up to 1.5 GHz / 2.1 GHz / 3.2 GHz / 7.5GHz -165 dBm/Hz Displayed Average Noise Level (Typ.) -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.) Level Measurement Uncertainty < 0.7 dB (Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Preamplifier Standard Tracking Generator (Included) Analog and Digital Signal...
Reference: SSA3032X-R
Brand: Siglent
Key Features: Frequency range from 9 kHz to 3.2GHz 40 MHz Real Time Analysis Bandwidth Option, Minimum Signal Duration with 100% POI, 7.2 us Internal preamplifier standard, -161 dBm/Hz Displayed average noise level Free Tracking generator (TG) included, conduct S11, S21 parameter test of Network analyzer Support EMC test with option EMI, work with...
Reference: XSA810-TG
Brand: OWON
Frequency range:9kHz~1GHz Sensitivity: -160dBm Full digital IF processing technology, Total amplitude accuracy: 0.7dB EMI Pre-compliance test kit Tracking Generator
Reference: N9000B
Brand: Keysight
Frequency range: 9 kHz to 3.0, 7.5, 13.6, or 26.5 GHz Analysis bandwidth: 25 MHz Displayed average noise level: -163 dBm at 1 GHz with preamplifier on Phase noise: -110 dBc/Hz at 1 GHz and 10 kHz offset Built-in tracking generator: Up to 6 GHz Connectivity: USB 2.0, LAN, GPIB, and LXI Class C Call for Price. Contact AppVision Australia. N9000B Click a...
Reference: SSA5085A
Brand: Siglent
Key Features: Spectrum Analyzer Frequency Range from 9 kHz up to 26.5 GHz -165 dBm/Hz Displayed Average Noise Level(Typ.) -105 dBc/Hz@1 GHz,10kHz offset SSB Phase Noise(Typ.) 25 MHz/40 MHz Analysis Bandwidth. 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT. Channel power, ACPR, OBW, Harmonic, TOI measurement etc. Analog...
Reference: SSA3032X-Plus-Suit
Brand: Siglent
Frequency range from 9 kHz to 3.2GHz Internal preamplifier standard, -161 dBm/Hz Displayed average noise level Tracking generator (TG) included at no charge, easy for device frequency response test with SA -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.) 1 Hz Minimum Resolution Bandwidth (RBW) Support EMC test with option EMI, work with SRF5030T near...
Reference: SSA5083A
Brand: Siglent
Key Features: Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz -165 dBm/Hz Displayed Average Noise Level(Typ.) -105 dBc/Hz@1 GHz,10kHz offset SSB Phase Noise(Typ.) 25 MHz/40 MHz Analysis Bandwidth. 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT. Channel power, ACPR, OBW, Harmonic, TOI measurement etc. Analog...
Reference: APV USB-RT20G
Brand: AppVision
Compact USB Real-Time Spectrum Analyzer 9 kHz~20 GHz real-time spectrum analyzer Superheterodyne digital receiver architecture, 19 segments pre-selected filter 9 kHz~9 GHz typical image suppression>90 dB, typical IF rejection>90 dB 9 GHz~20 GHz typical image suppression>60 dB, typical IF rejection>90 dB 100 MHz analysis bandwidth with...
Brand: Ceyear
Frequency range: 9kHz to 26.5GHz Excellent performance with DANL of -156dBm@1Ghz, typical -167dBn. Full digital IF technology, maximum 550MHz vector analysis bandwidth Comprehensive analysis funciton: Analog demod, Digital demodulation, Radar signal analysis and 4G/5G signal analysis Powerful RF signal streaming and playback post analysis function...
