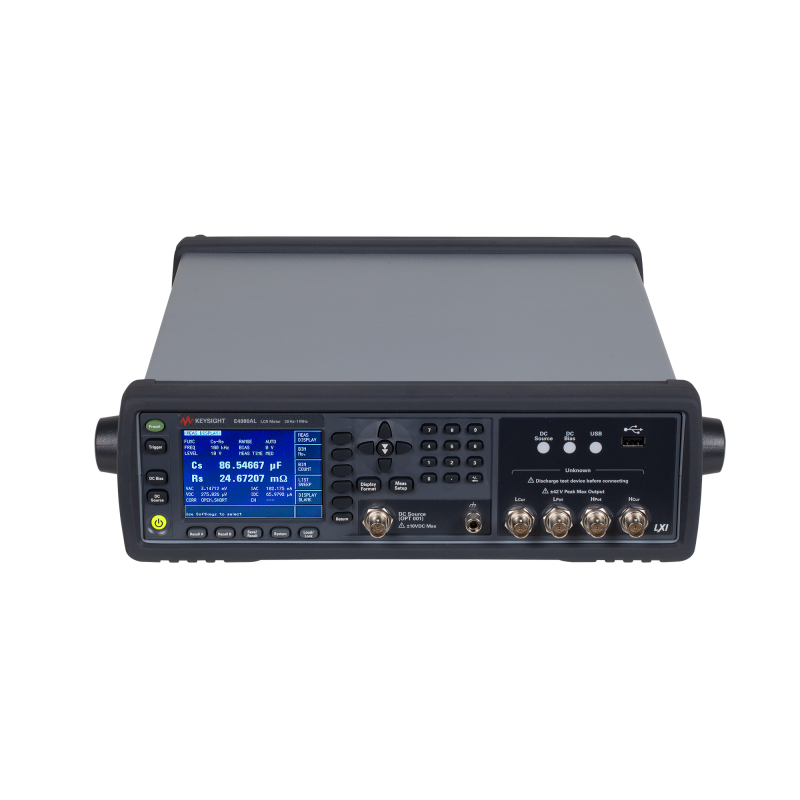

Keysight E4980AL — strict straight/front-facing product view
  • Keysight E4980AL — strict straight/front-facing product view
  • Keysight E4980AL Precision LCR Meter front-right three-quarter view
  • Keysight E4980 Series Precision LCR Meters
  • Keysight E4980 Series Precision LCR Meters

Keysight E4980 Series Precision LCR Meters

E4980-SERIES
Keysight
  • Frequency range by model: E4980A: 20 Hz to 2 MHz; E4980B: 20 Hz to 2 MHz
  • Frequency options by model: E4980AL: 20 Hz to 300 kHz (option 032)
  • Test frequency resolution: 4-digit
  • Basic impedance accuracy: 0.05%
  • Frequency upgradeability: Upgradable to 500 kHz or 1 MHz

Call for Price. Contact AppVision Australia.

E4980A E4980AL E4980B E4980BL

Click a model to email AppVision for a quote.

Model
Quantity

Description

Call for Price

Select a model and email AppVision for a quotation: E4980A (default) · E4980AL · E4980B · E4980BL

Keysight E4980 Series Precision LCR Meters

Keysight E4980 Series Precision LCR Meters provides lcr meter capabilities for impedance and component characterisation. Key parameters include frequency range by model E4980A: 20 Hz to 2 MHz; E4980B: 20 Hz to 2 MHz and frequency options by model E4980AL: 20 Hz to 300 kHz (option 032); 20 Hz to 500 kHz (option 052); 20 Hz to 1 MHz (option 102); E4980BL: 20 Hz to 300 kHz / 500 kHz / 1 MHz.

Key capabilities

  • Frequency range by model: E4980A: 20 Hz to 2 MHz; E4980B: 20 Hz to 2 MHz
  • Frequency options by model: E4980AL: 20 Hz to 300 kHz (option 032); 20 Hz to 500 kHz (option 052); 20 Hz to 1 MHz (option 102); E4980BL: 20 Hz to 300 kHz / 500 kHz / 1 MHz
  • Test frequency resolution: 4-digit
  • Basic impedance accuracy: 0.05%
  • Frequency upgradeability: Upgradable to 500 kHz or 1 MHz

Model comparison — differences

Only parameters that differ between models are shown below. Shared series specifications are listed in Key capabilities above.

Model Test frequency configuration Frequency upgrade path
E4980A 20 Hz to 2 MHz 2 MHz model
E4980AL 20 Hz to 300 kHz, 500 kHz or 1 MHz Upgradeable to 500 kHz or 1 MHz
E4980B 20 Hz to 2 MHz 2 MHz model
E4980BL 20 Hz to 300 kHz, 500 kHz or 1 MHz Upgradeable to 500 kHz or 1 MHz

Official resources

Configuration, availability and support

AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact model and configuration, compatible accessories, Australian availability, lead time and quotation.
